TCCS System
›
Diagnosis & Testing
›
Trouble Code 11 Main Relay & Circuit
Trouble Code 11 Main Relay & Circuit

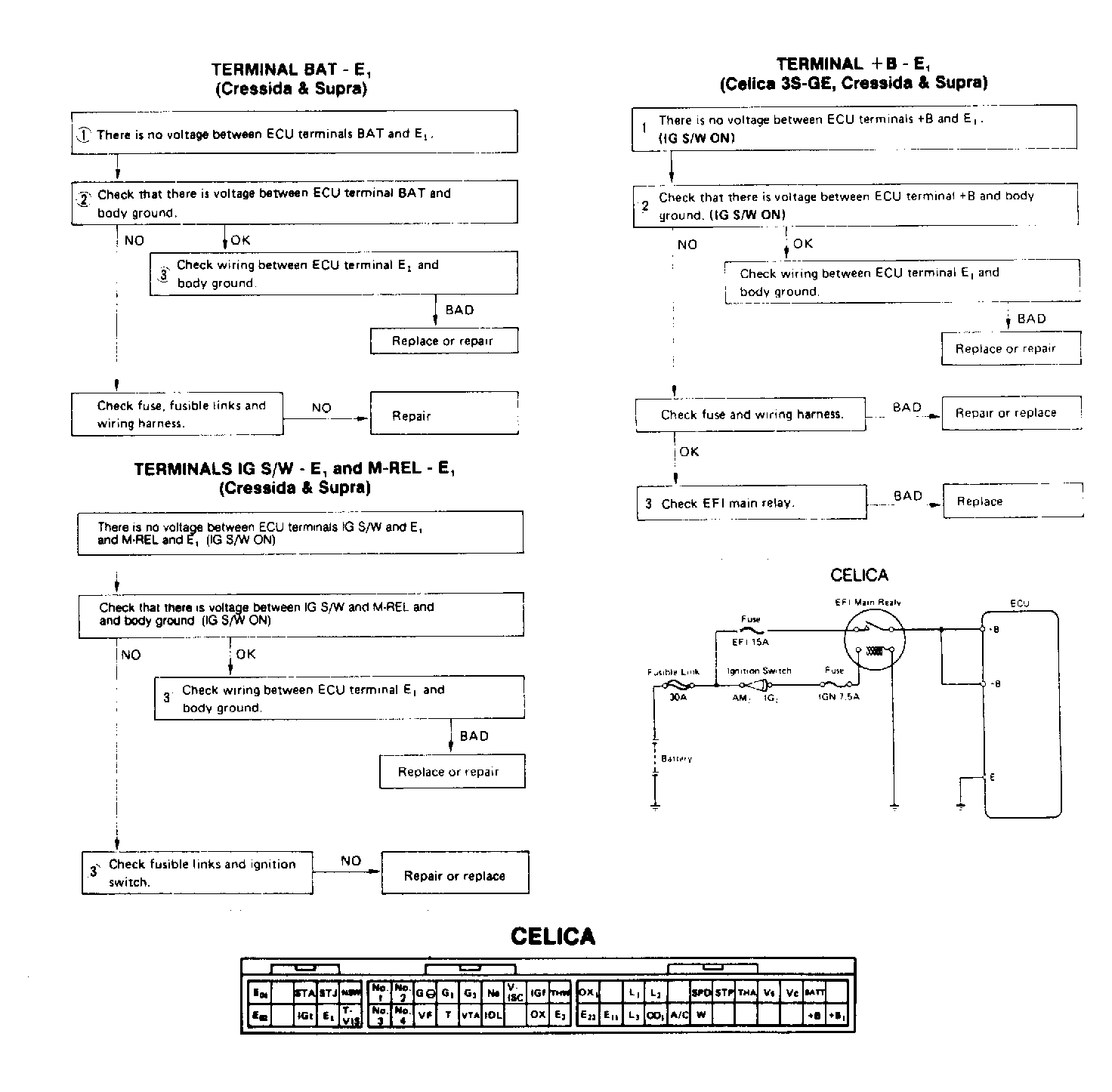

Fig 1: Terminals BAT - E1, Terminals IG S/W - E1 & M-REL - E1 & Terminals +B = E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
