Trouble Code 14 IGNITOR & Circuit
Trouble Code 14 IGNITOR & Circuit

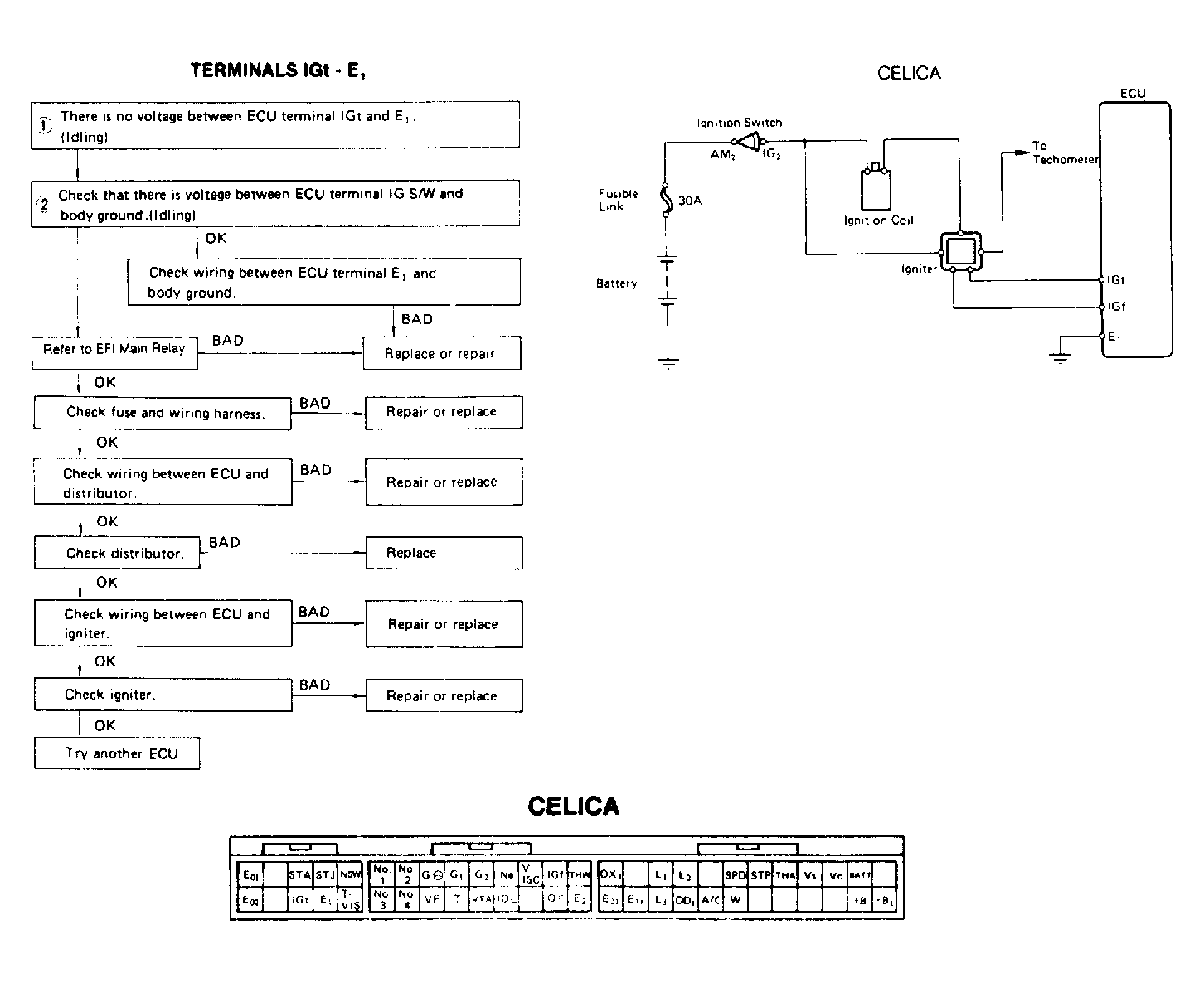

Fig 1: Celica (3S-GE) Terminals IGt & E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
