Trouble Code 21 Oxygen Sensor

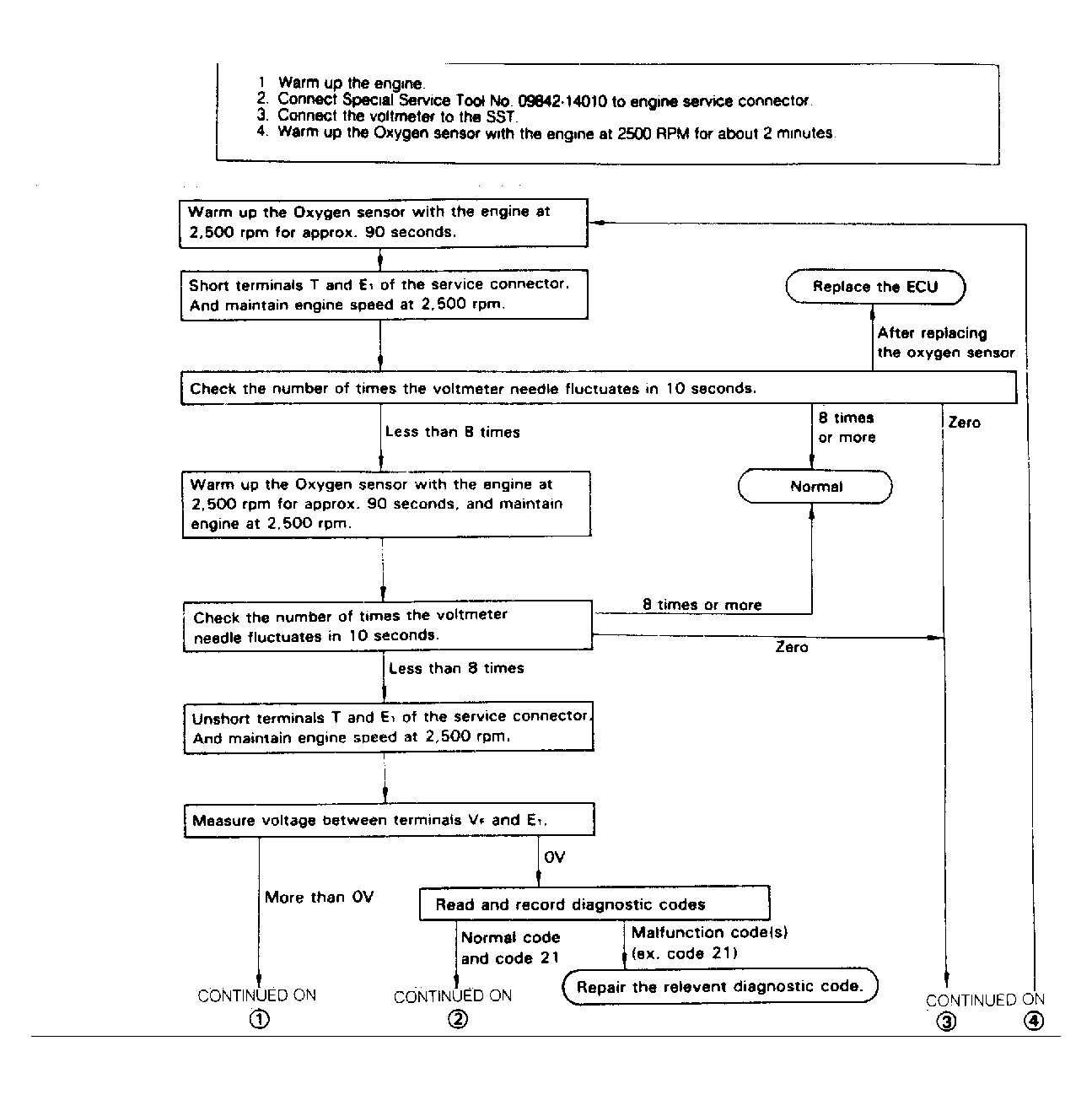

Fig 1: Celica (3S-GE) Trouble Code 21, Oxygen Sensor (1 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Celica (3S-GE) Trouble Code 21, Oxygen Sensor (2 of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
