Trouble Code 8 Intake Air Temp. Sensor & Circuit
Trouble Code 8 Intake Air Temp. Sensor & Circuit

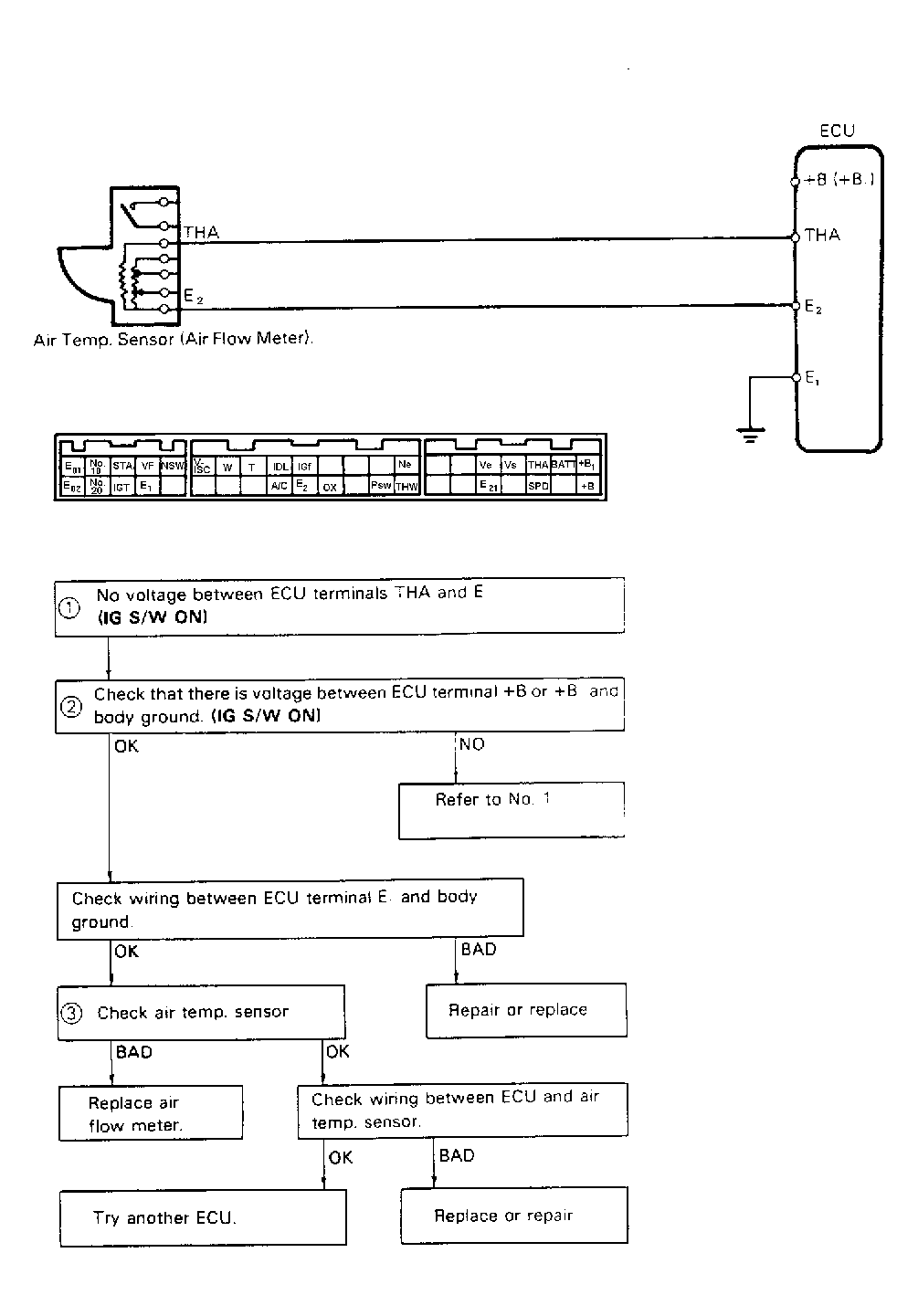

Fig 1: Terminals THA & E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
