Door Lock Control Relay

  1. Disconnect the relay. Inspect the circuits on the wire harness side. See Fig 1 and Fig 2 .
  2. Connect the positive (+) lead from the battery to terminal 3. Connect the negative (-) lead to terminal 4. Check that solenoid operates unlock direction.
  3. If circuit is correct, replace the relay.

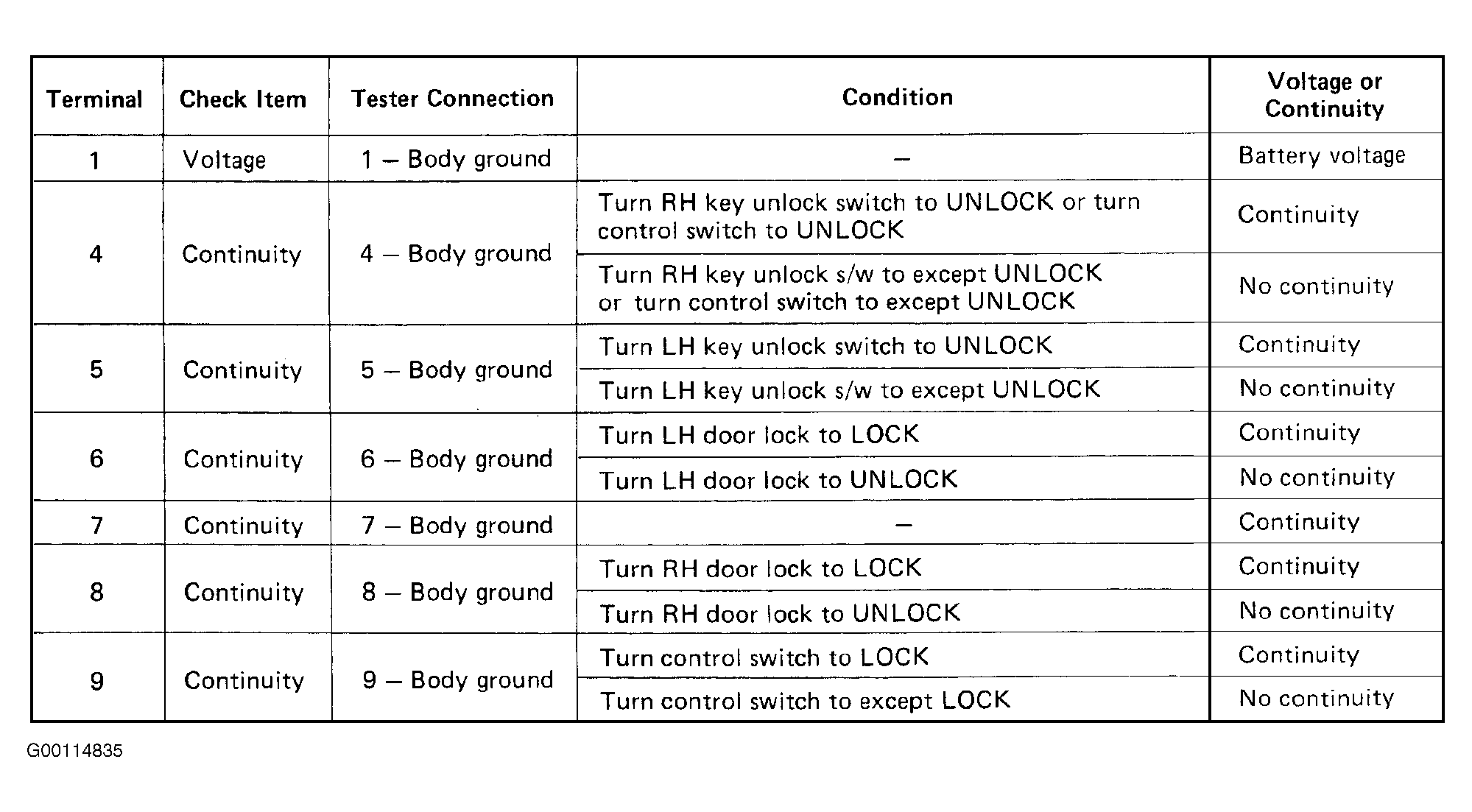

Fig 1: Testing Door Lock Control Relay Circuits
G00114835Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Door Lock Control Relay Harness Connector Terminals
G00114834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
