Wiring Diagrams

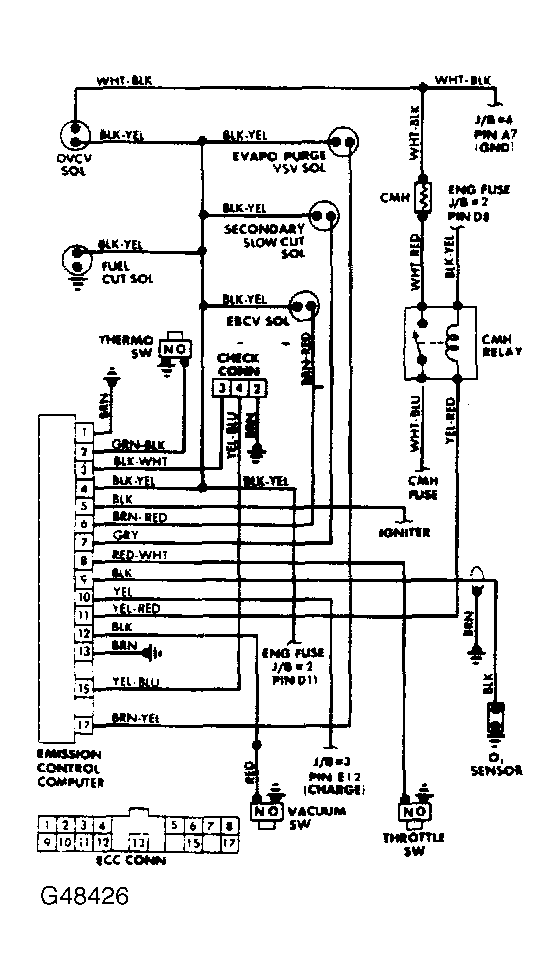

Fig 1: Corolla FWD Computer Controlled Emission System Wiring Diagram
G48426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

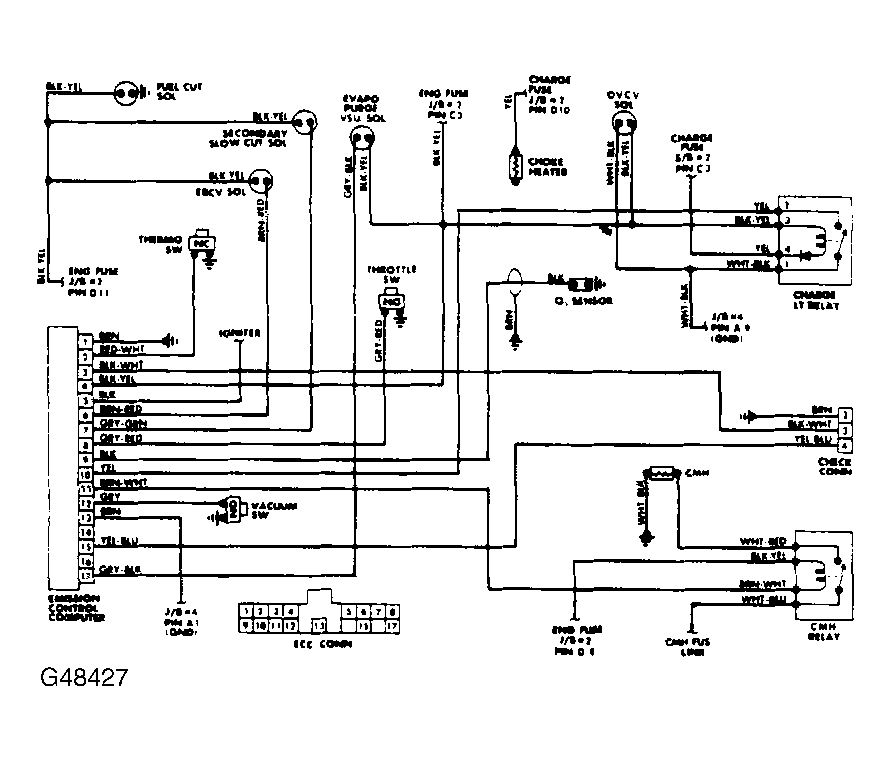

Fig 2: Corolla RWD Computer Controlled Emission System Wiring Diagram
G48427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
