TCCS System (RWD)
›
Diagnosis & Testing
›
Trouble Code 10 Main Relay & Circuit
Trouble Code 10 Main Relay & Circuit

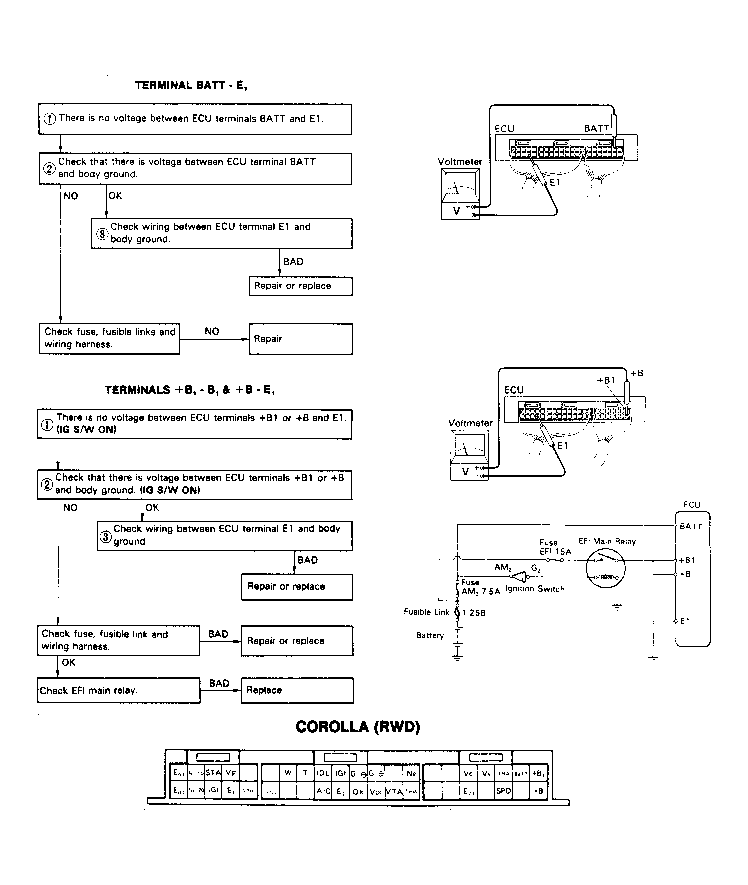

Fig 1: Terminal Batt - E1 & Terminals +B1 - B1 & +B -E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
