Wiring Diagrams

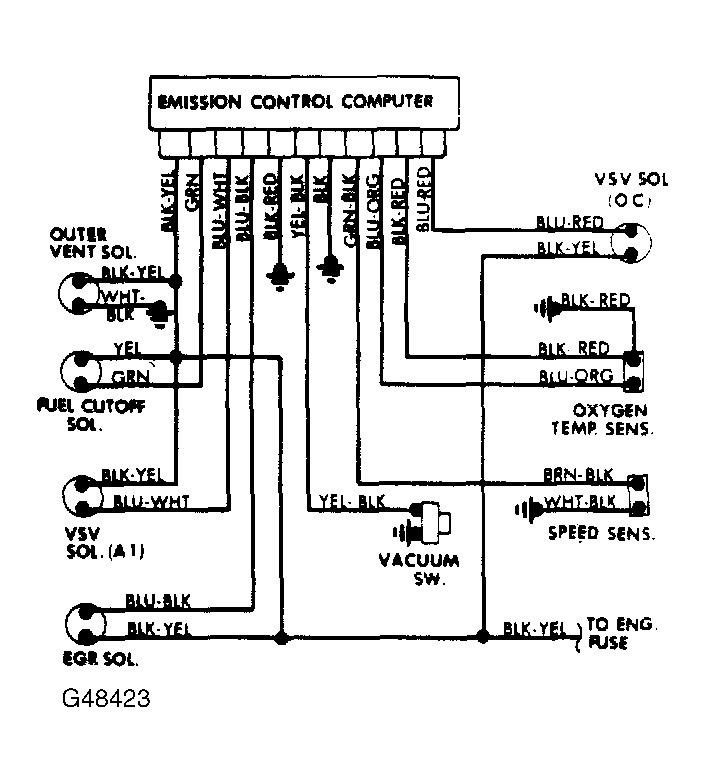

Fig 1: Land Cruiser Computer Controlled Emission System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
