Automatic Hub: Disassembly

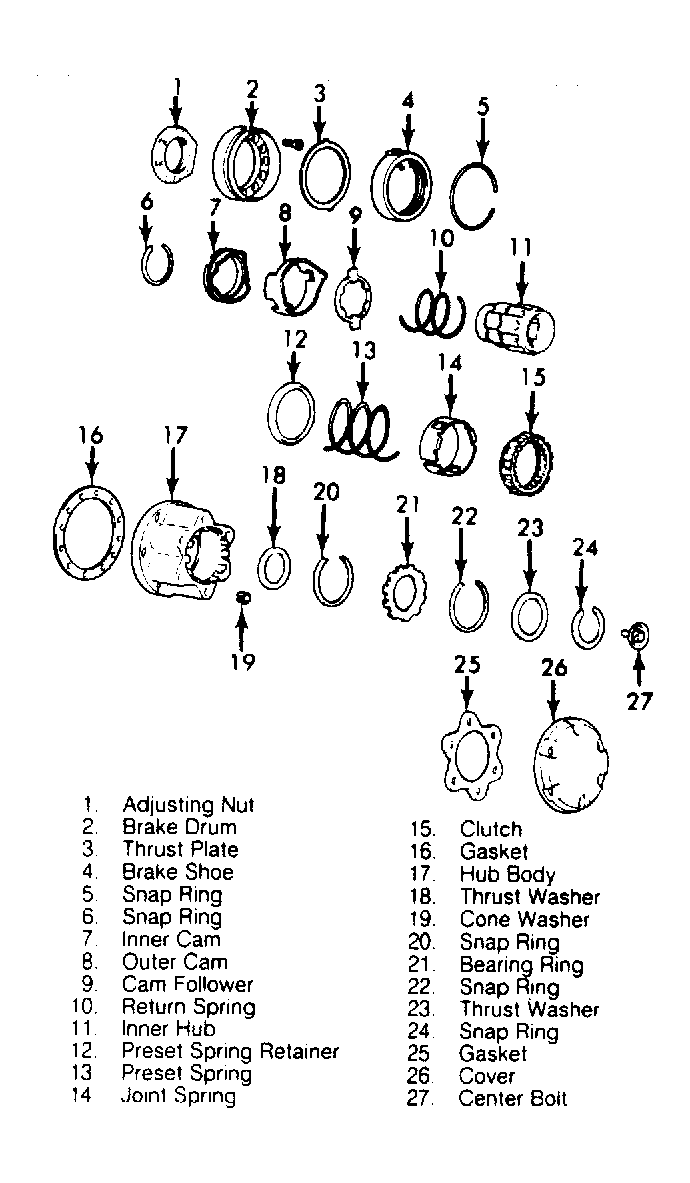

- Using snap ring pliers, remove snap ring, remove inner hub sub-assembly. See Figure.
- Remove outer cam.
- Using snap ring pliers, expand joint spring and release it from cam follower.
- Remove clutch with joint spring, preset spring and spring retainer.
