Pickup Base, 22-RTE, R151F
›
Repair and Diagnosis
›
Engine Performance
›
System
›
CCE System
›
Wiring Diagrams
Wiring Diagrams

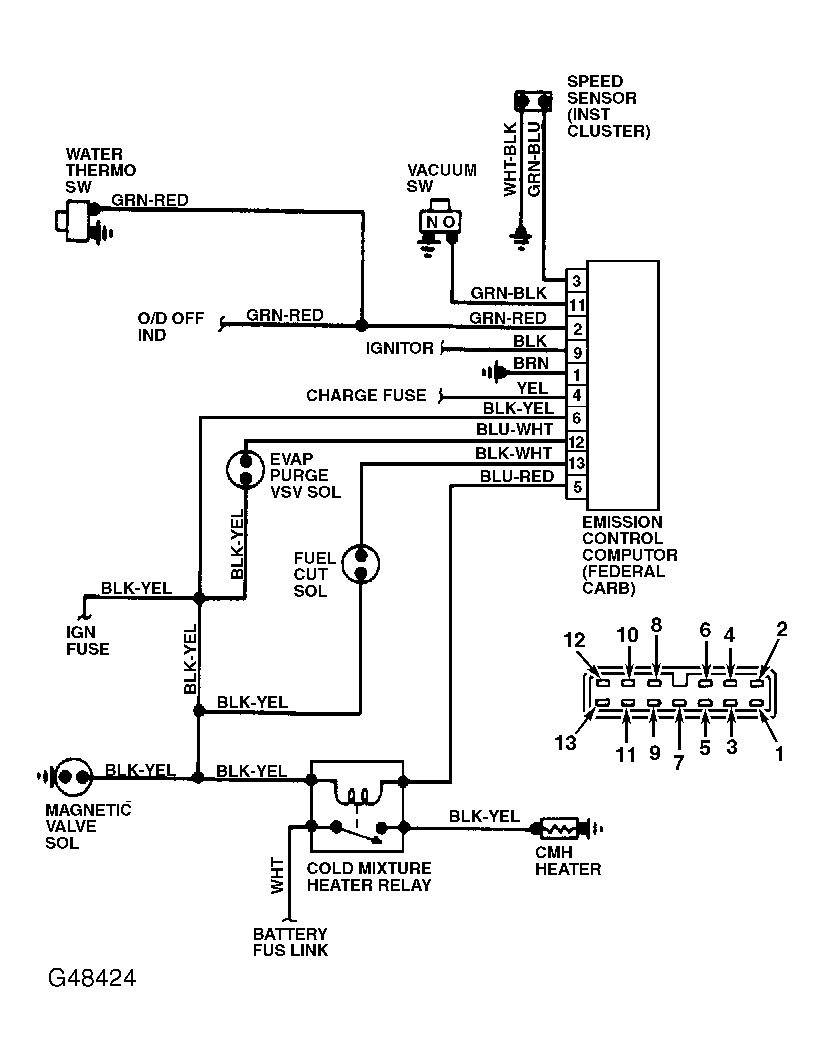

Fig 1: Pickup & 4Runner Computer Controlled Emission System Wiring Diagram (Federal)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

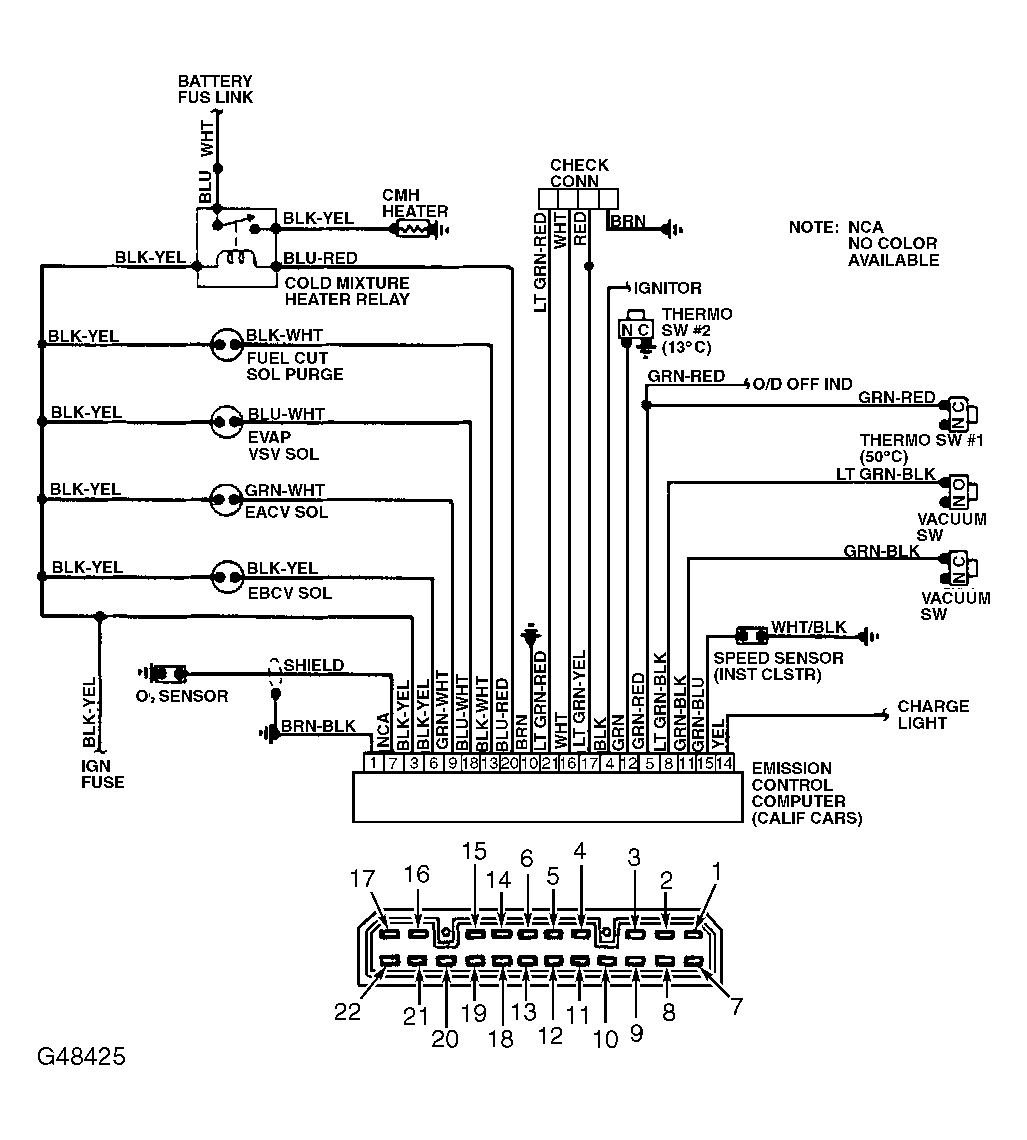

Fig 2: Pickup & 4Runner Computer Controlled Emission System Wiring Diagram (California)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
