Trouble Code 10 Ignition & Starter Circuit
Trouble Code 10 Ignition & Starter Circuit

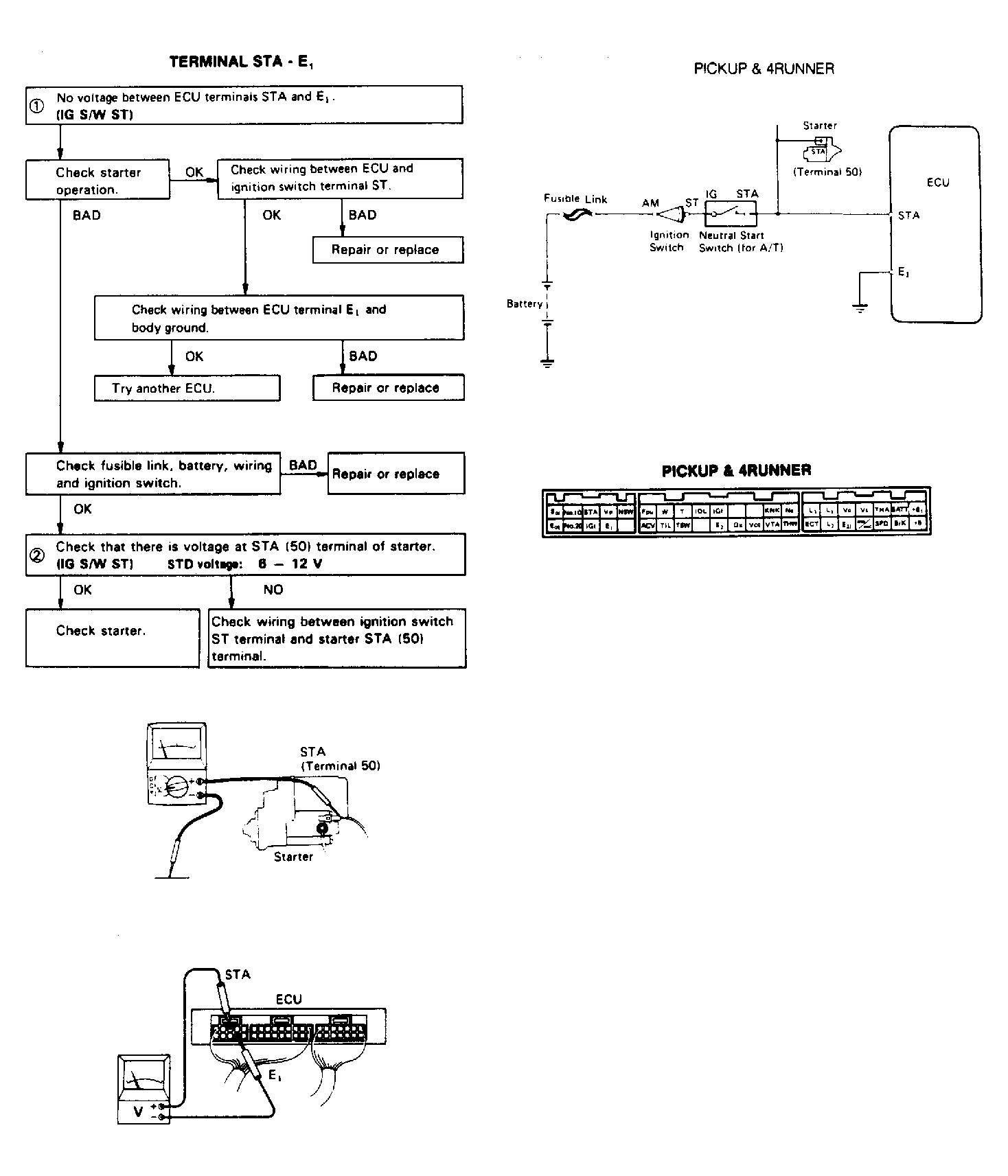

Fig 1: Terminal STA - E1
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
