Trouble Code 2 Airflow Meter & Circuit
Trouble Code 2 Airflow Meter & Circuit

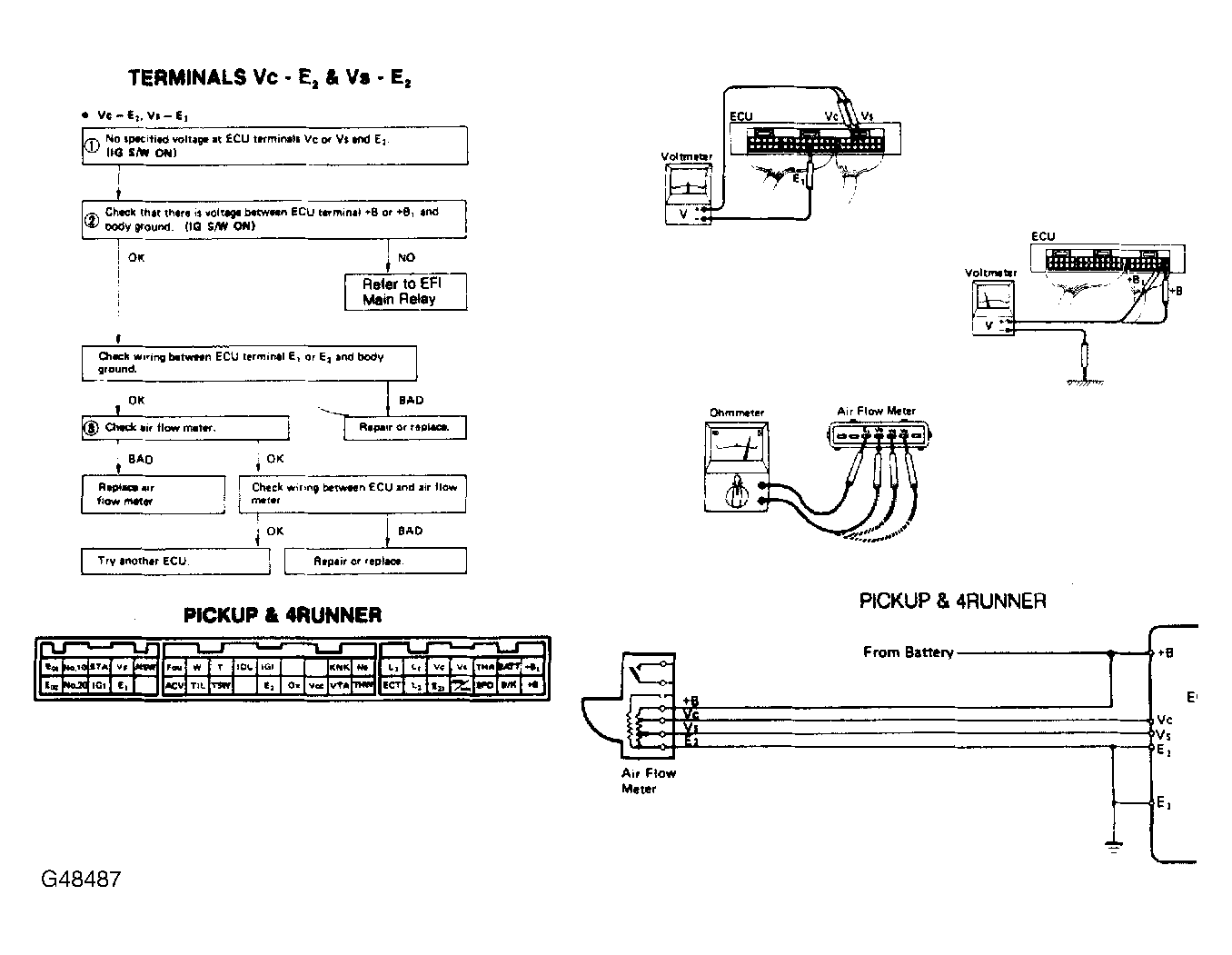

Fig 1: Terminals VC - E2 & Vs - E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
