Trouble Code 4 Coolant Temperature Sensor & Circuit
Trouble Code 4 Coolant Temperature Sensor & Circuit

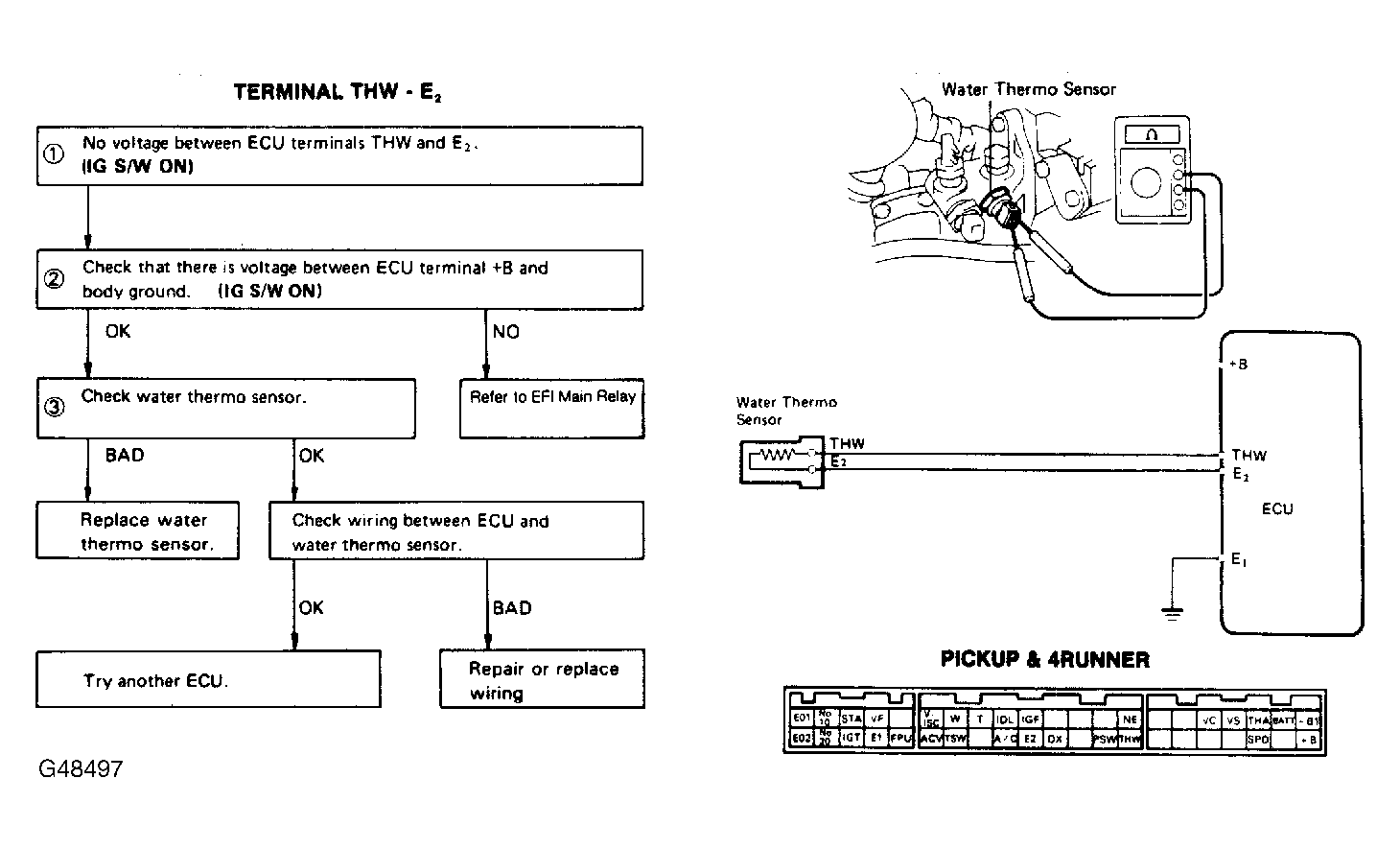

Fig 1: Terminal THW - E2
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
