Relay Continuity

  1. Check that there is continuity between terminals 1 and 3. See Fig 1.
  2. Check that there is no continuity between terminals 2 and 4.
  3. If continuity is not as specified, replace the relay.

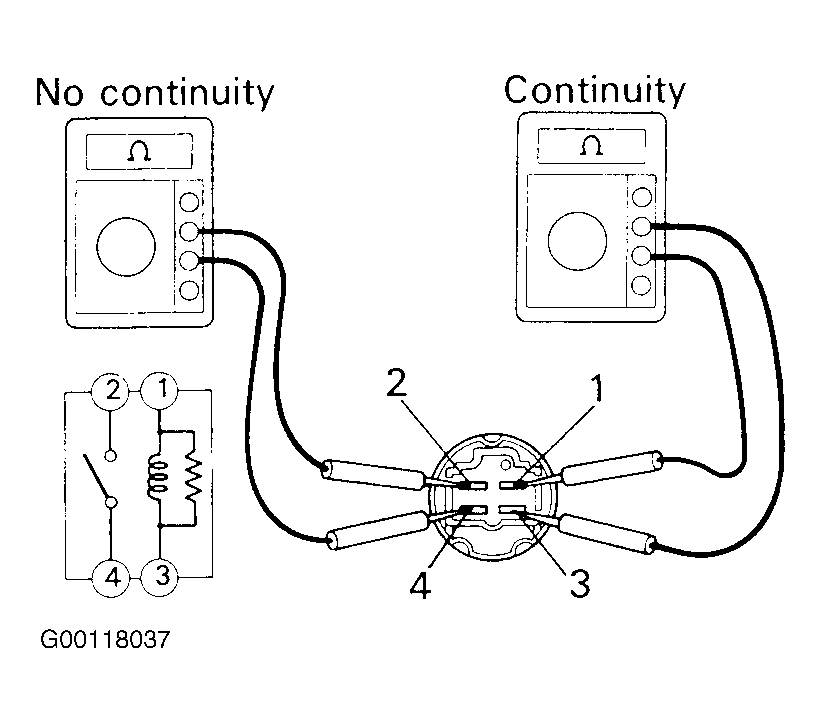

Fig 1: Testing Power Main Relay Continuity
G00118037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
