Stop Light Switch "On"

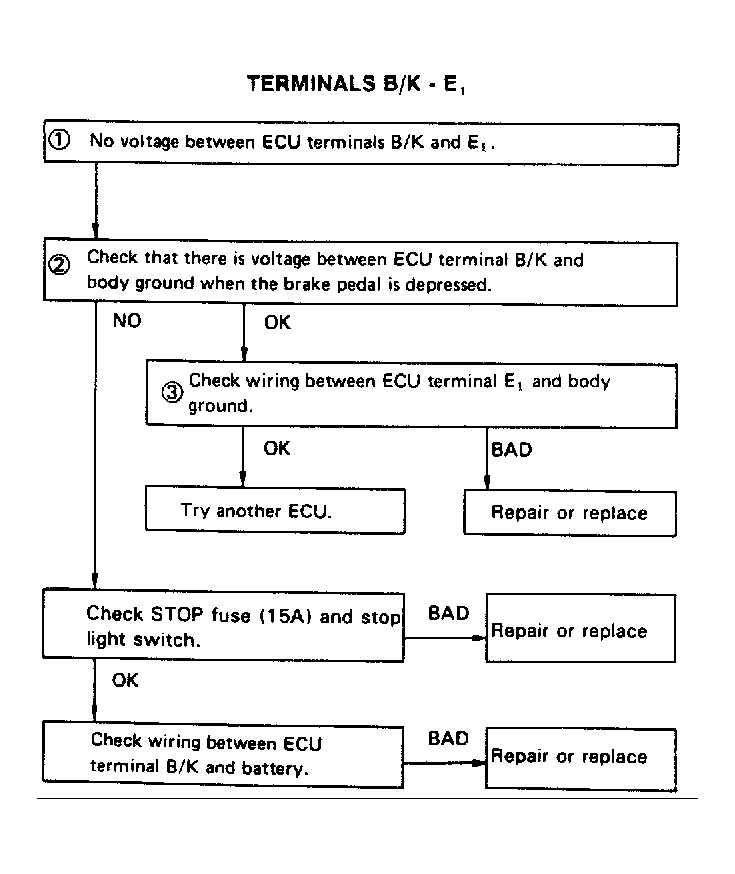

Fig 1: Terminals B/K - E(1) Part 1 of 3
G62017Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wiring Diagram Part 2 of 3
G62021Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Wiring Diagram Part 3 of 3
G62022Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
