Code 21 Oxygen Sensor
Code 21 Oxygen Sensor
Fig 1: Trouble Code 21 Oxygen Sensor (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

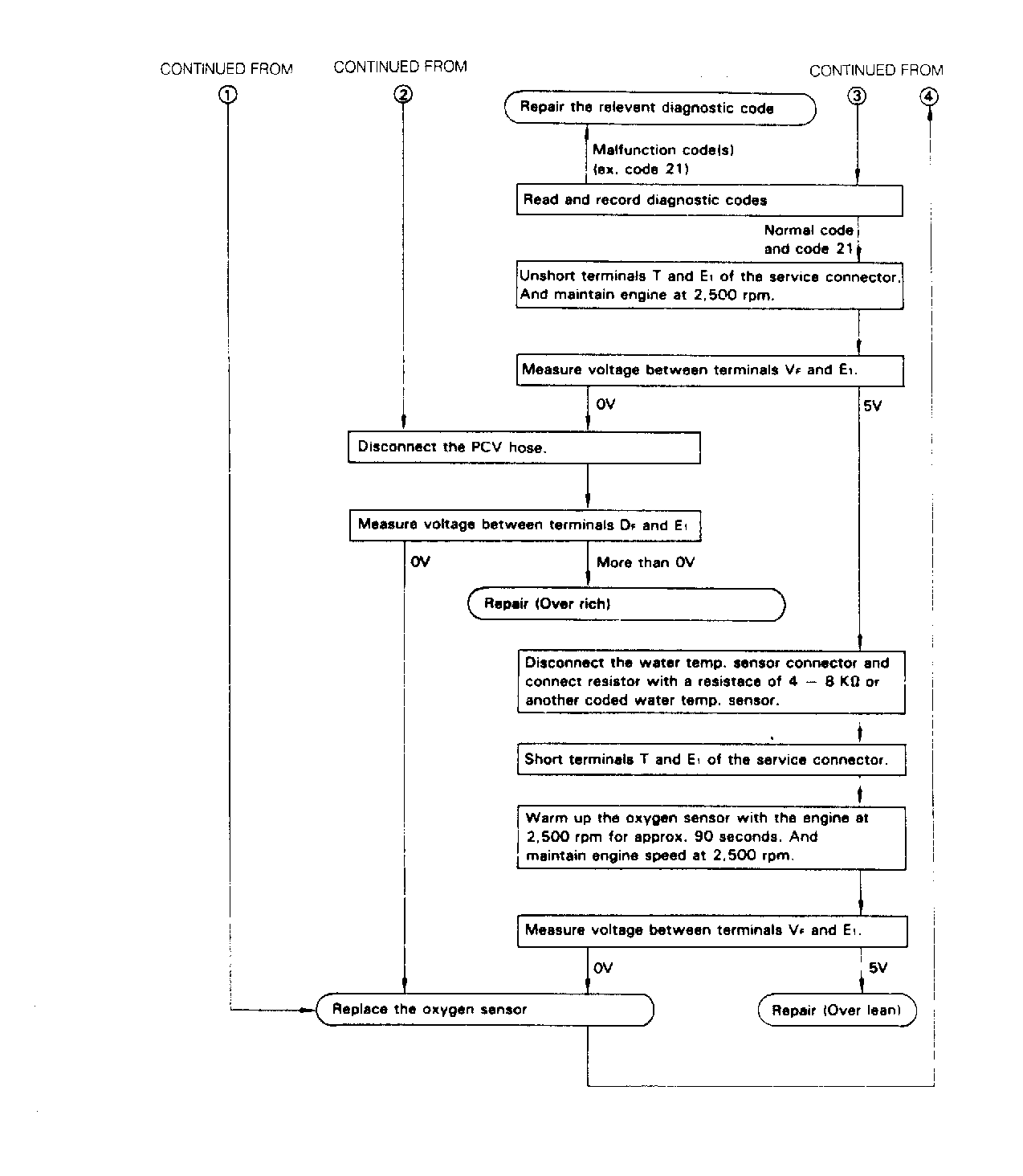

Fig 2: Trouble Code 21 Oxygen Sensor (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
