Toyota
›
1987
›
Camry Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
TCCS System
›
Diagnostic Charts
›
Injector Circuits Check
Injector Circuits Check

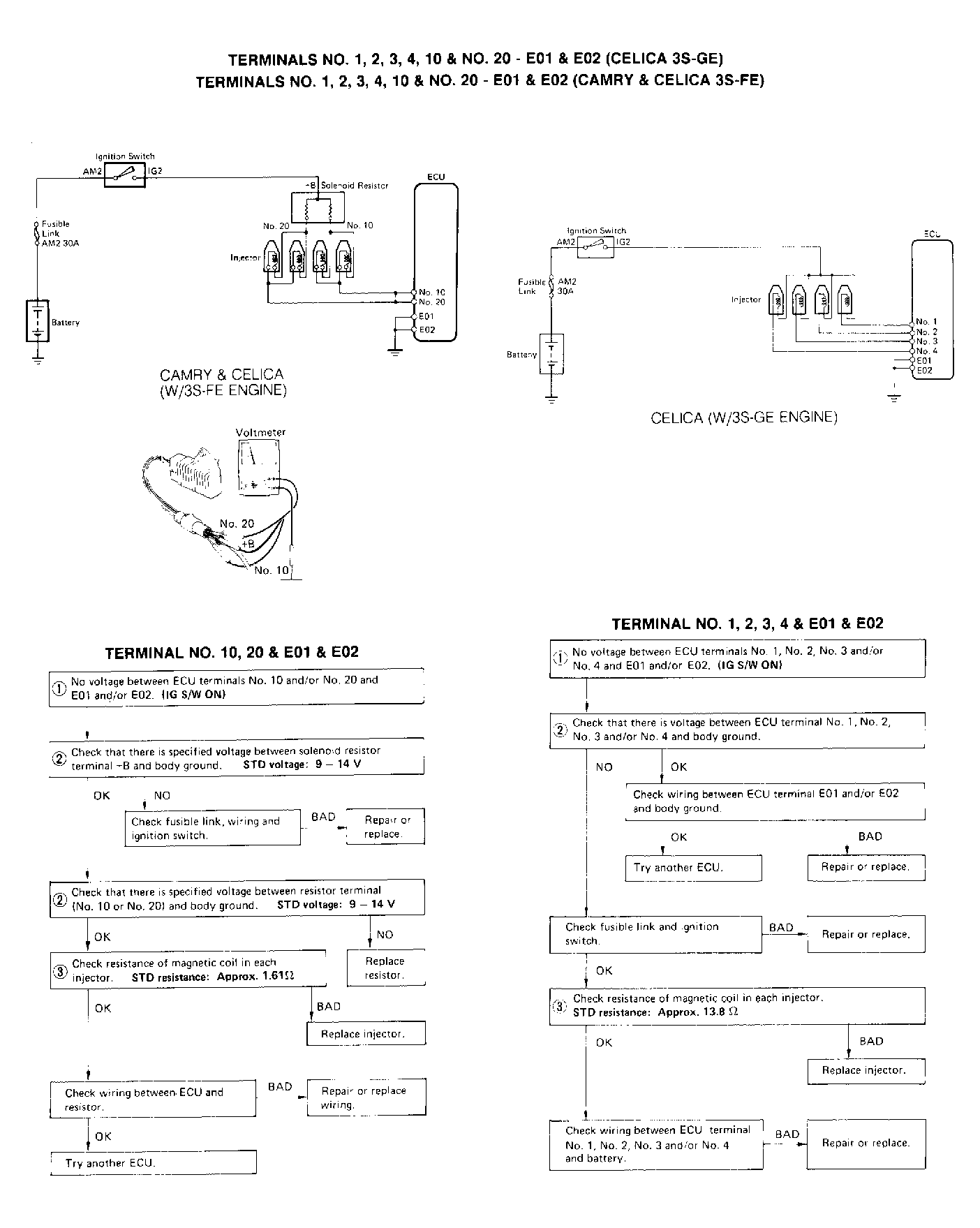

Fig 1: Injector Circuits Check (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Injector Circuits Check (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Injector Circuits Check (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
