Supra Flow Charts: Notes

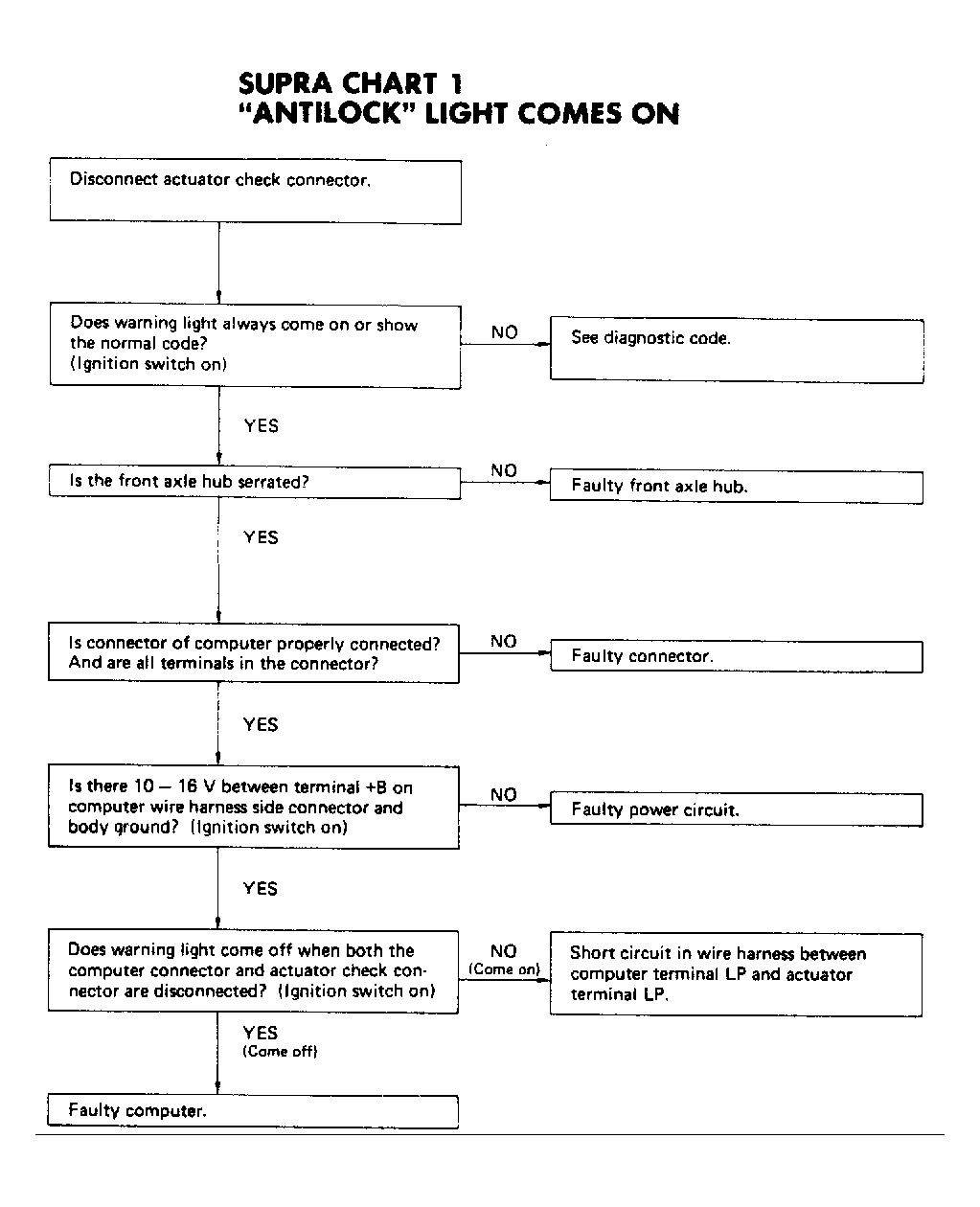

Fig 1: Chart 1, "ANTI-LOCK" Light Comes On

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

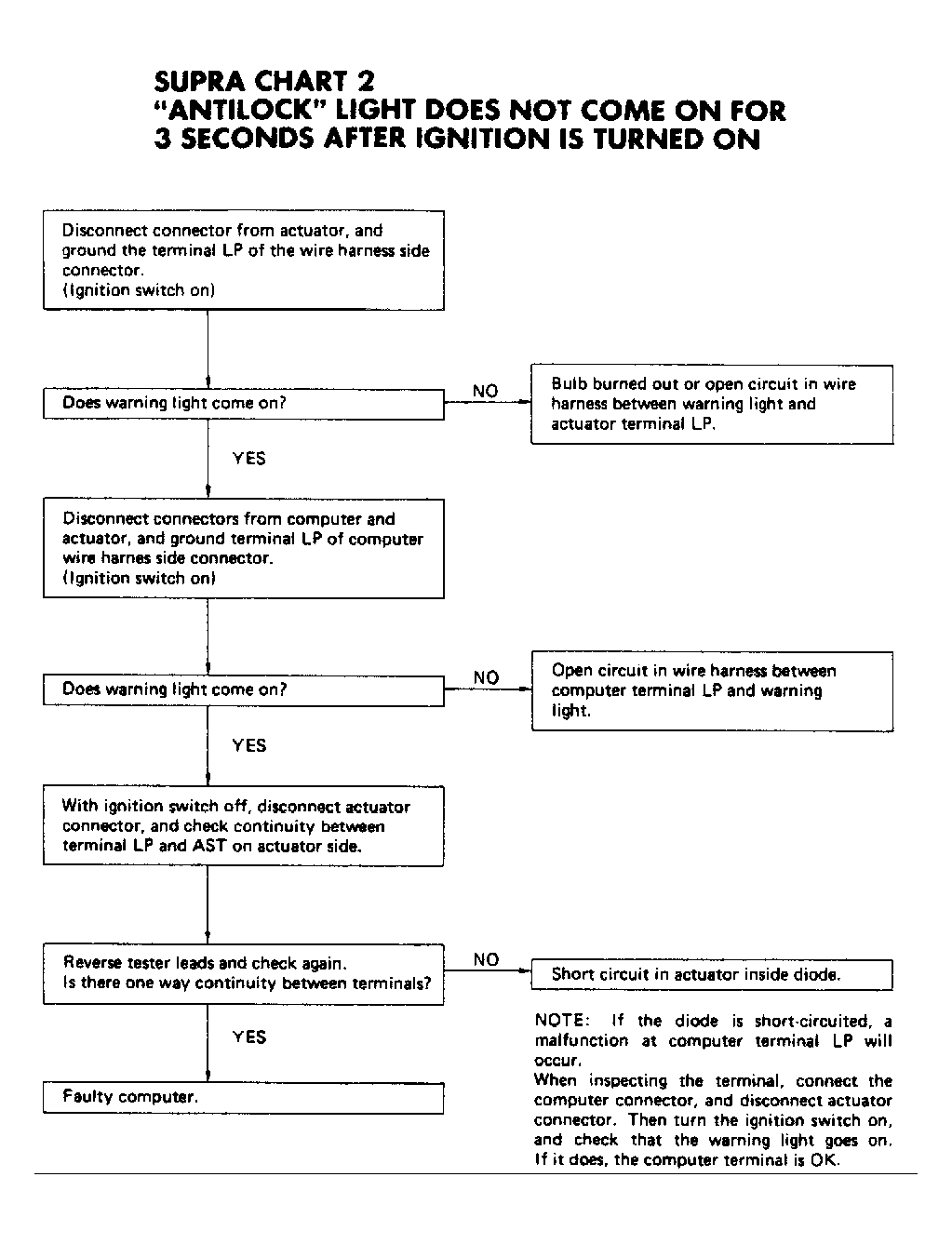

Fig 2: Chart 2, "ANTI-LOCK" Light Does Not Come On For 3 Seconds After Ignition is Turned On
