Corolla LE, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
TCCS System
›
Wiring Diagrams
Wiring Diagrams

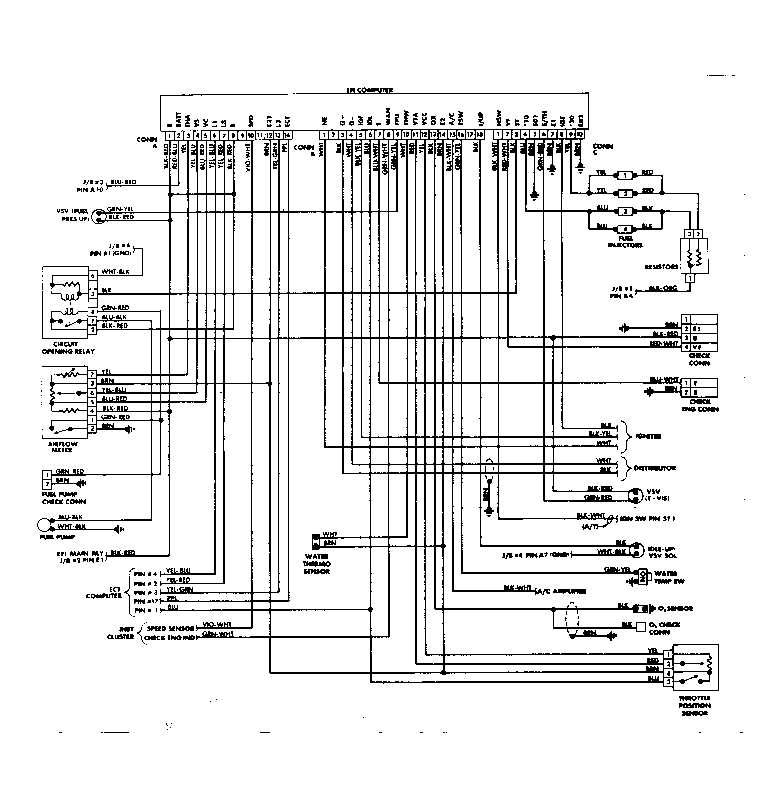

Fig 1: FWD (W/4A-GE Engine) TCCS Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

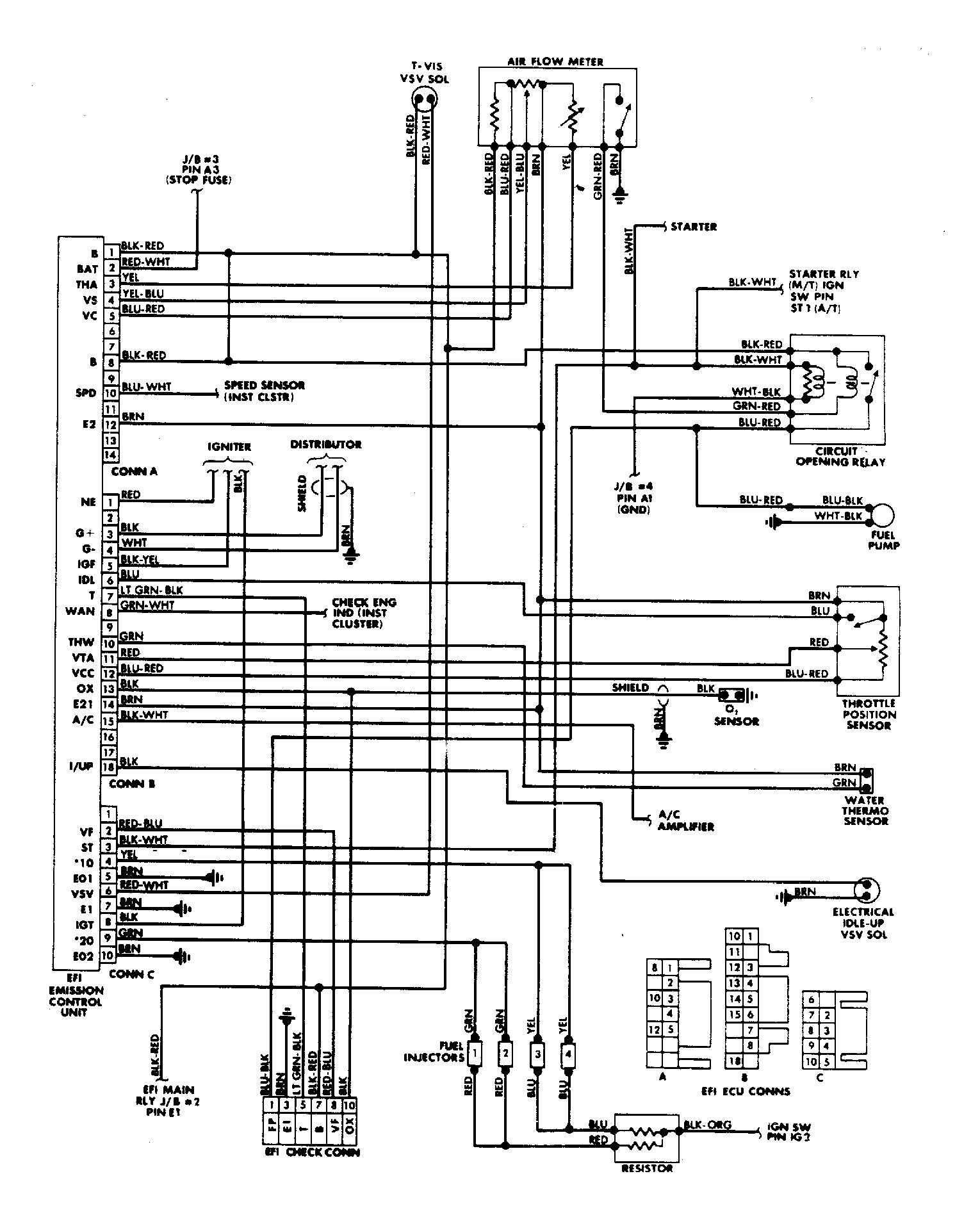

Fig 2: RWD (W/4A-GE Engine) TCCS Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
