Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|

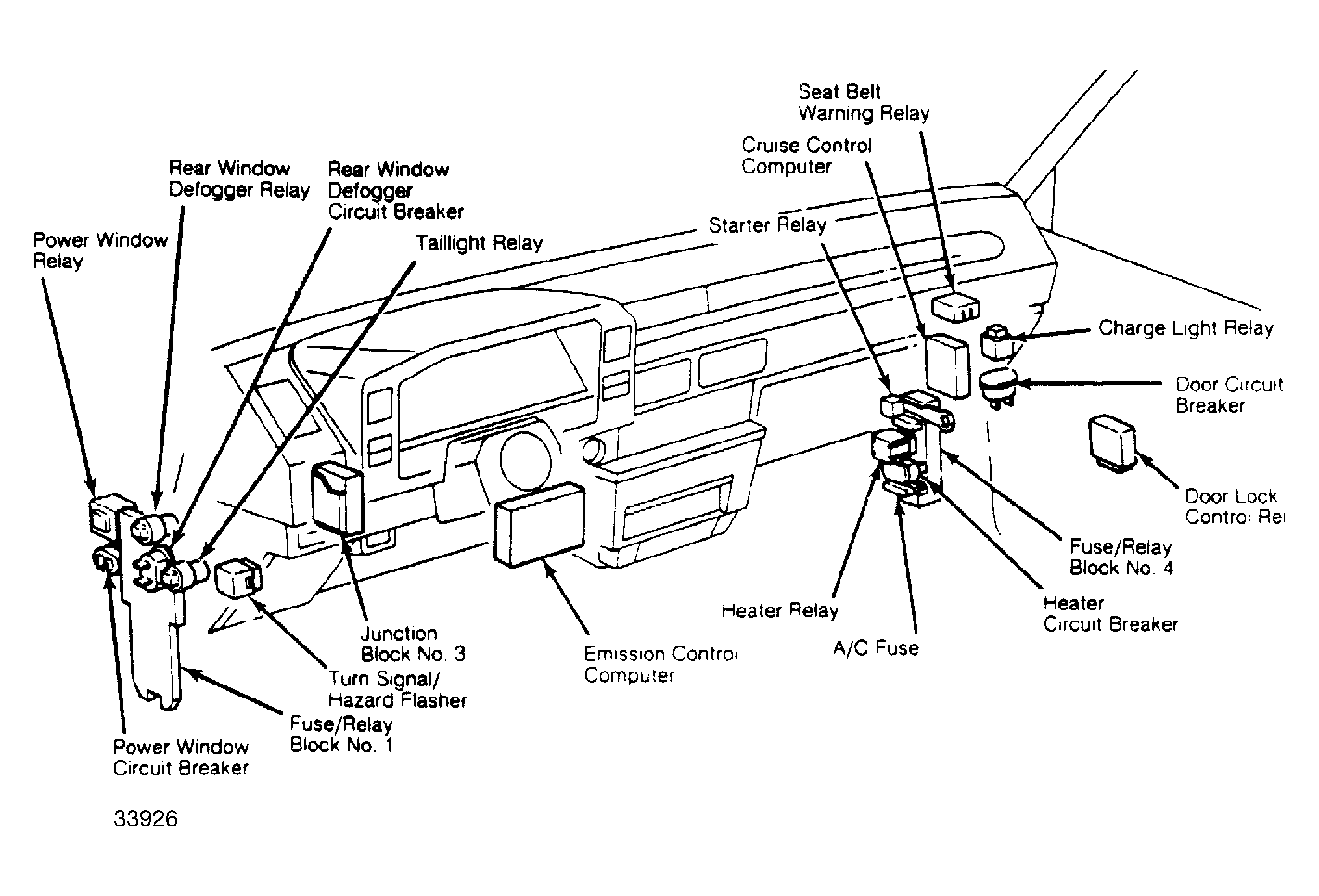

| A/C Fuse | On fuse/relay block No. 4. See Figure. | |
| Circuit Breakers | ||
| Door | Under right side of dash, near cruise control computer. | |
| Heater | On fuse/relay block No. 4. See Figure. | |
| Power Window | Near fuse/relay block No. 1. See Figure. | |
| Rear Window Defogger | On fuse/relay block No. 1. | |
| Fuse/Relay Block No. 1 | Behind left kick panel. See Figure. | |

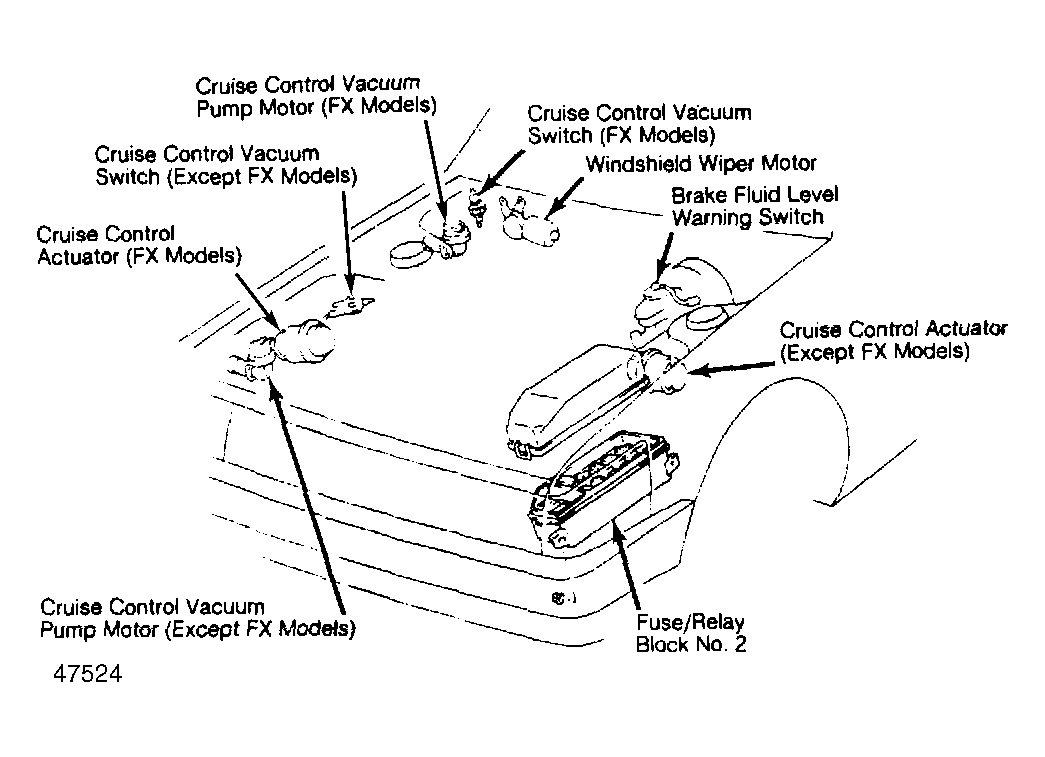

| Fuse/Relay Block No. 2 | In front left side of engine compartment. See Figure. | |
| Fuse/Relay Block No. 4 | Behind right kick panel. See Figure. | |
| Fusible Links | On positive battery terminal. | |
