ISC & Circuit Check — 1987 Toyota Cressida 4D Sedan, Standard Service Manual ~ FixVault

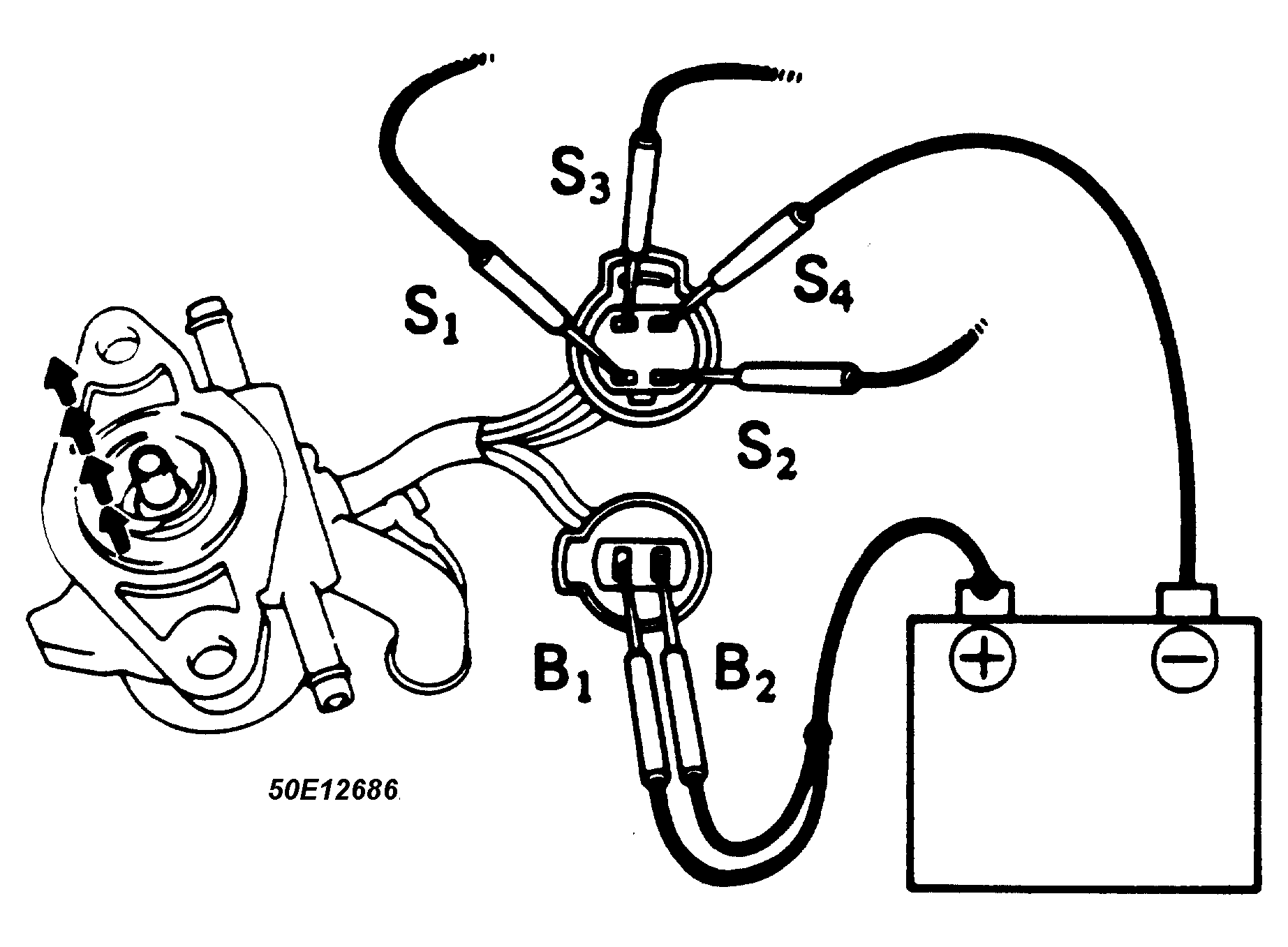

Fig 1: Terminals ISC, Thru ISC - E1 (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

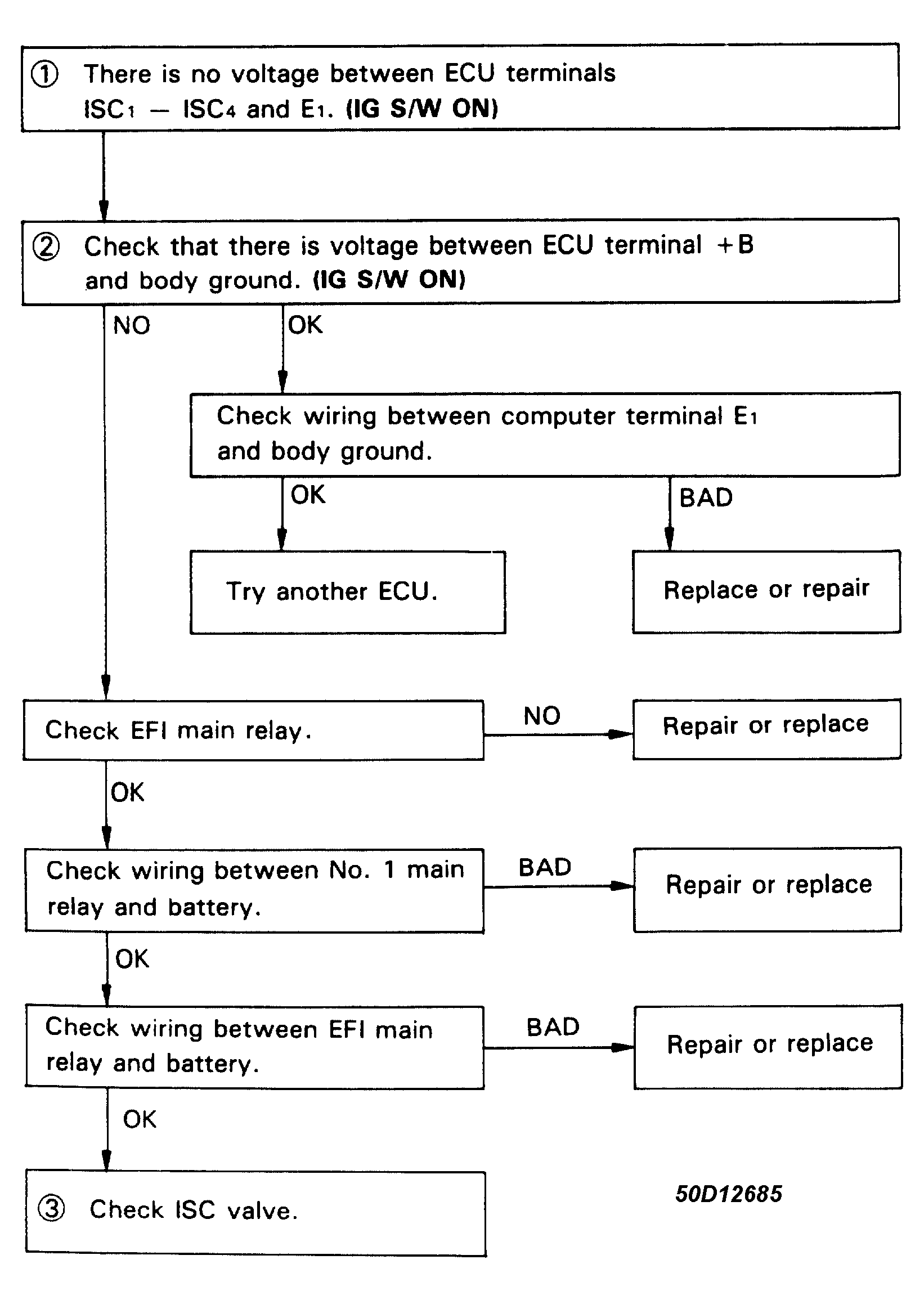

Fig 2: Wiring Diagram (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Wiring Diagram (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: TCCS Voltage & Resistance Specification Chart (1 Of 2)

Fig 5: TCCS Voltage & Resistance Specification Chart (2 Of 2)
