Trouble Code 5 Oxygen Sensor

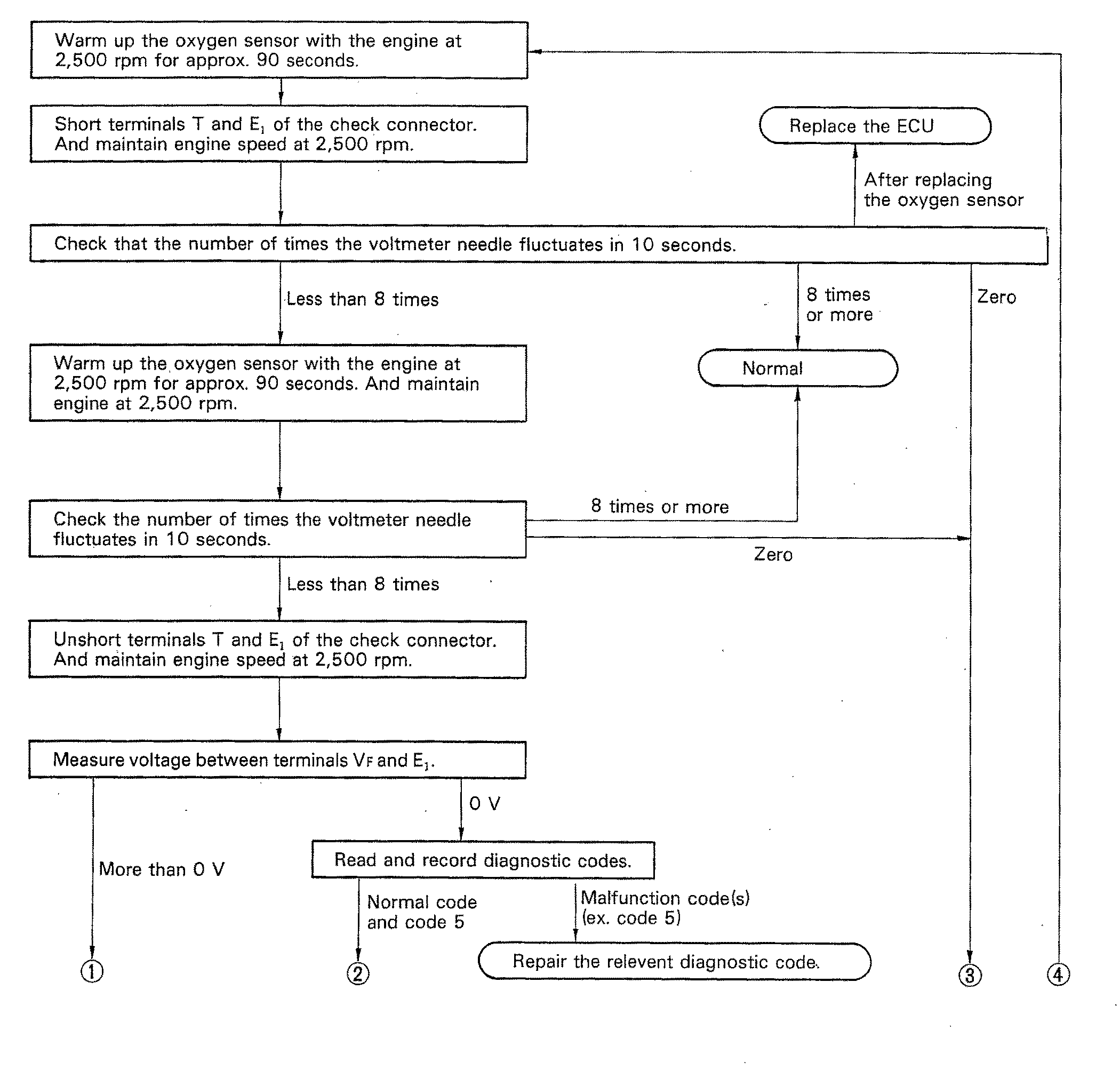

Fig 1: Trouble Code 5 Oxygen Sensor MR2 Part 1 of 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

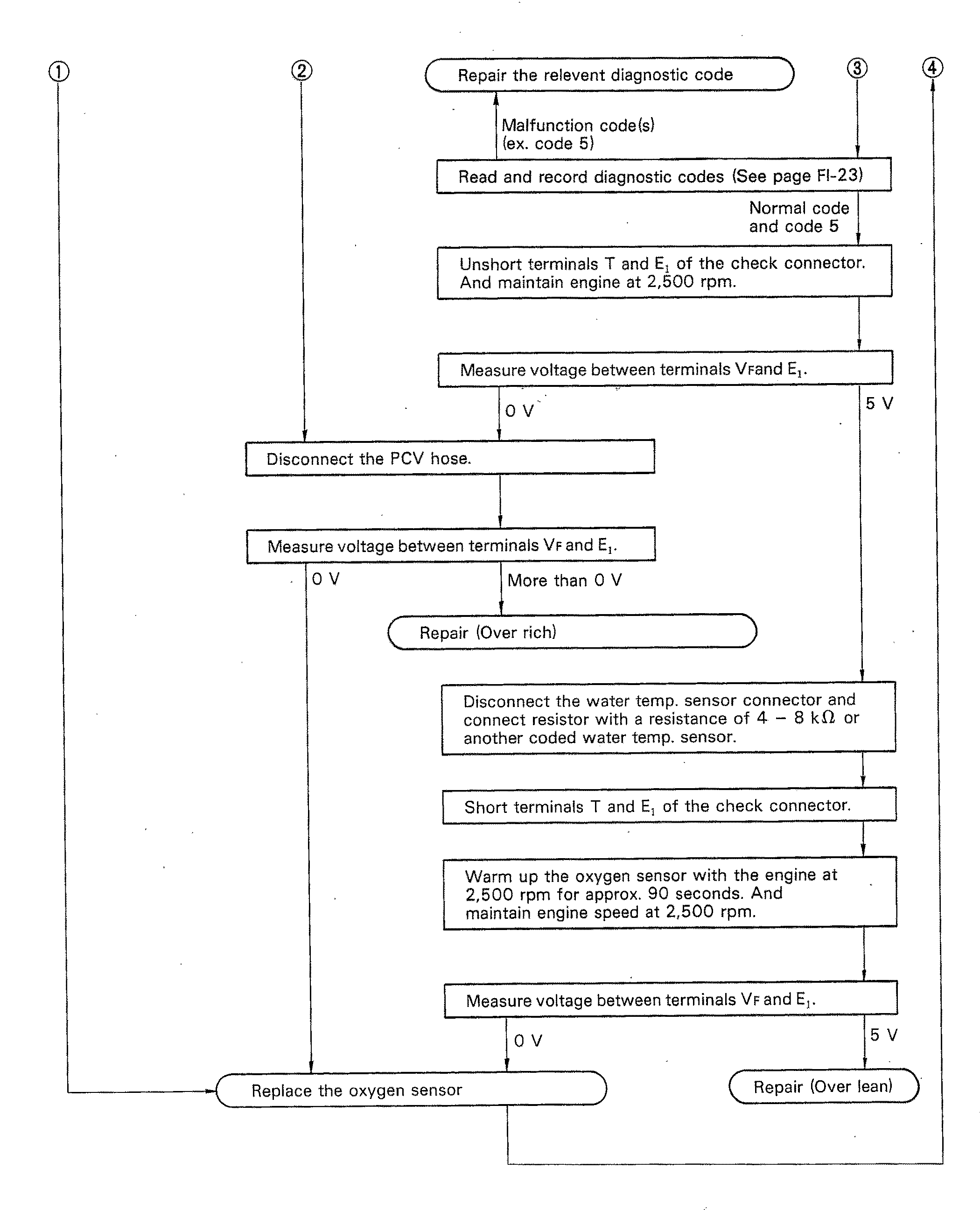

Fig 2: Trouble Code 5 Oxygen Sensor MR2 Part 2 of 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Trouble Code 5 Oxygen Sensor MR2 Part 3 of 3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
