Supra 7M-GE, Standard
›
Repair and Diagnosis
›
Engine Performance
›
System
›
TCCS System
›
Diagnosis & Testing
›
Trouble Code 14 IGNITOR & Circuit
Trouble Code 14 IGNITOR & Circuit

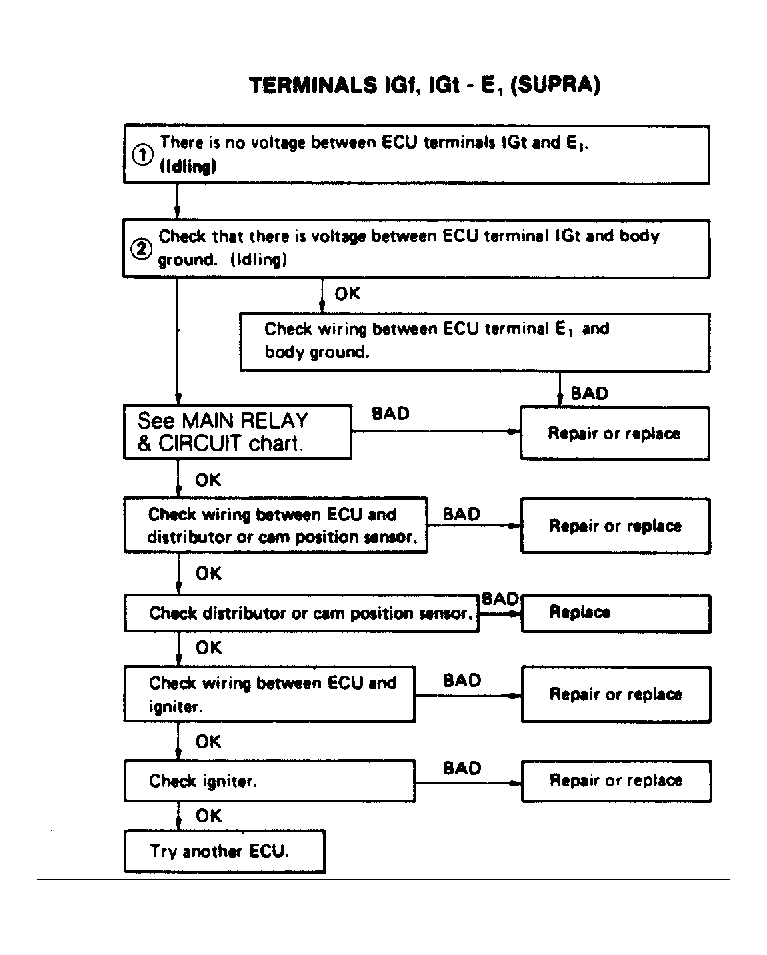

Fig 1: Terminals IGf, IGt - E1 (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
