Ignition System: Overhaul

NOTE: Distributors on all engines not illustrated must be replaced as an assembly.

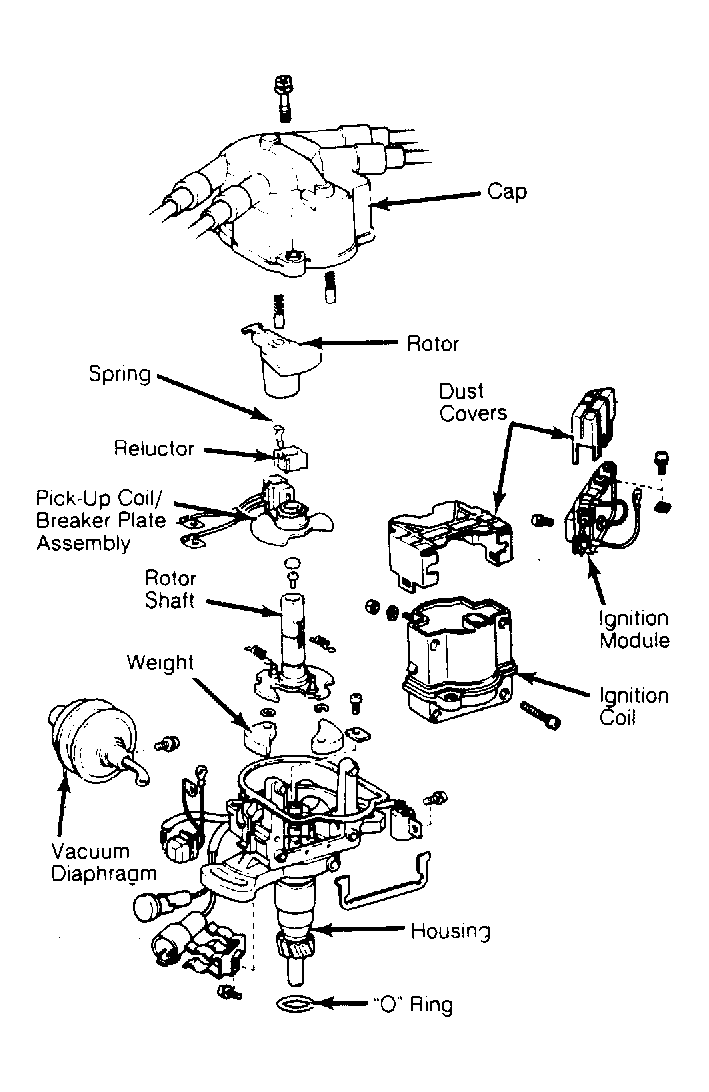

Fig 1: Exploded View of Typical Integrated Ignition Distributor Courtesy Toyota Motor Sales U.S.A., Inc.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

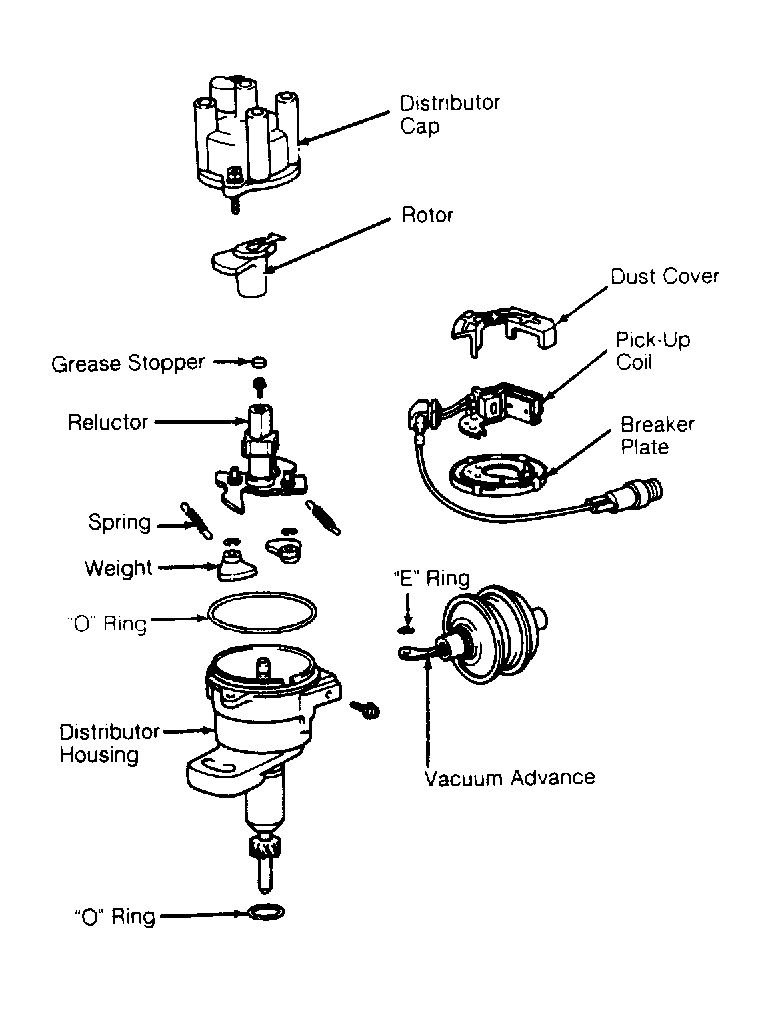

Fig 2: Exploded View of Pickup & 4Runner (22R) Distributor Courtesy Toyota Motor Sales U.S.A., Inc.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
