No. 1 Test, Code 11, Ecu (+B) Circuit

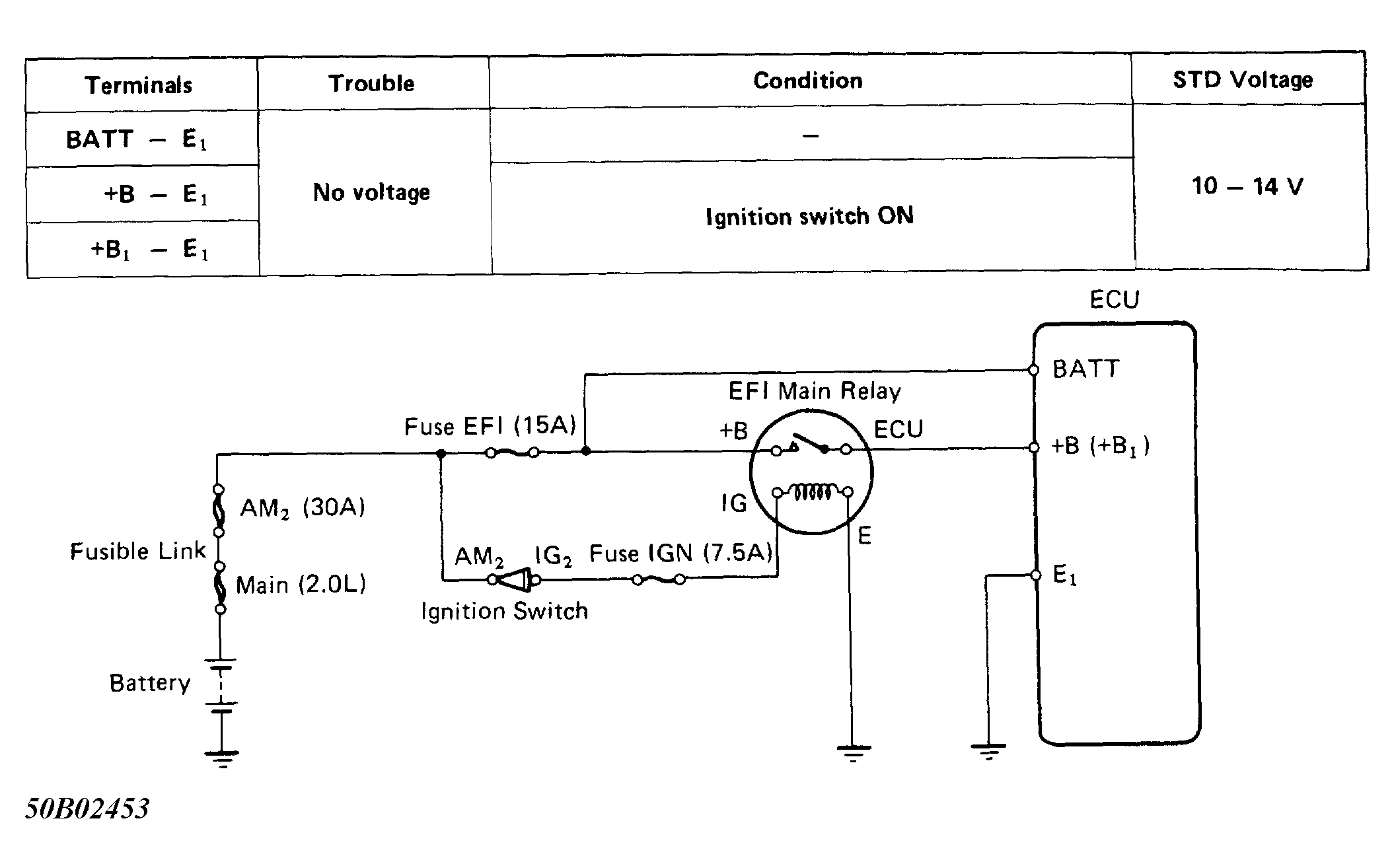

Fig 1: No. 1 Test, Code 11, ECU (+B) Circuit, Schematic (4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

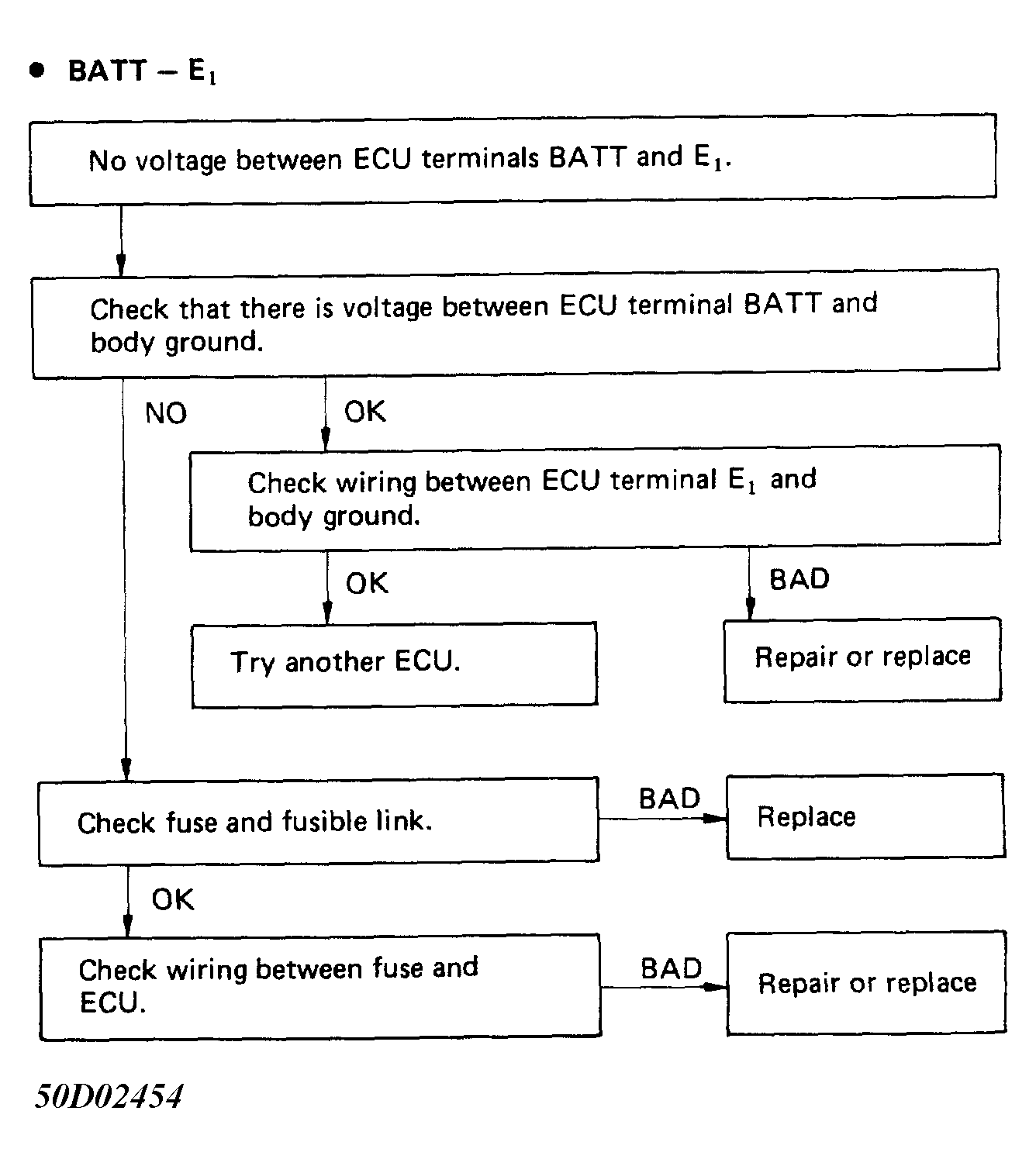

Fig 2: No. 1 Test, Code 11, ECU (+B) Circuit, Flow Chart (4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

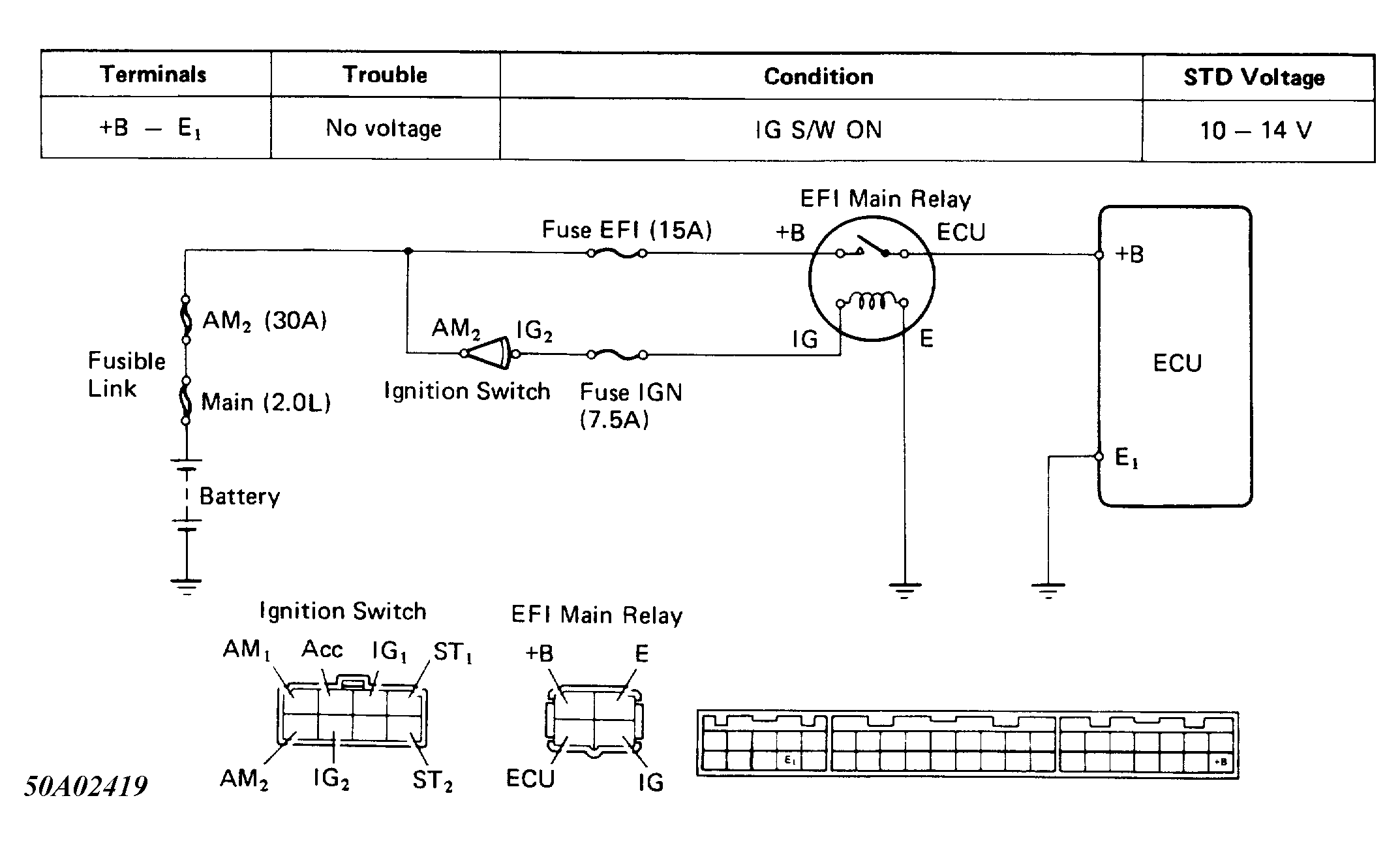

Fig 3: No. 1 Test, Code 11, ECU (+B) Circuit, Schematic (V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

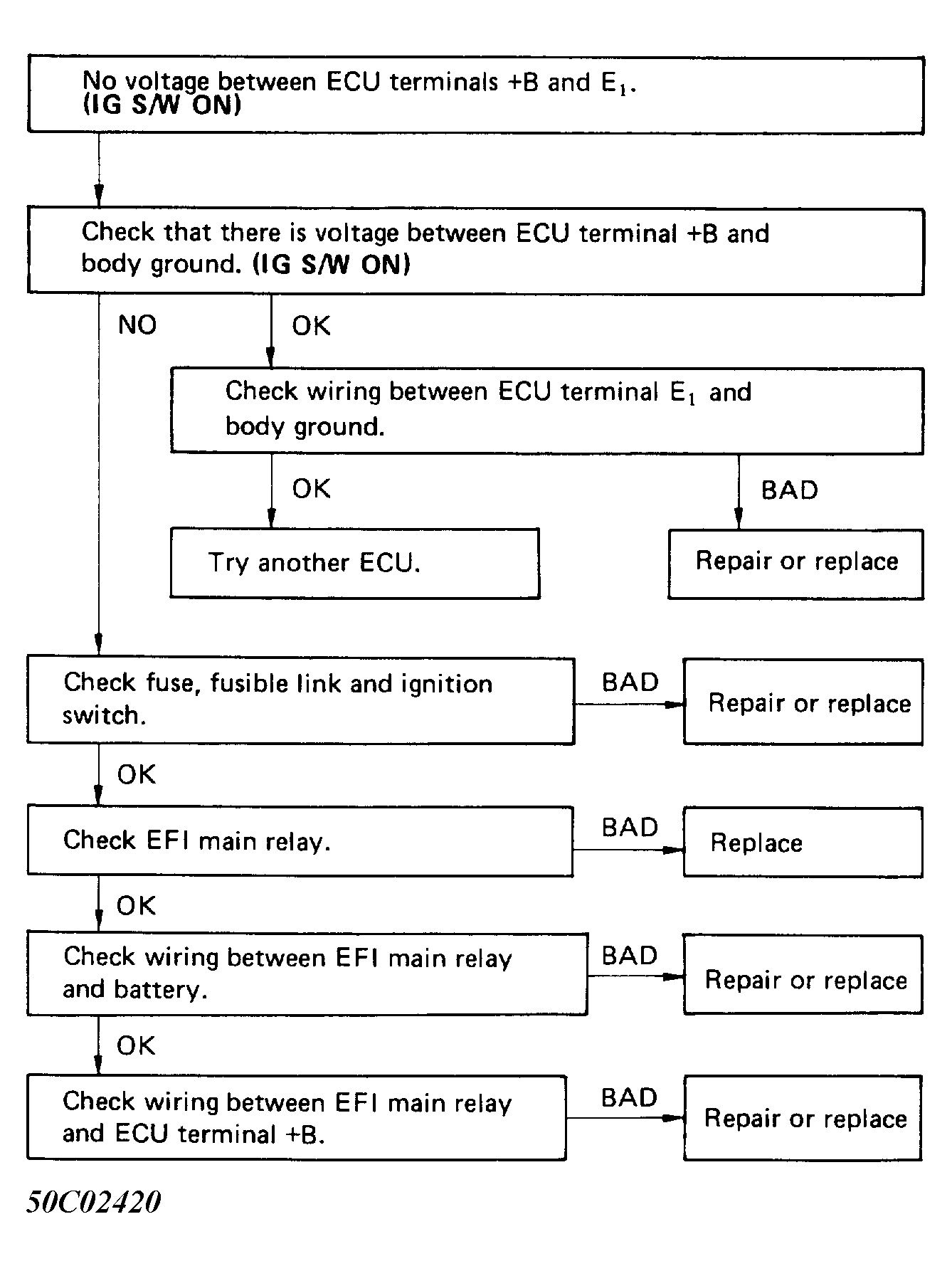

Fig 4: No. 1 Test, Code 11, ECU (+B) Circuit, Flow Chart (V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
