No. 12 Test, Ecu Power Source

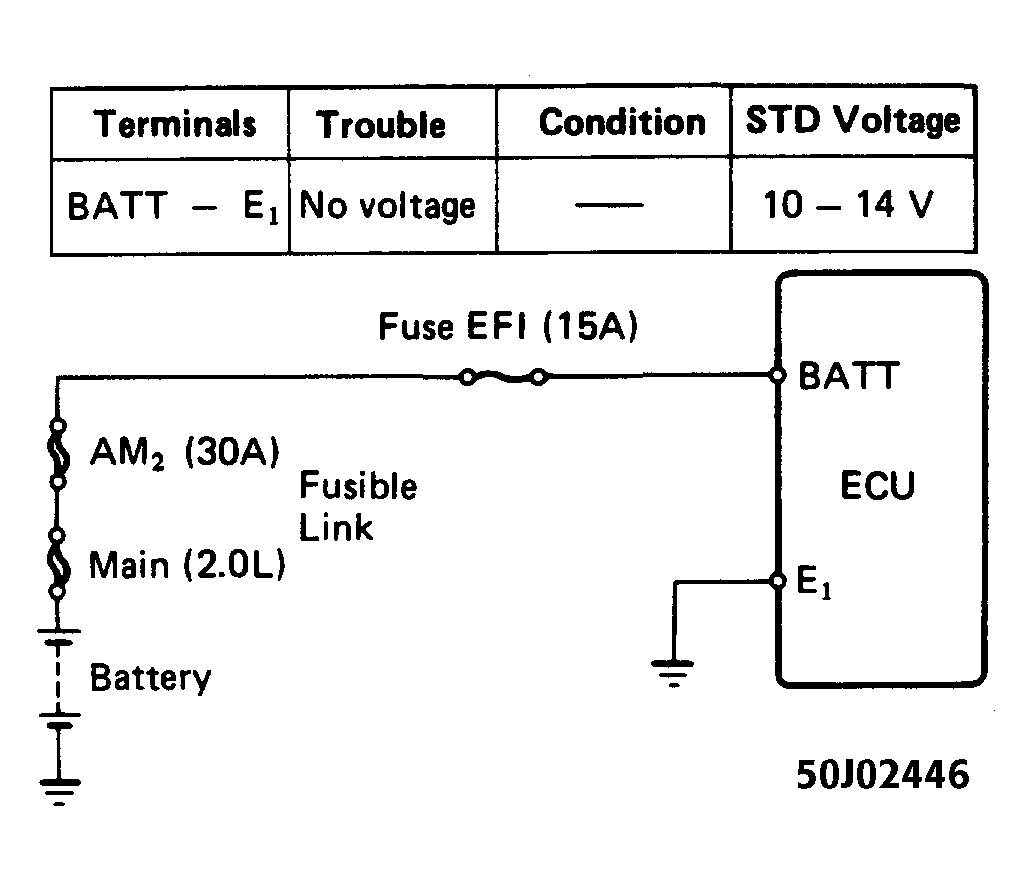

Fig 1: 4-Cyl. No. 12 Test Schematic, ECU Power Source

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

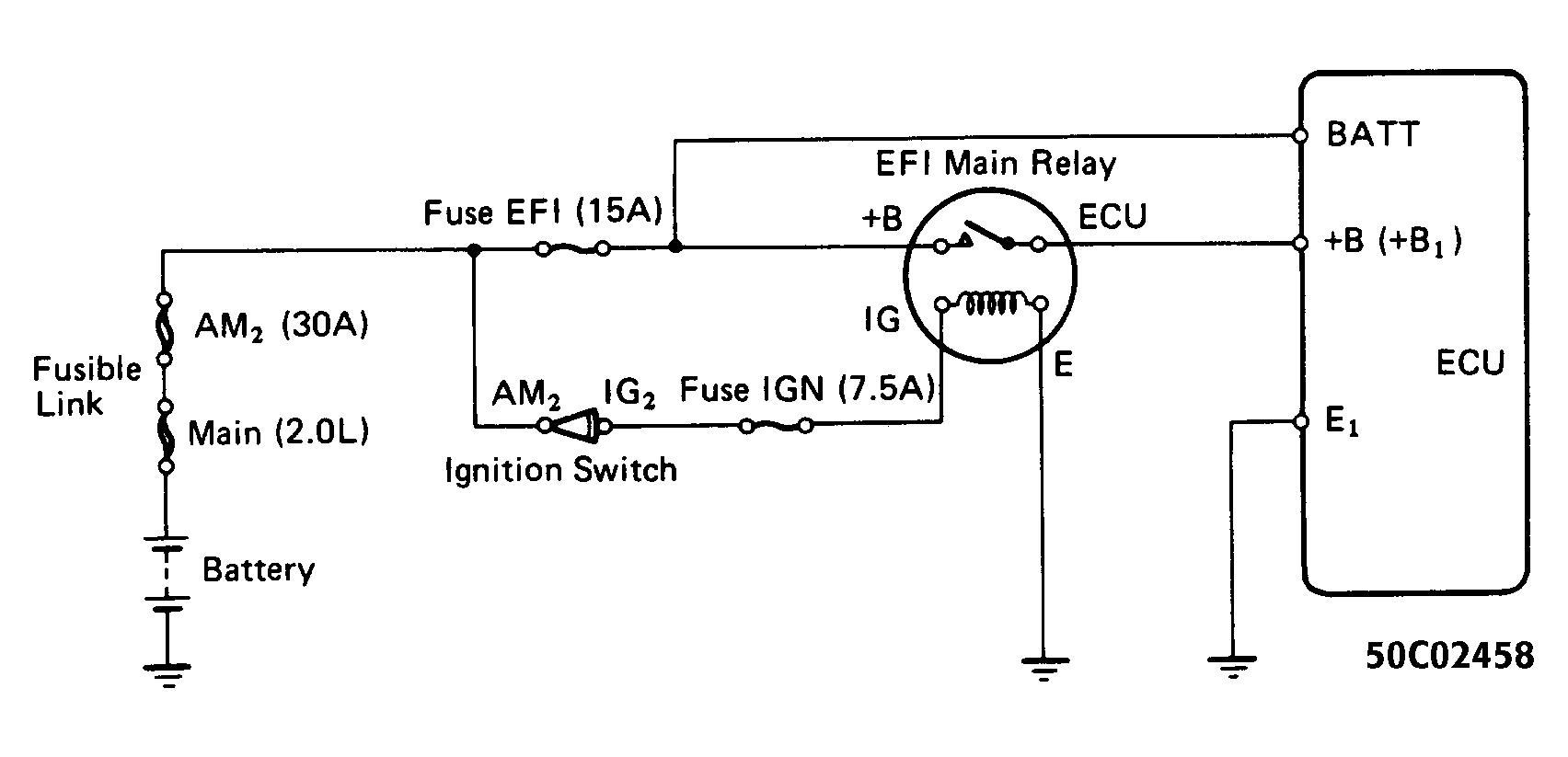

Fig 2: V6 No. 12 Test, ECU Power Source

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

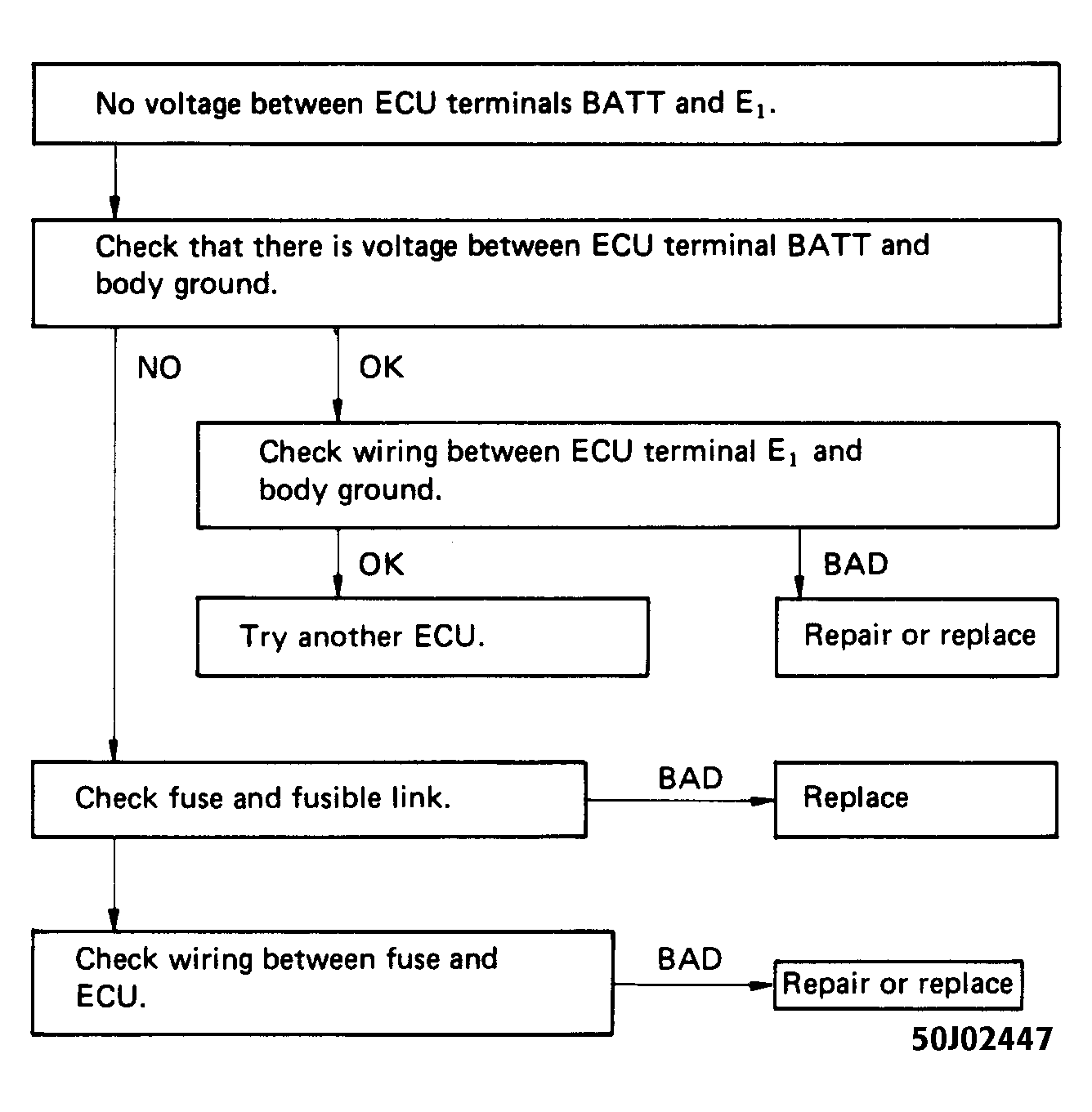

Fig 3: No. 12 Test Flow Chart, ECU Power Source

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
