No. 15 Test, Injector Circuit Test

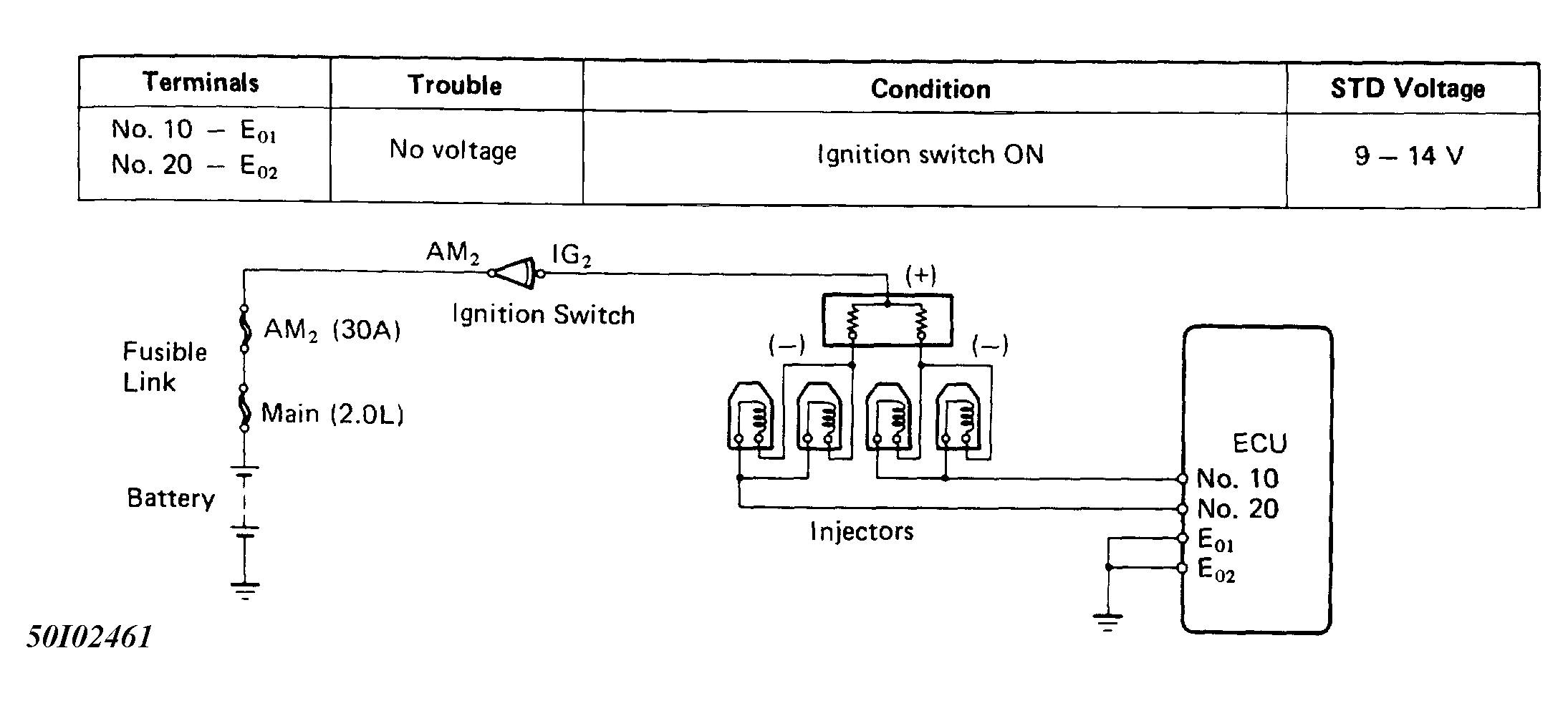

Fig 1: No. 15 Test, Injector Circuit Test, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

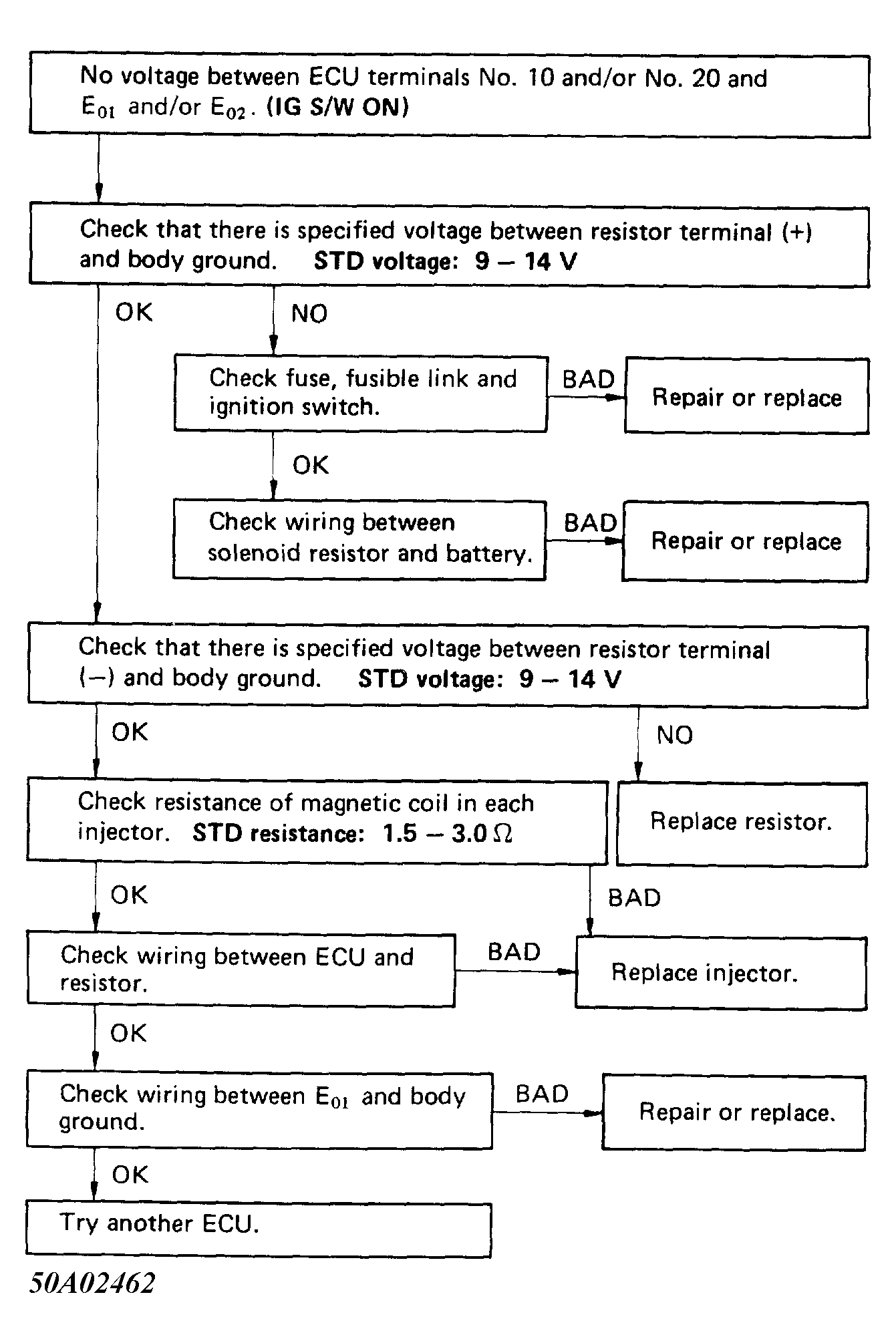

Fig 2: No. 15 Test, Injector Circuit Test, Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: No. 15 Test, Injector Circuit Test, Resistor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Injector Resistance on Pickup and 4Runner models with 4-Cyl. is 1.5-3.0 ohms.
