Toyota
›
1988
›
4Runner Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Computer Control System
›
Wiring Diagrams
Wiring Diagrams

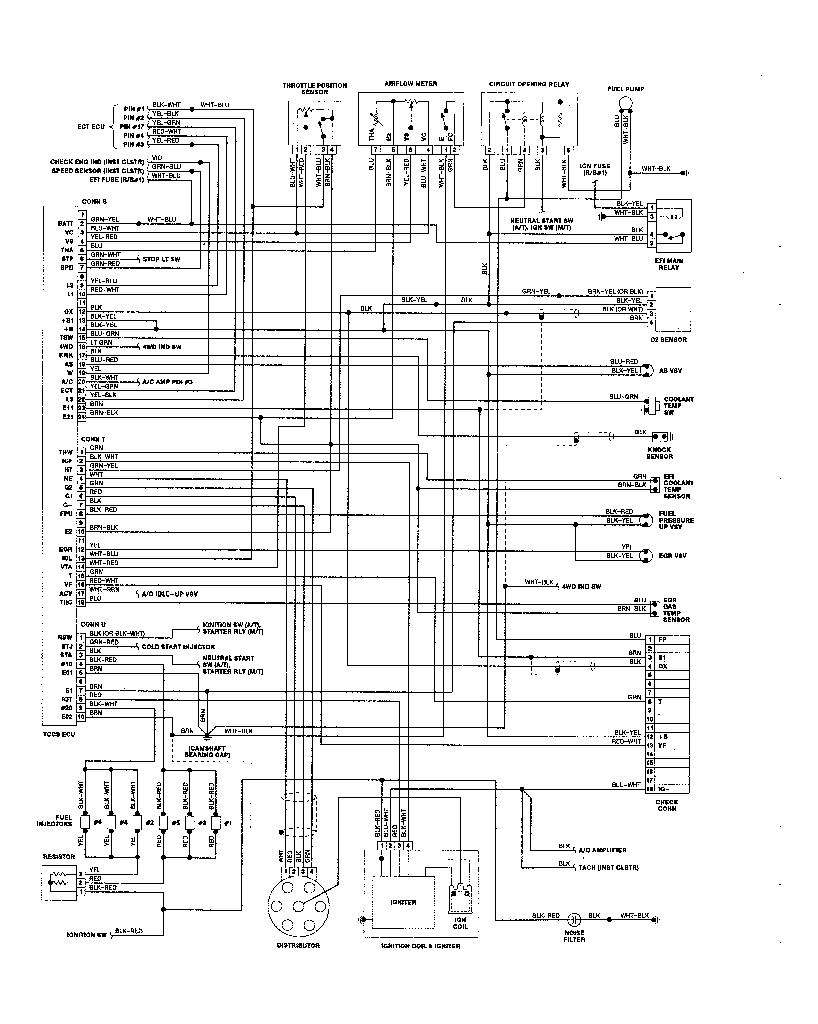

Fig 1: Toyota Computer Control System Wiring Diagram (4-Cylinder)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

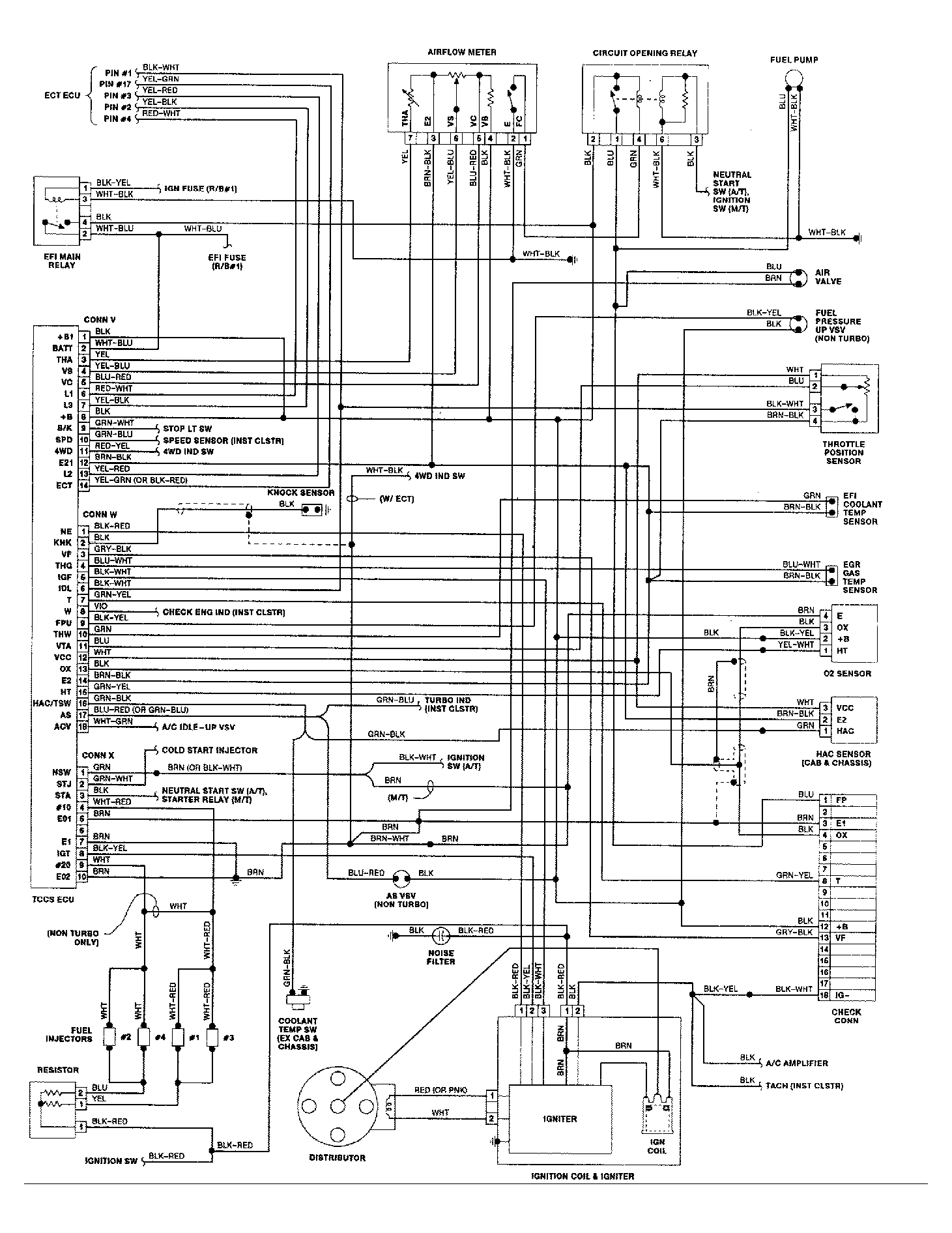

Fig 2: Toyota Computer Control System Wiring Diagram (V6)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
