No. 1 Test, Code 11, Ecu (+B) Circuit (4-CYL.)

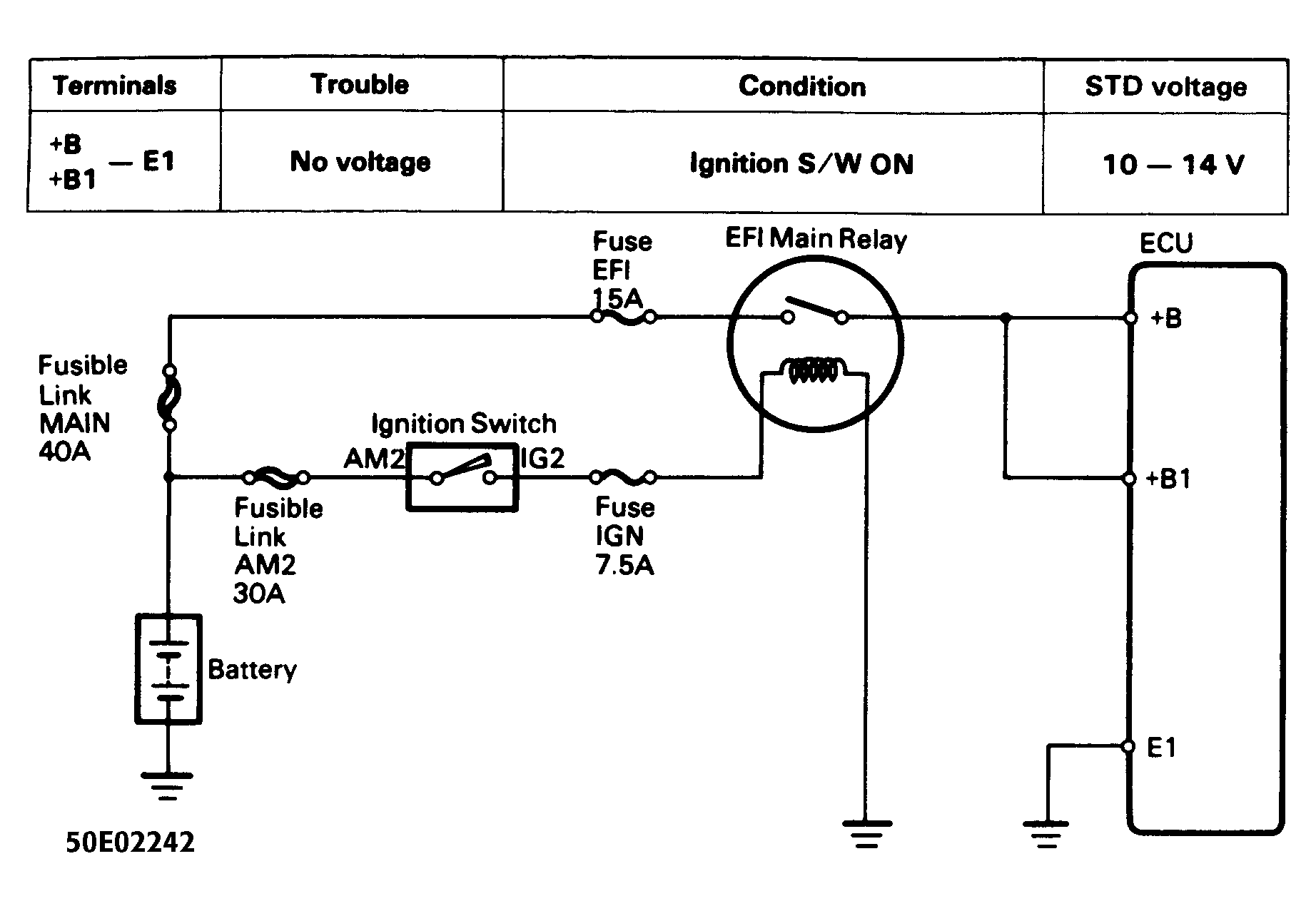

Fig 1: No. 1 Test, Code 11 Schematic, ECU (+B) Circuit (4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

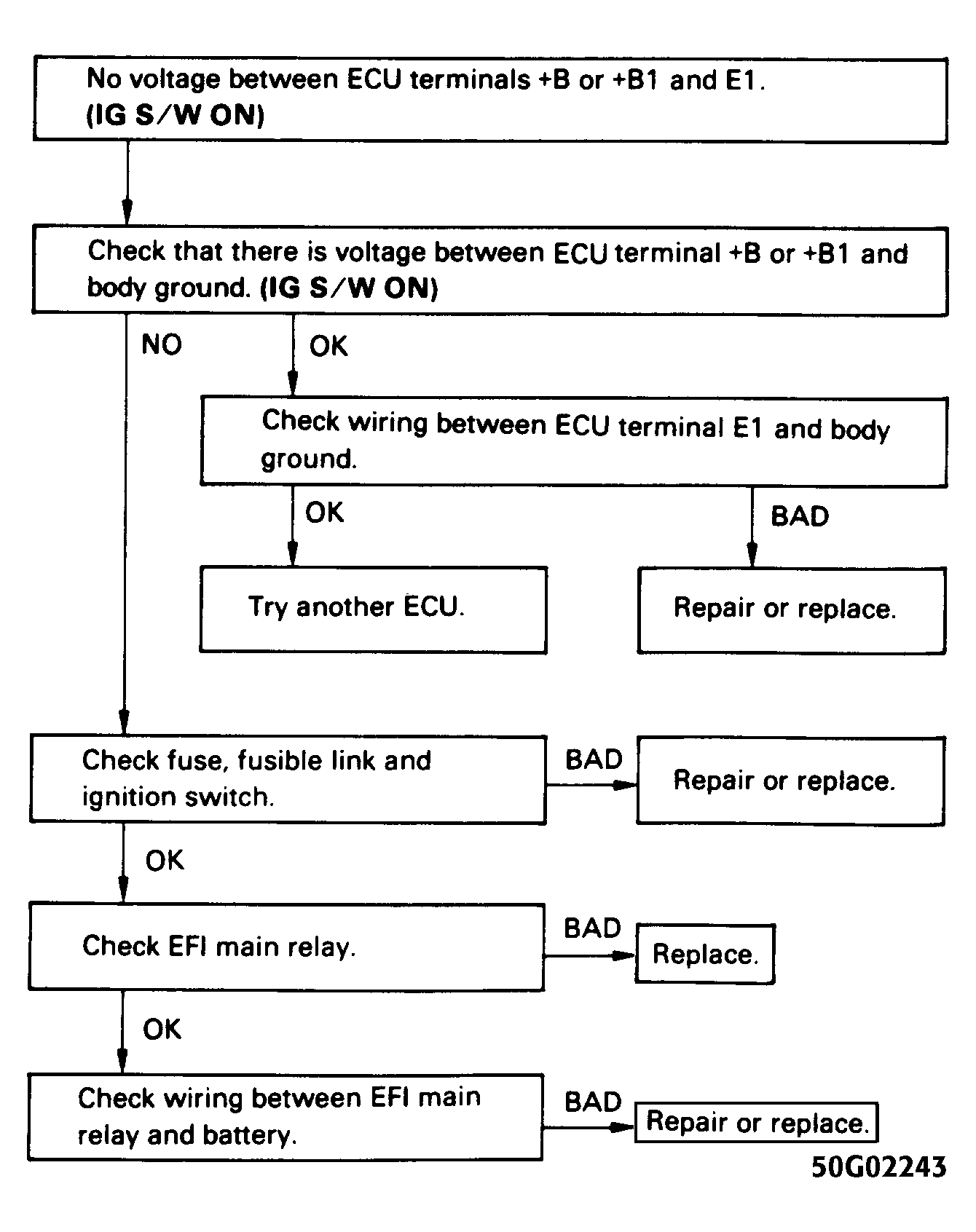

Fig 2: No. 1 Test, Code 11 Flow Chart, ECU (+B) Circuit (4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
