NO. 12 Test, Injector Circuit Test

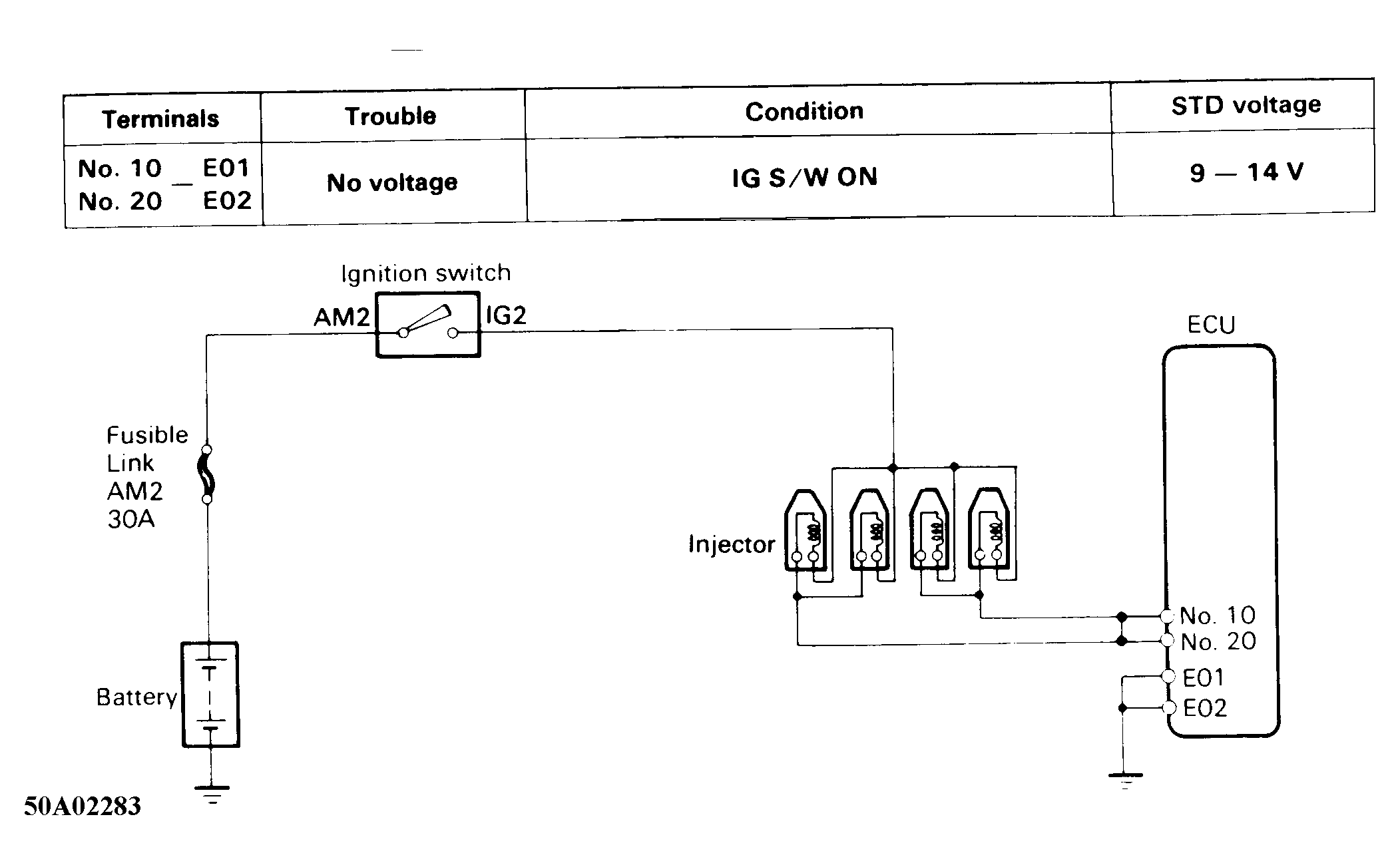

Fig 1: Test 12 Schematic, Injector Circuit Test (4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

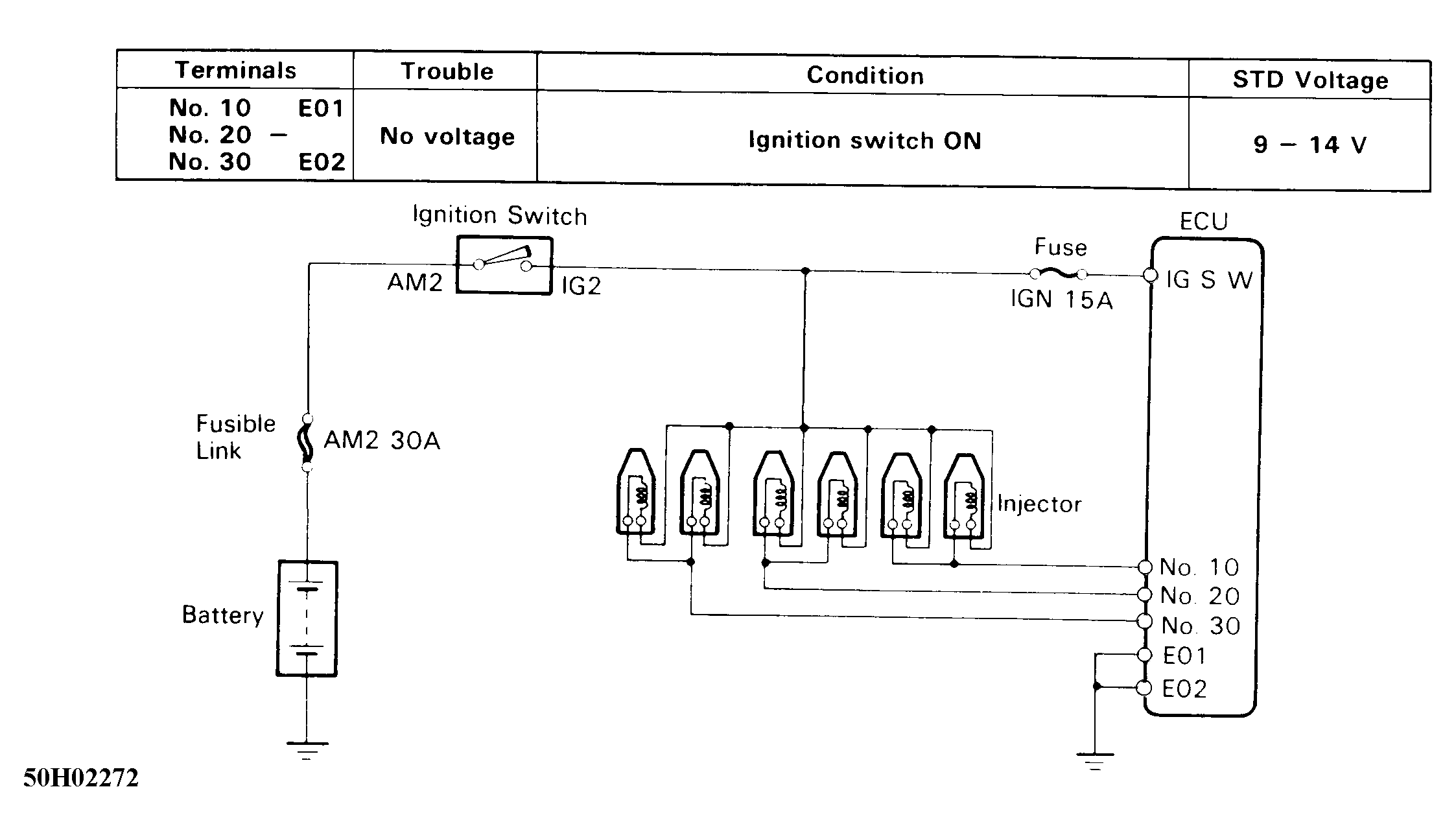

Fig 2: Test 12 Schematic, Injector Circuit Test (V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

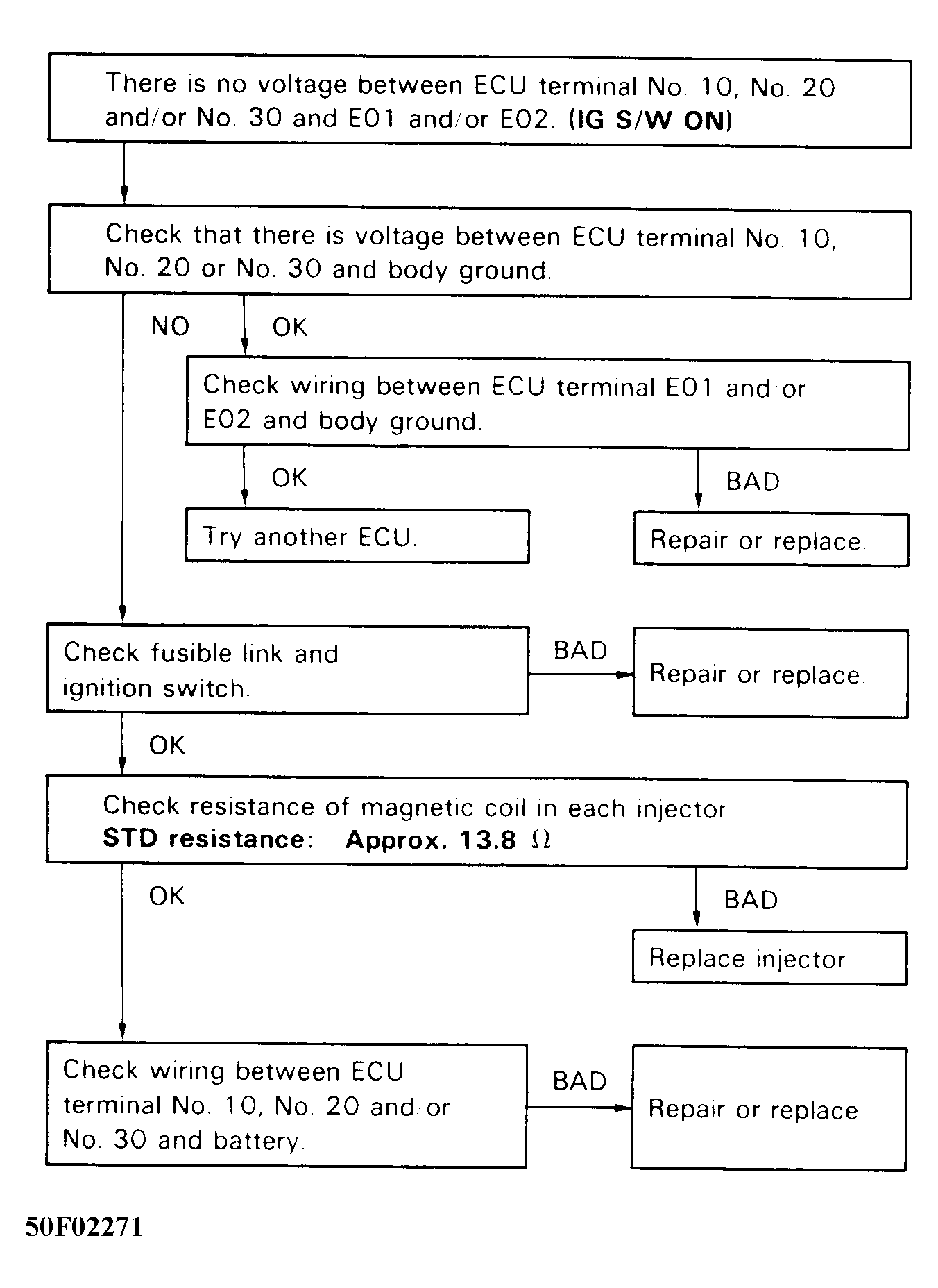

Fig 3: Test 12 Flow Chart, Injector Circuit Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
