No. 10 Test, EGR System Circuit (CALIF.)

Fig 1: Test 10, Schematic, EGR System Circuit (Calif.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

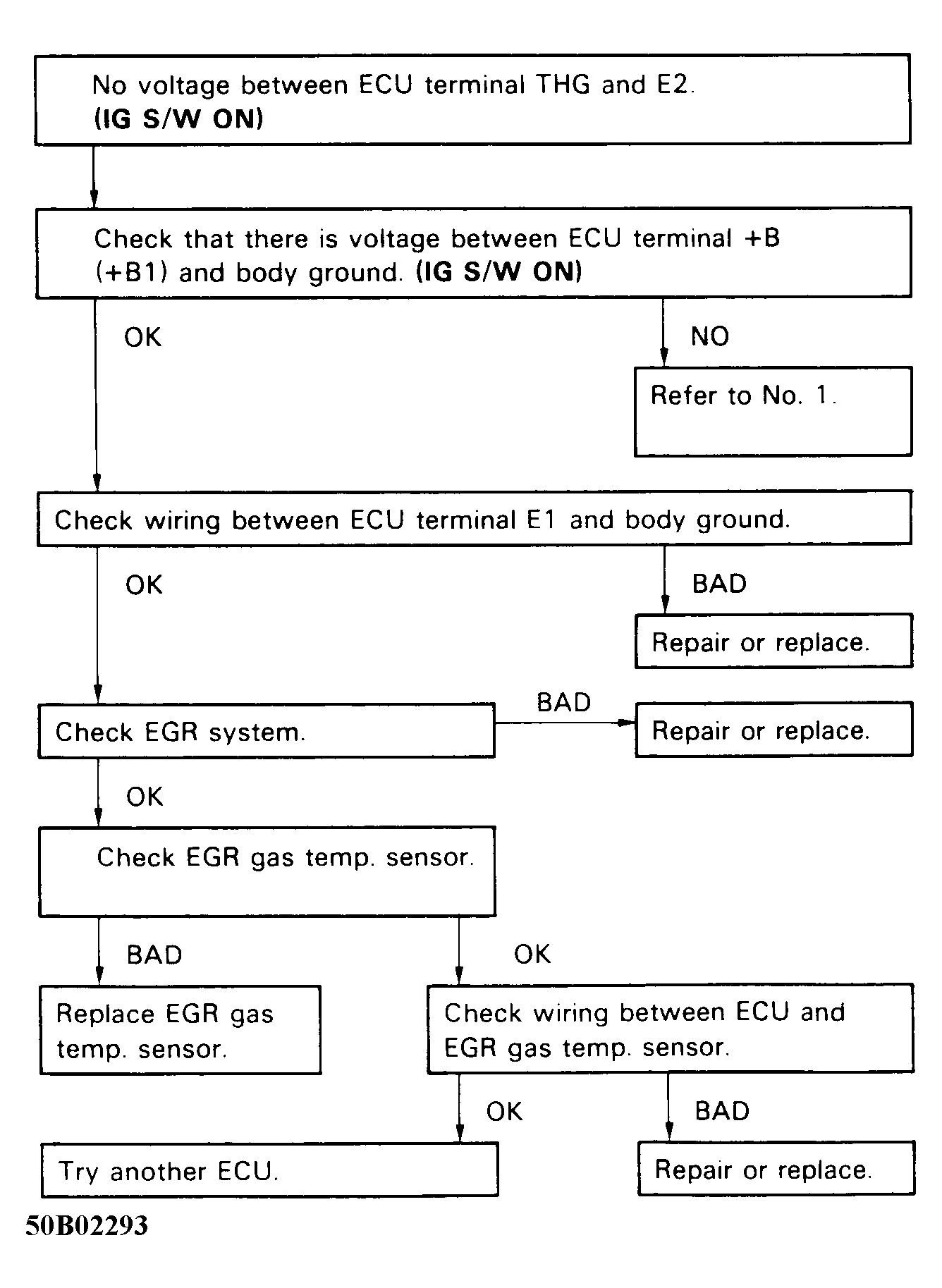

Fig 2: Test 10, Flow Chart, EGR System Circuit (Calif.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Test 10, EGR Gas Temp. Sens. Test (Calif.)
