No. 15 Test, A/C Switch Circuit

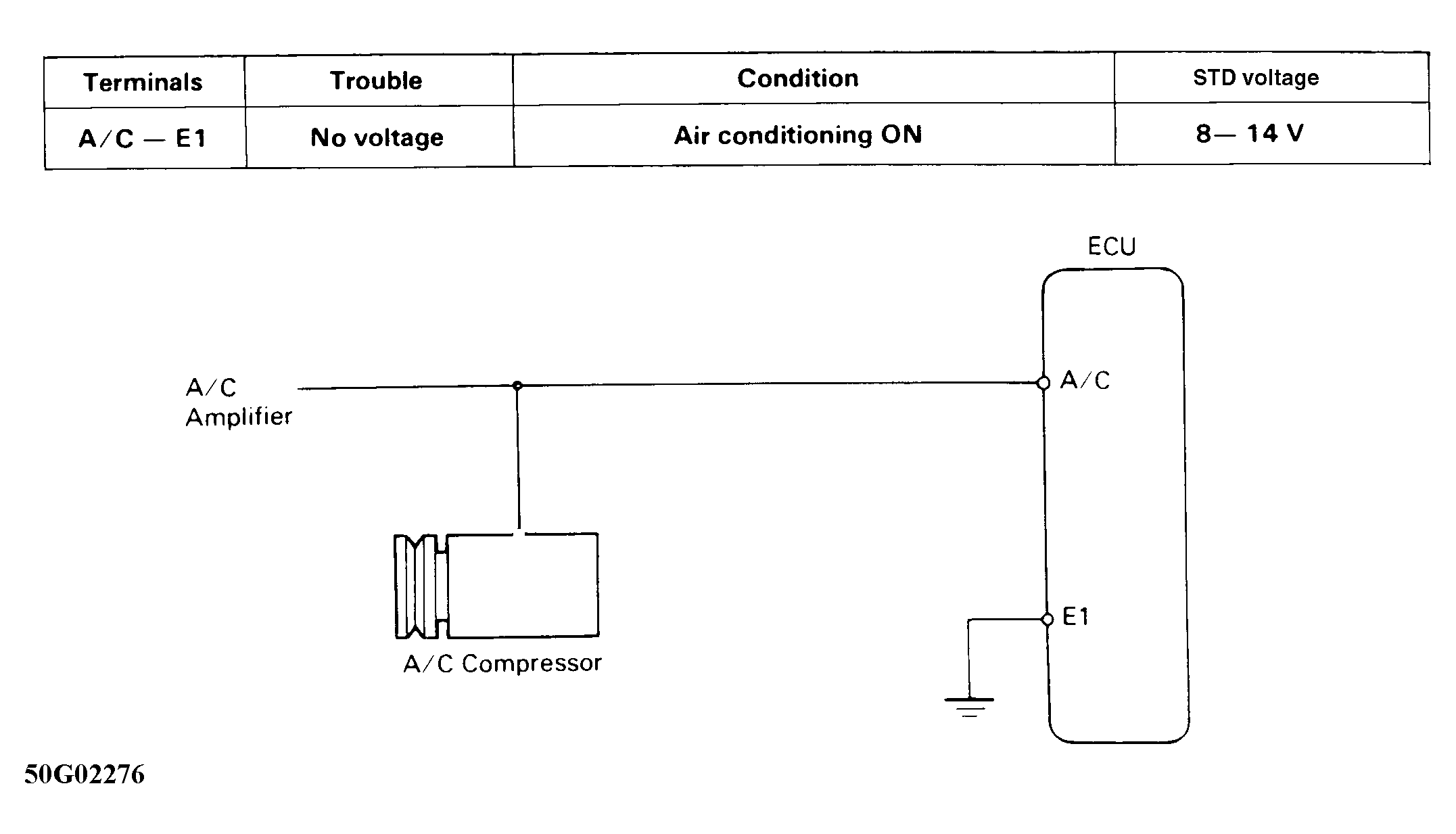

Fig 1: Test 15 Schematic, A/C Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

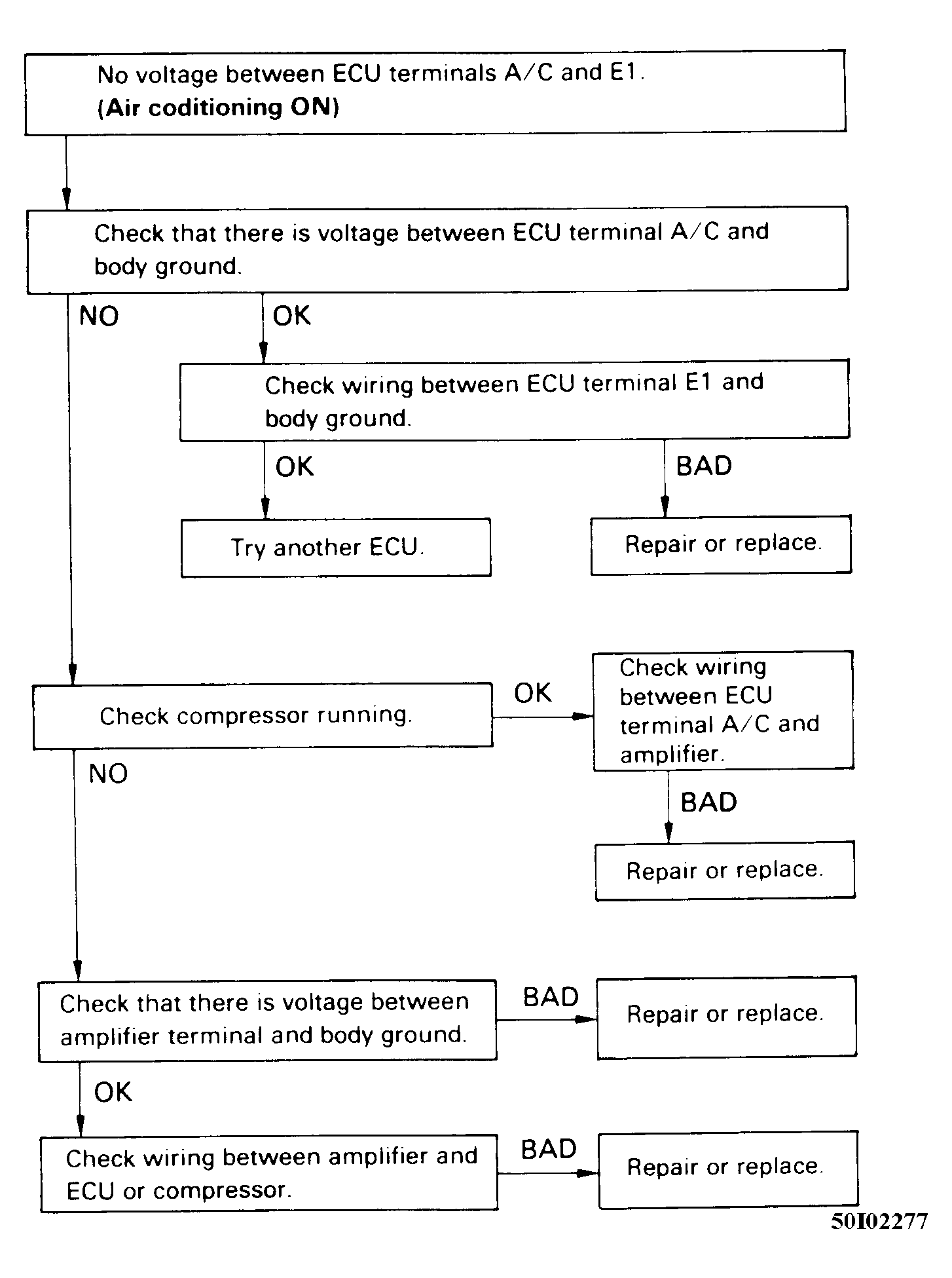

Fig 2: Test 15 Flow Chart, A/C Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
