No. 3 Test, Code 21, O2 Sensor Circuit (V6)

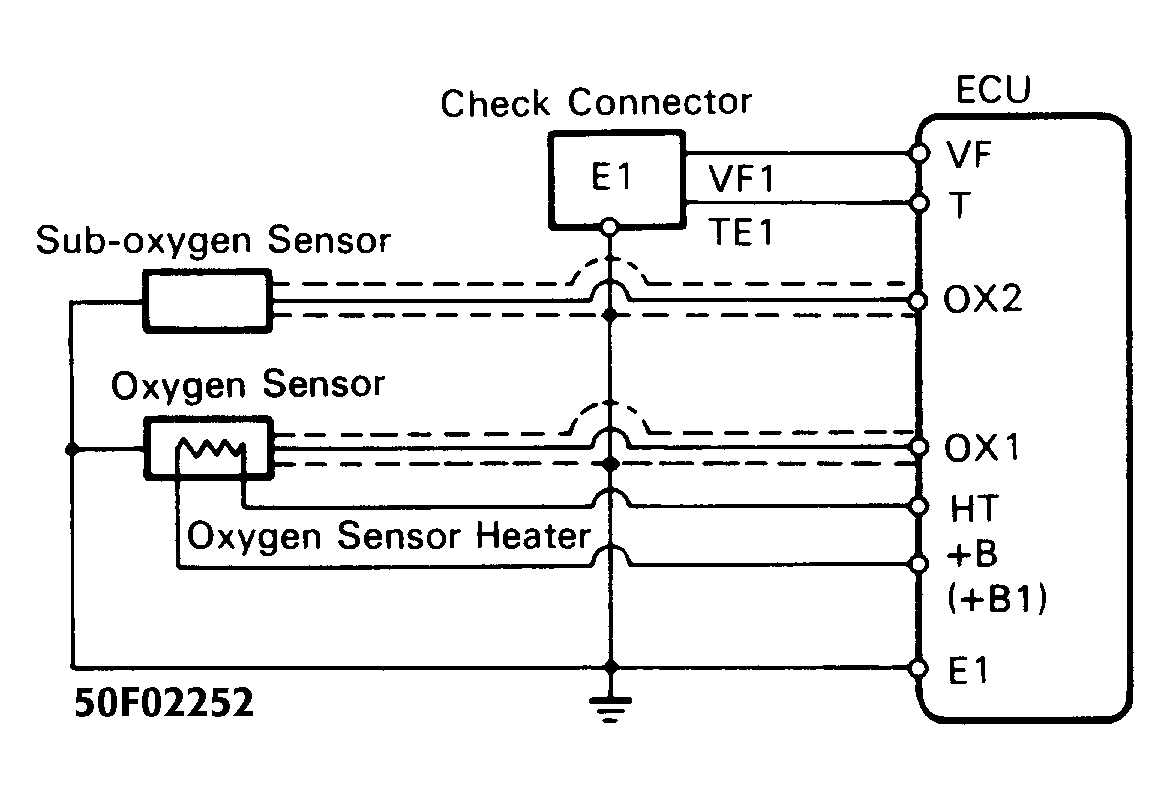

Fig 1: No. 3 Test, Code 21 Schematic, O2 Sensor Circuit (V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

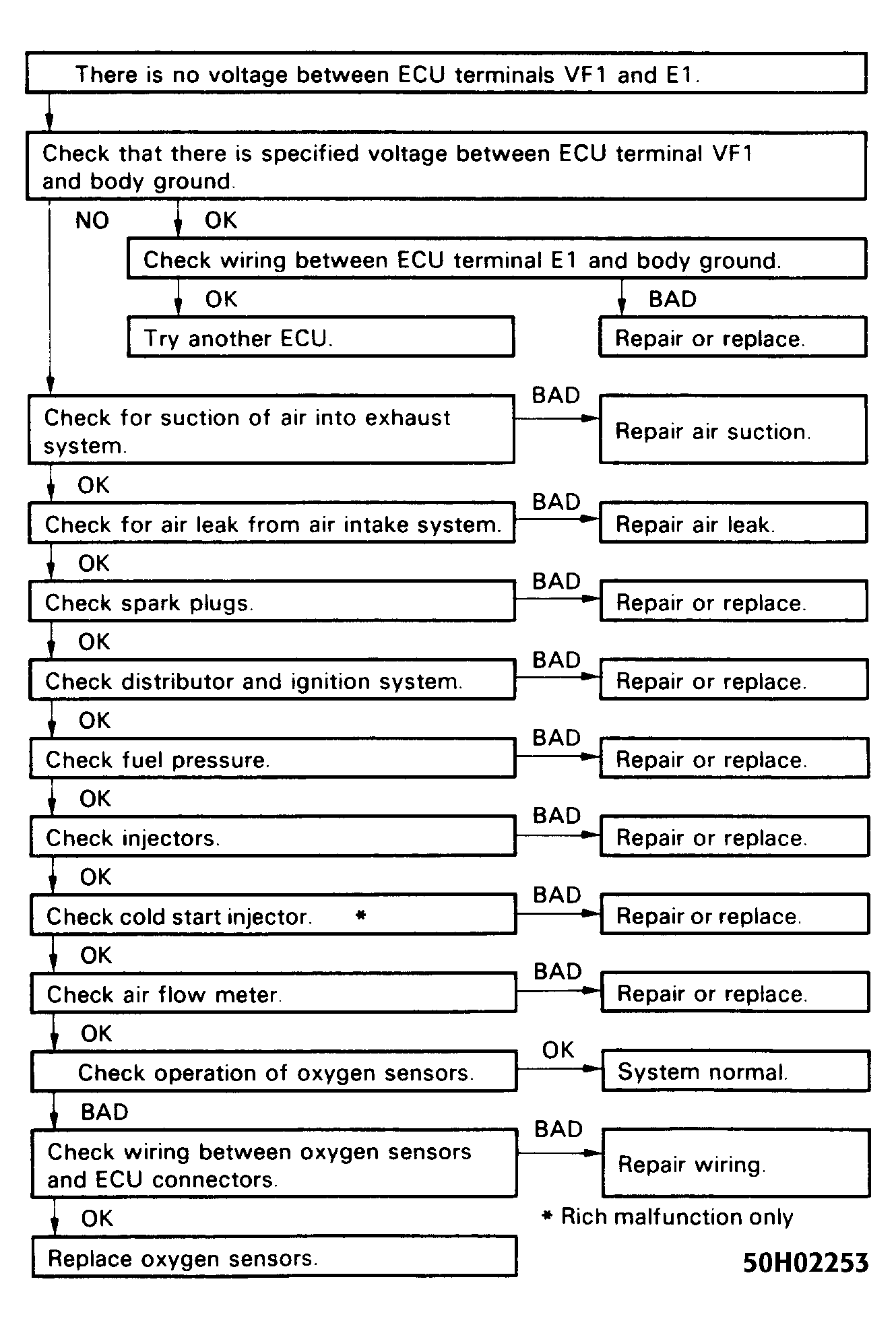

Fig 2: No. 3 Test, Code 21 Flow Chart, O2 Sensor Circuit (V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

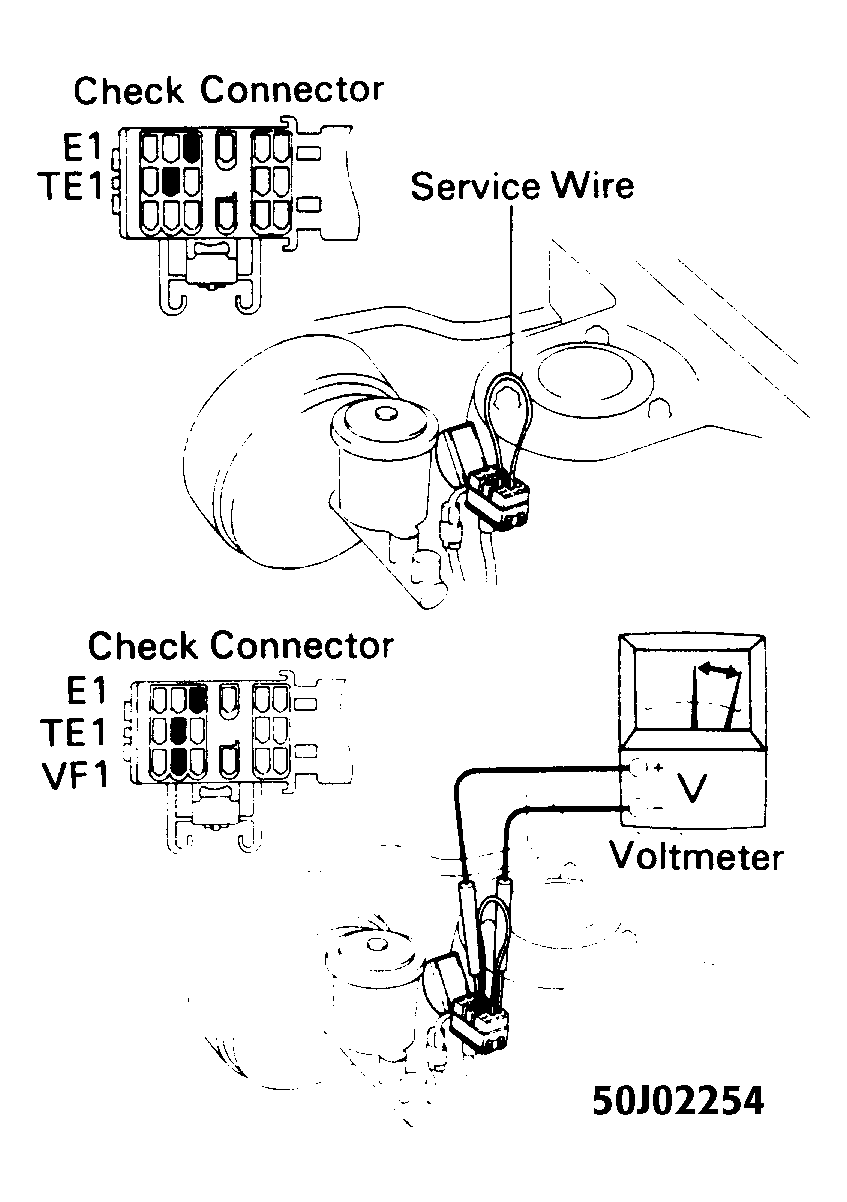

Fig 3: No. 3 Test, Code 21, Testing O2 Sensor Circuit (V6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
