Test No. 6, Codes 25 & 26, O2 Sensor Circuit (4WD)

Fig 1: No. 6 Test, Codes 25 & 26 Schematic, O2 Sensor Ckt (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

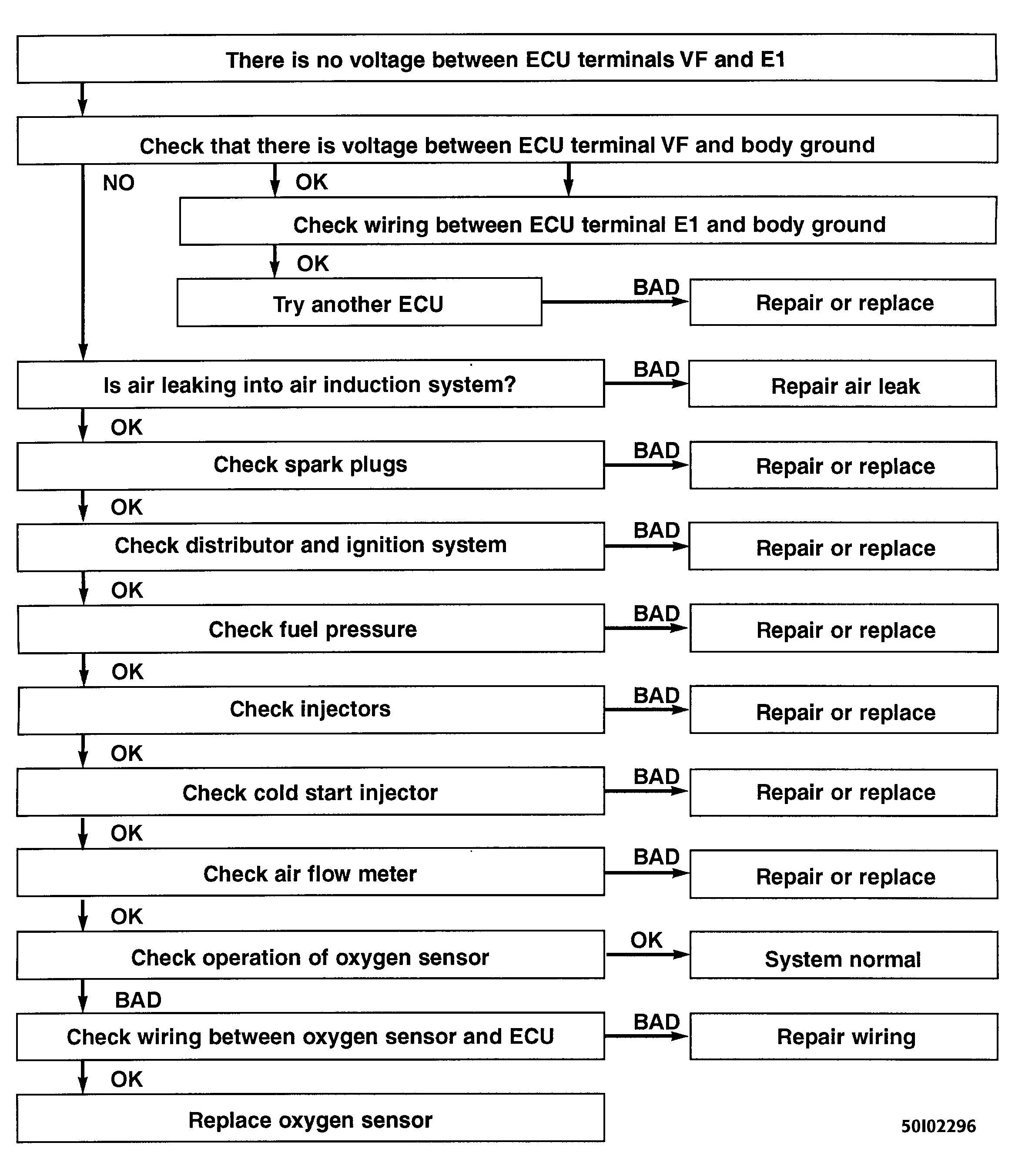

Fig 2: No. 6 Test, Codes 25 & 26 Flow Chart, O2 Sensor Ckt (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

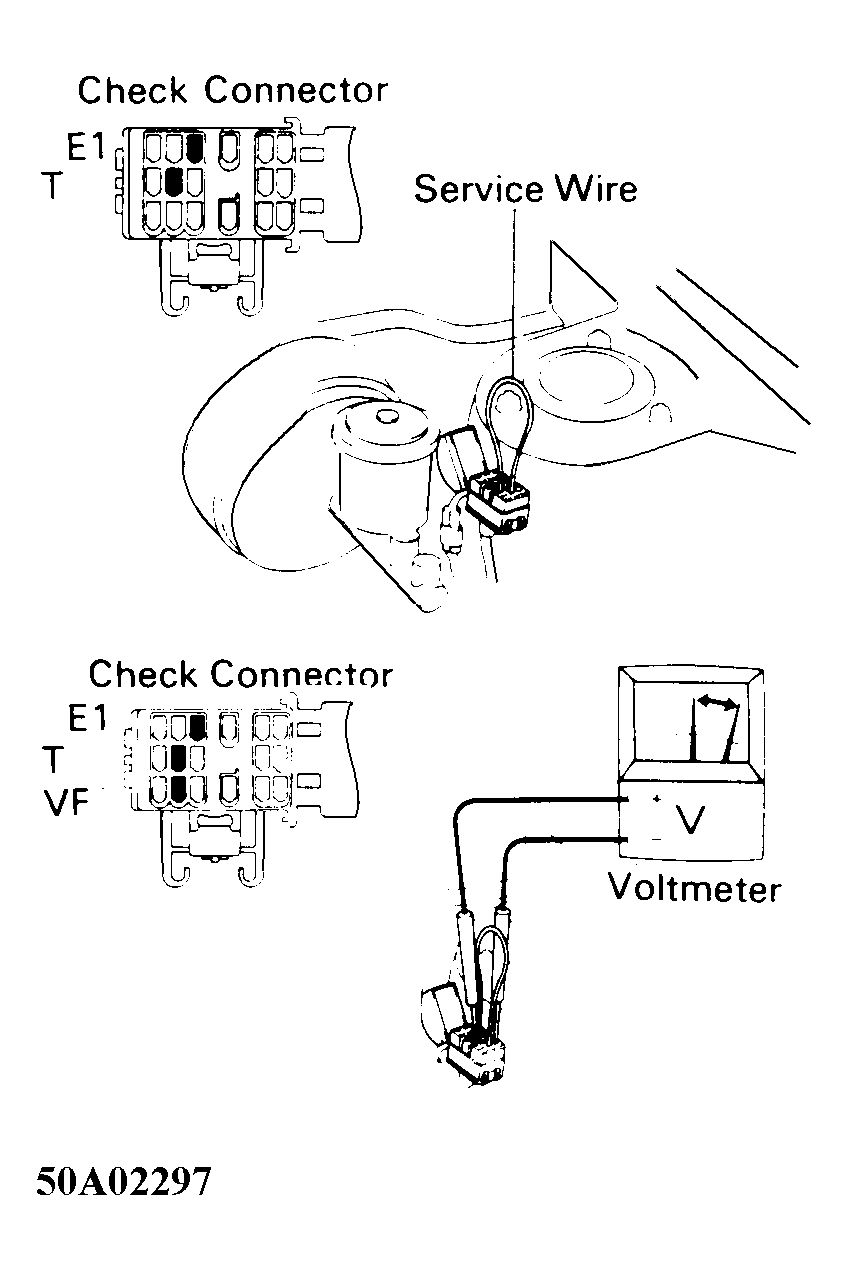

Fig 3: No. 6 Test, Codes 25 & 26, Connectors E1 & T and E1, T & VF Test (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
