Wiring Diagrams

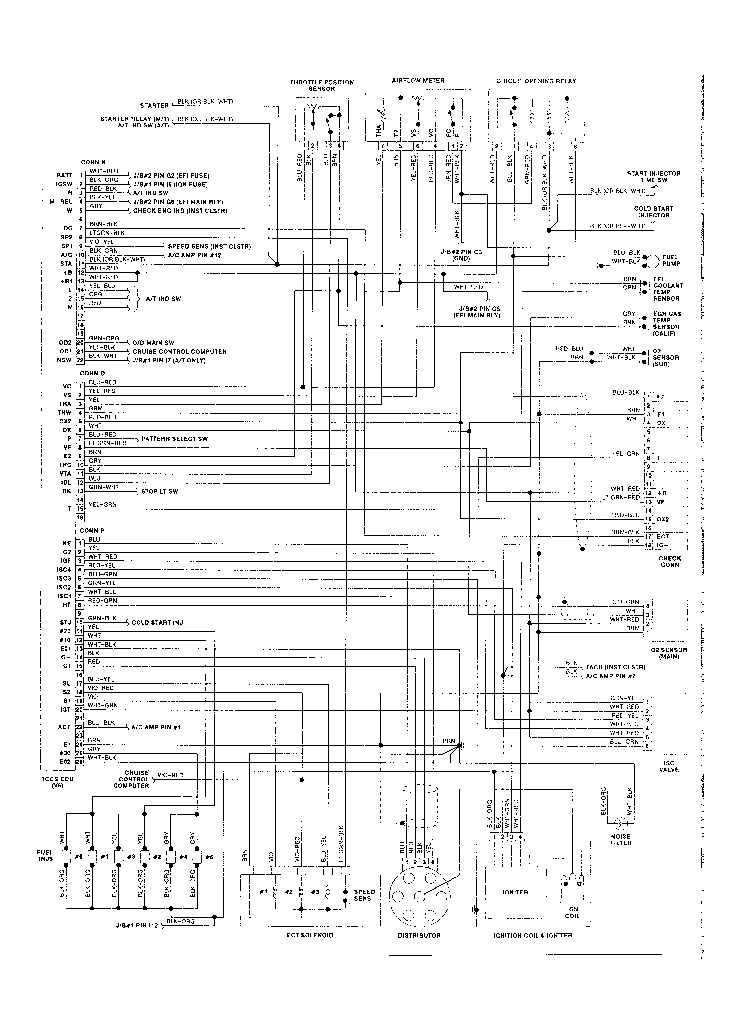

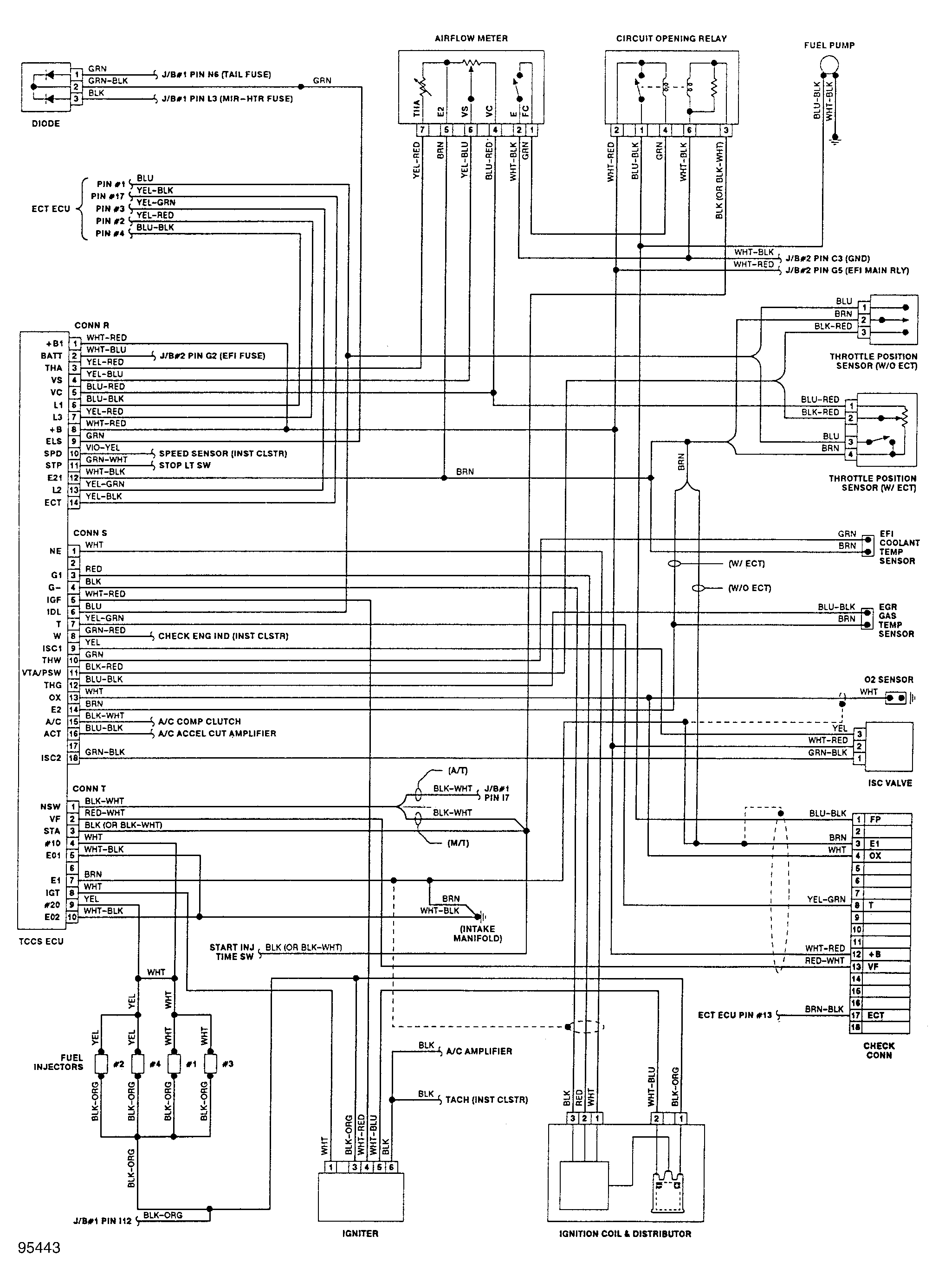

Fig 1: 4-Cylinder Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: V6 Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
