Diagnostic Circuit Check (4-CYL.)

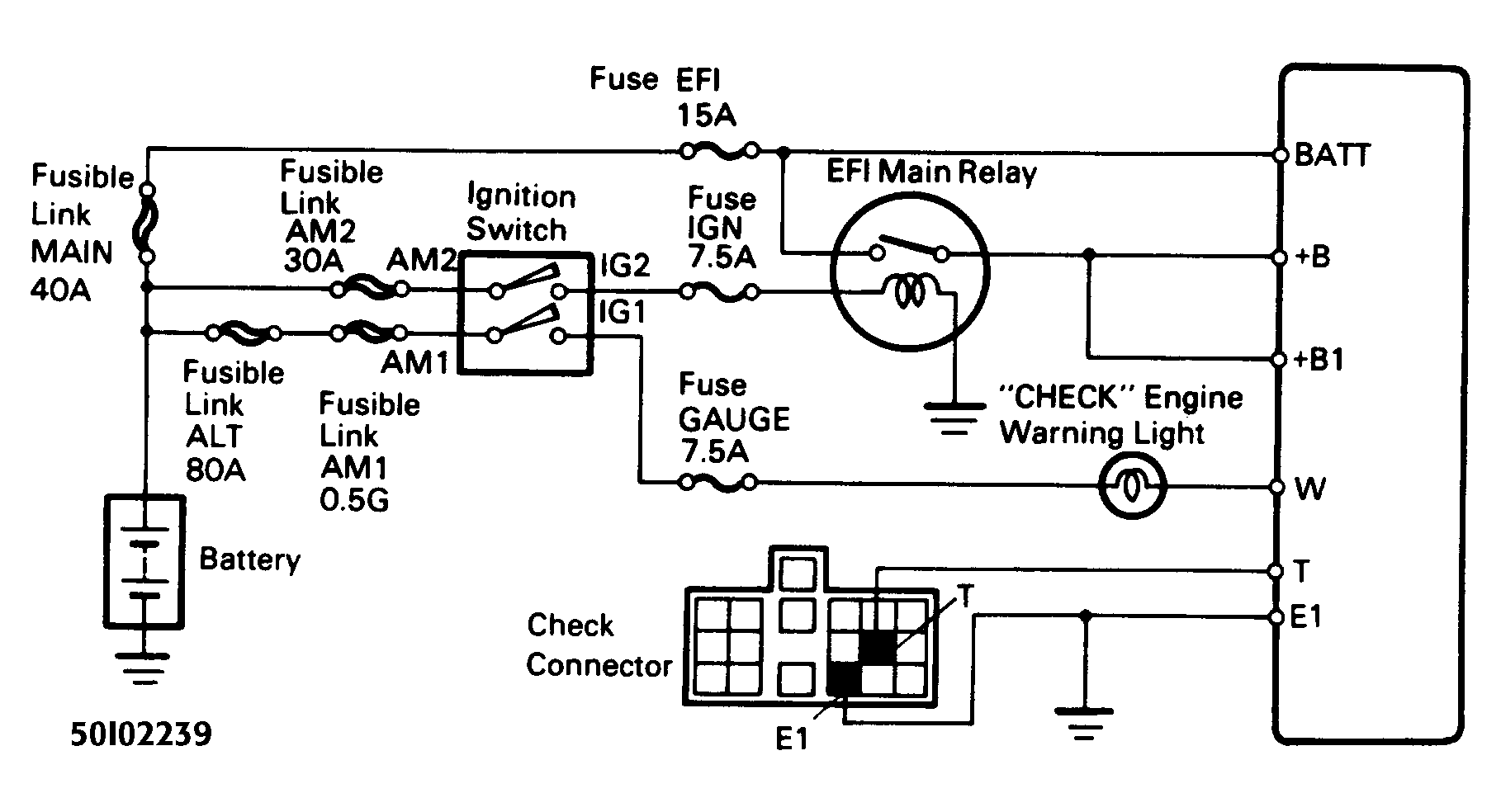

Fig 1: Diagnostic Circuit Check, Schematic (4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

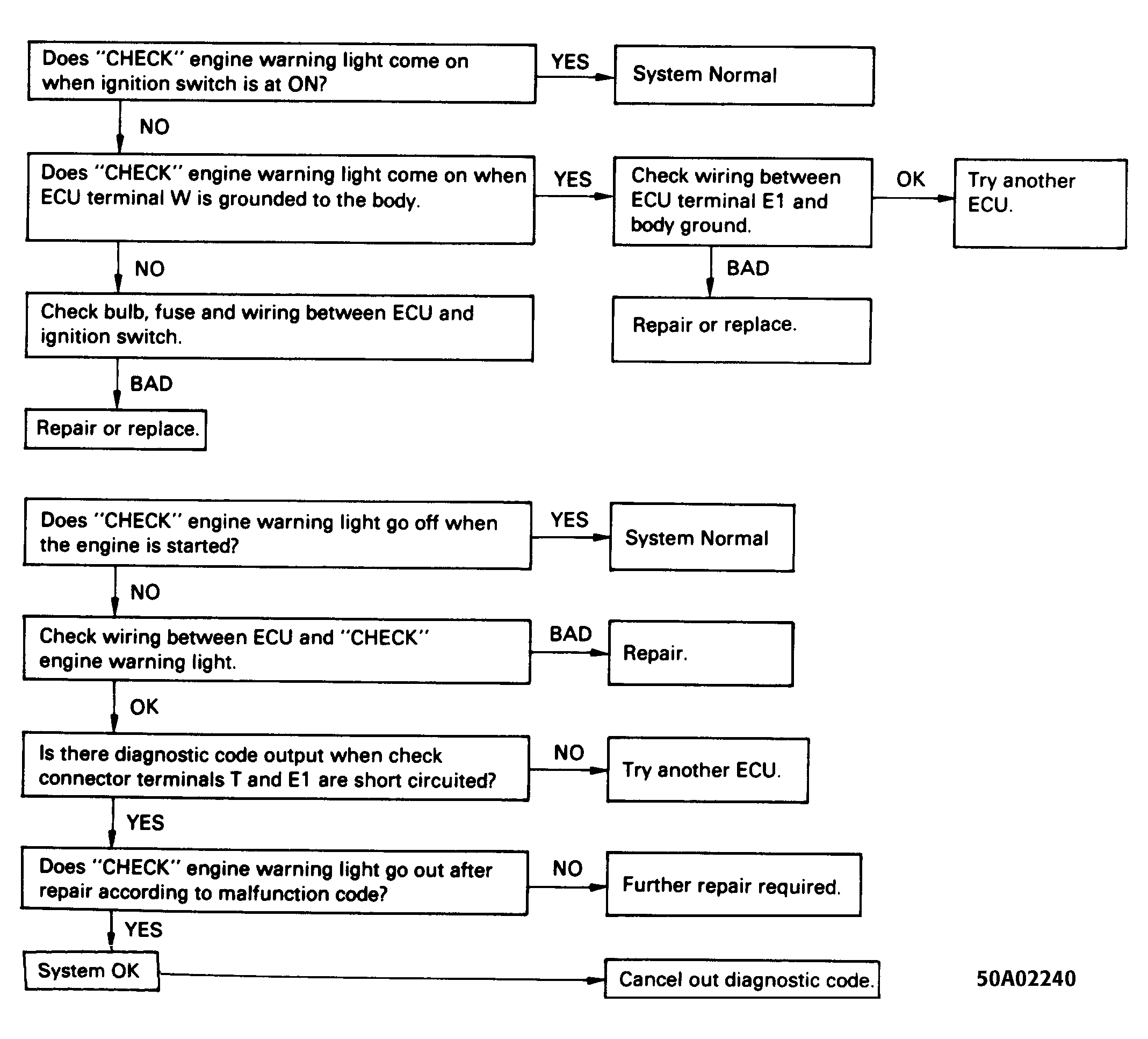

Fig 2: Diagnostic Circuit Check, Flow Chart (4-Cyl.)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
