No. 15 Test, A/C Switch Circuit

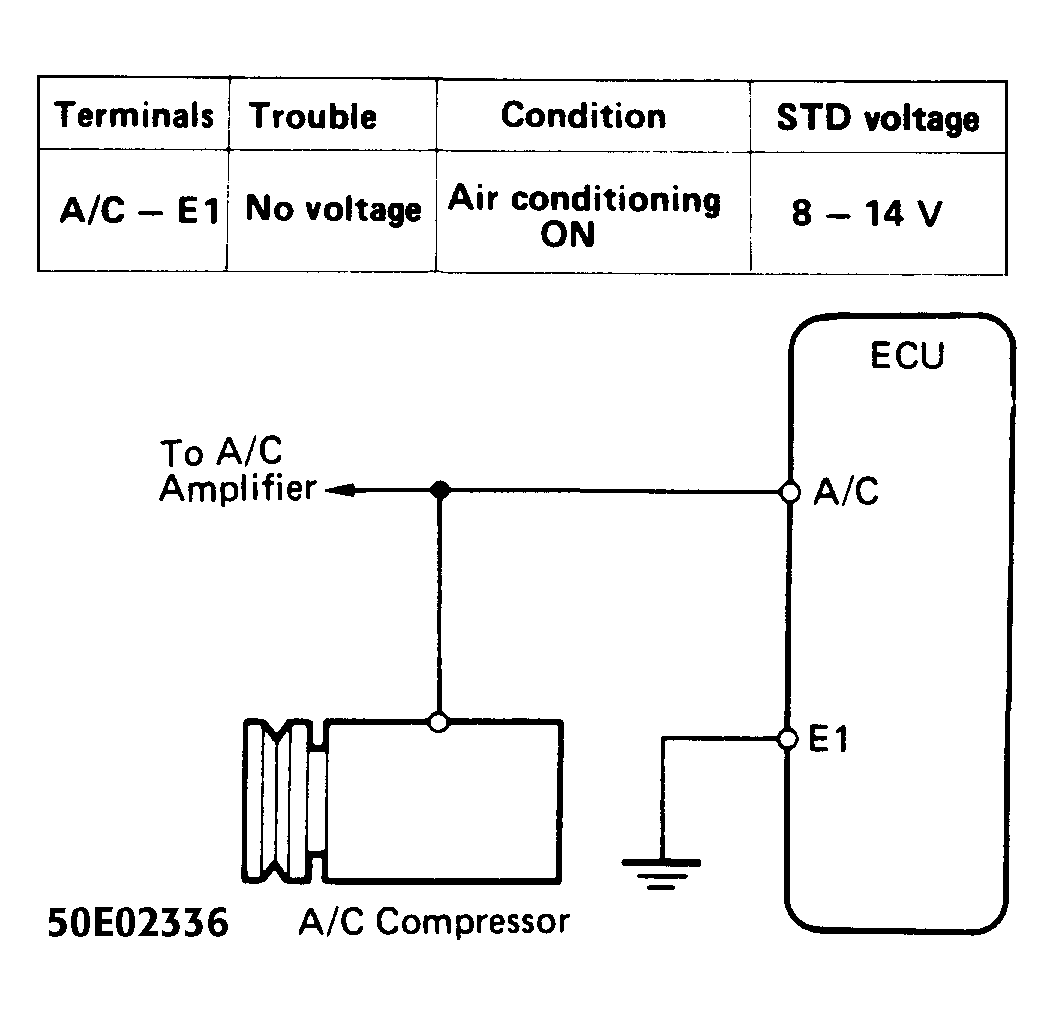

Fig 1: No. 15 Test Schematic, A/C Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

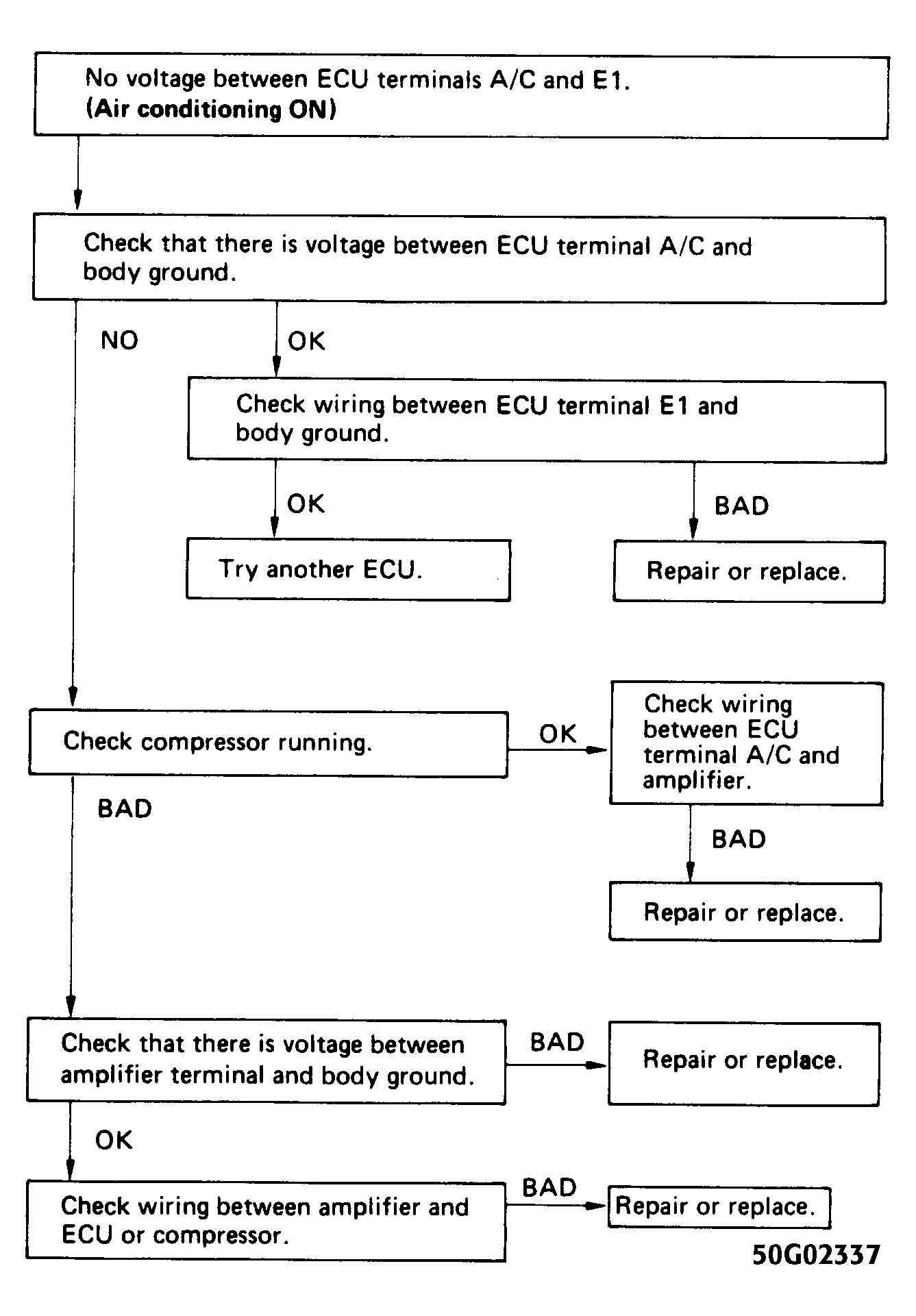

Fig 2: No. 15 Test Flow Chart, A/C Switch Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
