Wiring Diagrams

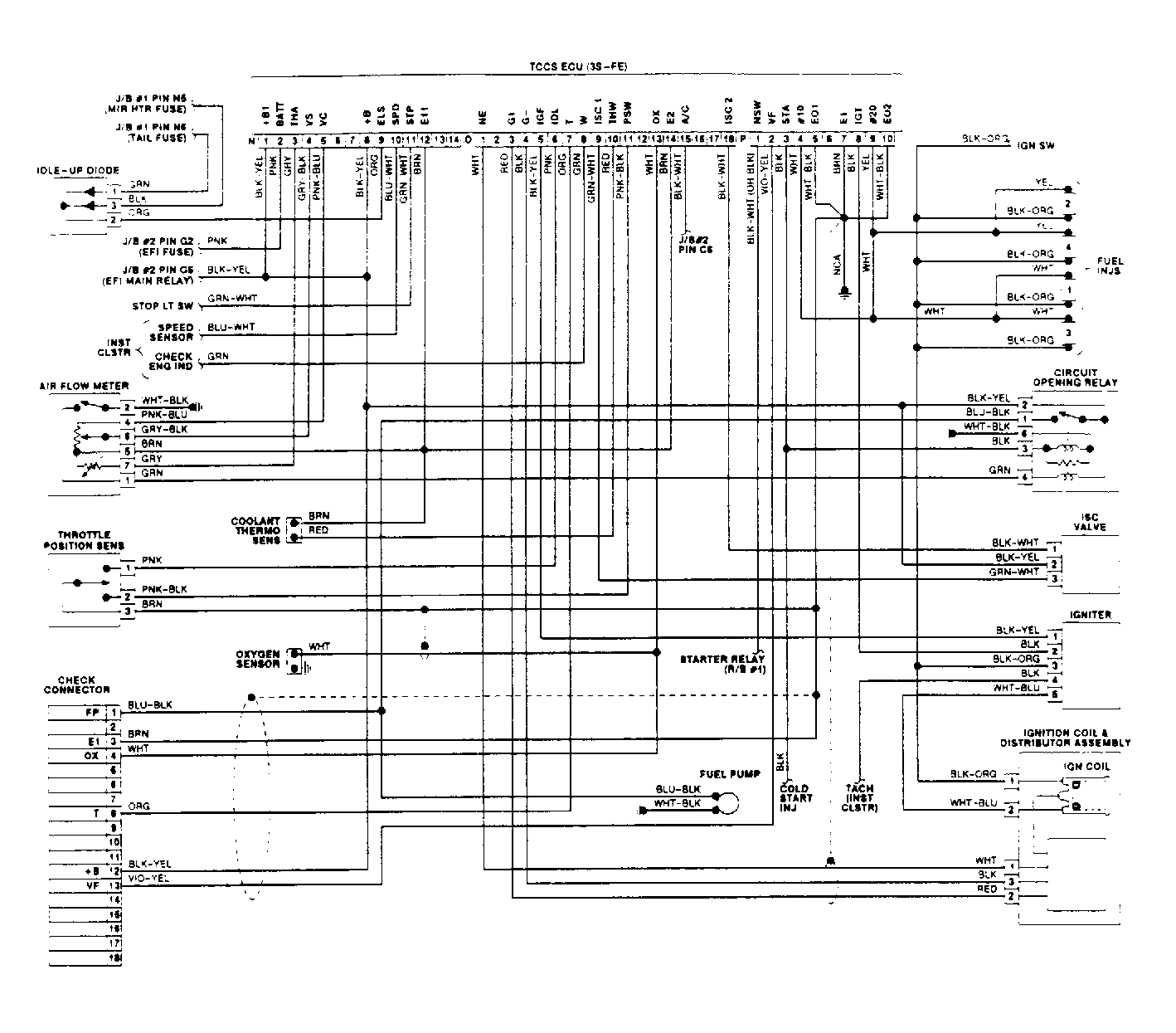

Fig 1: 3S-FE Engine Wiring Diagram
G95445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

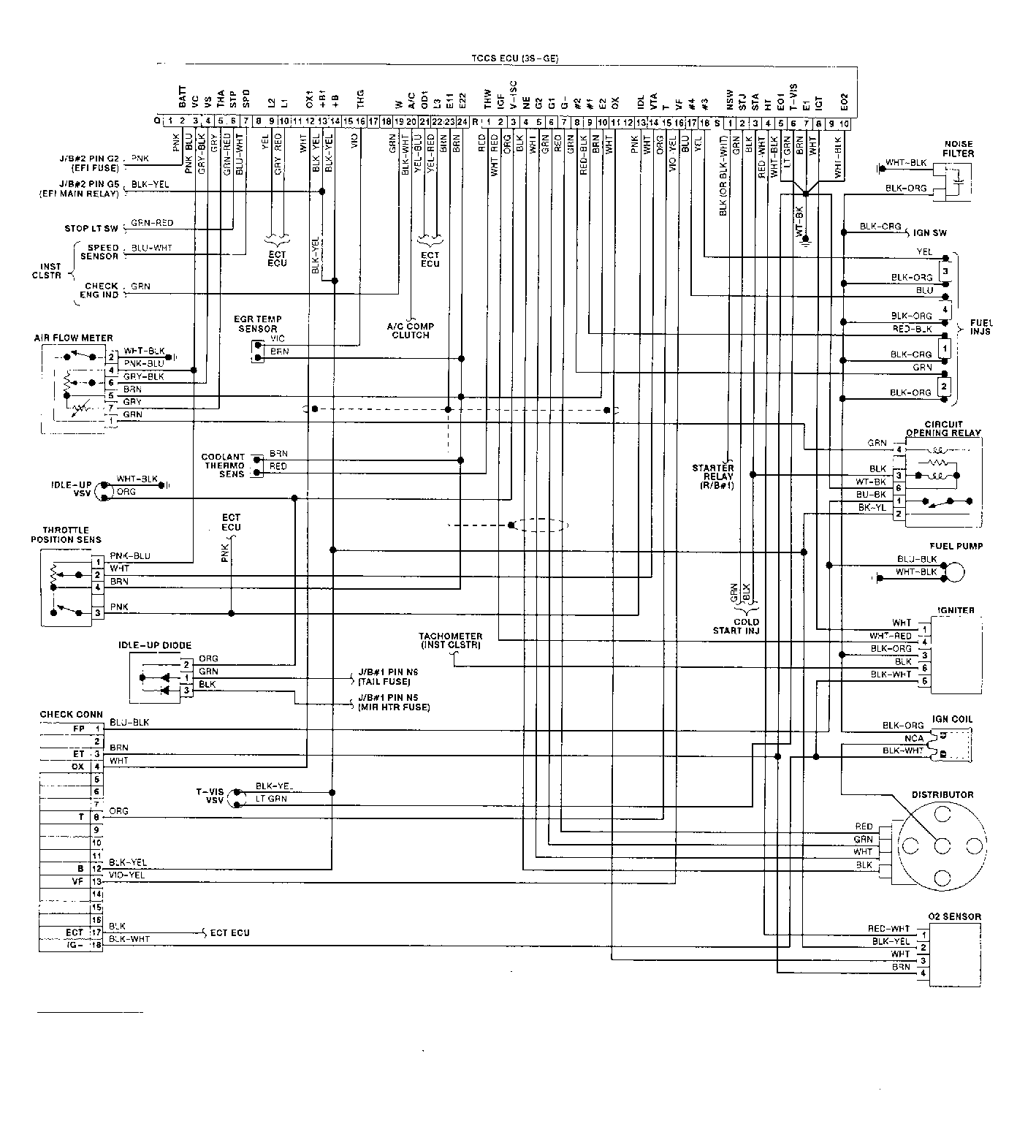

Fig 2: 3S-GE Engine Wiring Diagram
G95446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

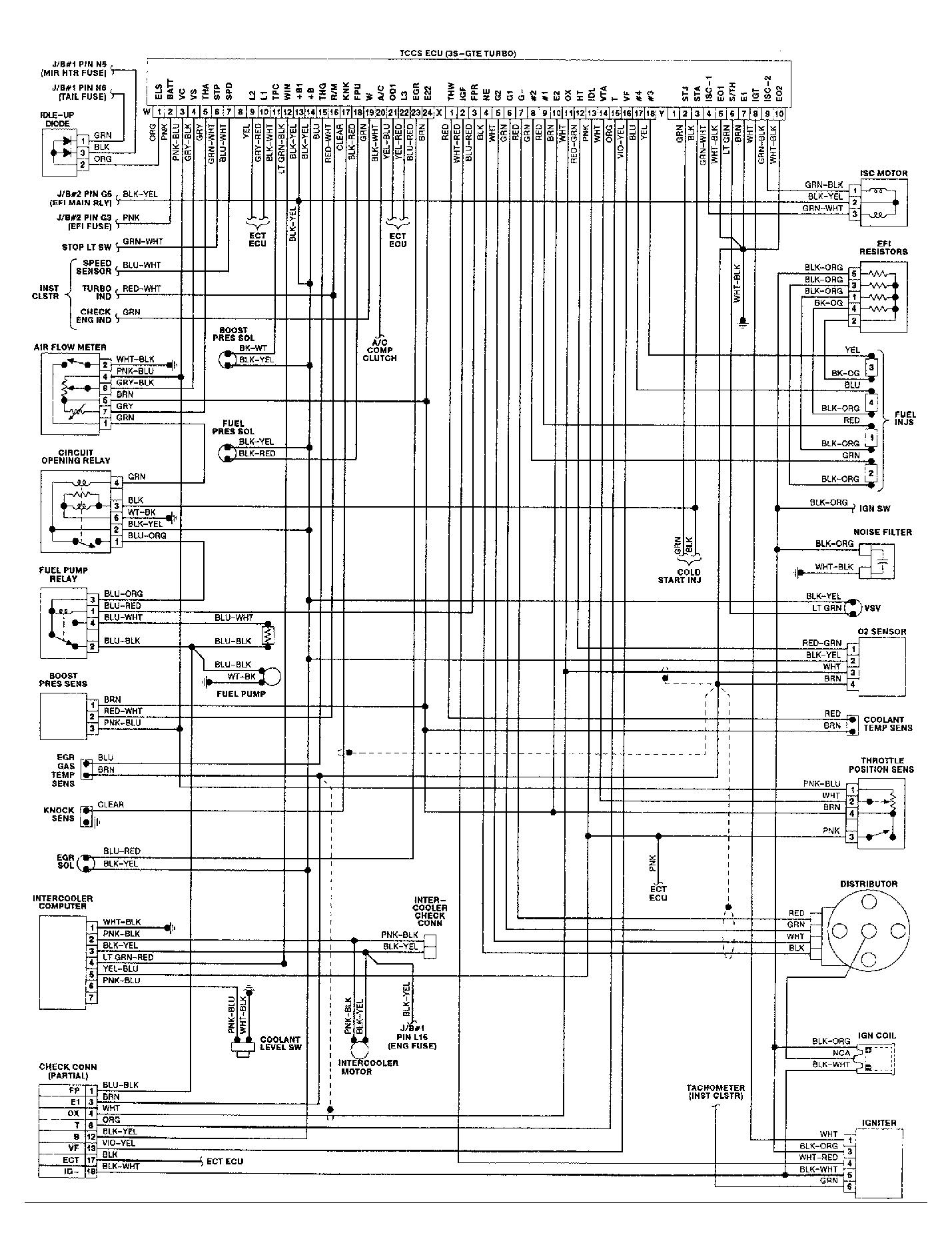

Fig 3: 3S-GTE Engine Wiring Diagram
G95447Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
