Code 41 - Throttle Switch Signal

There is an open or short circuit in the throttle switch signal (THS).

Trouble Area:

• Throttle switch circuit
• Throttle switch
• ECU

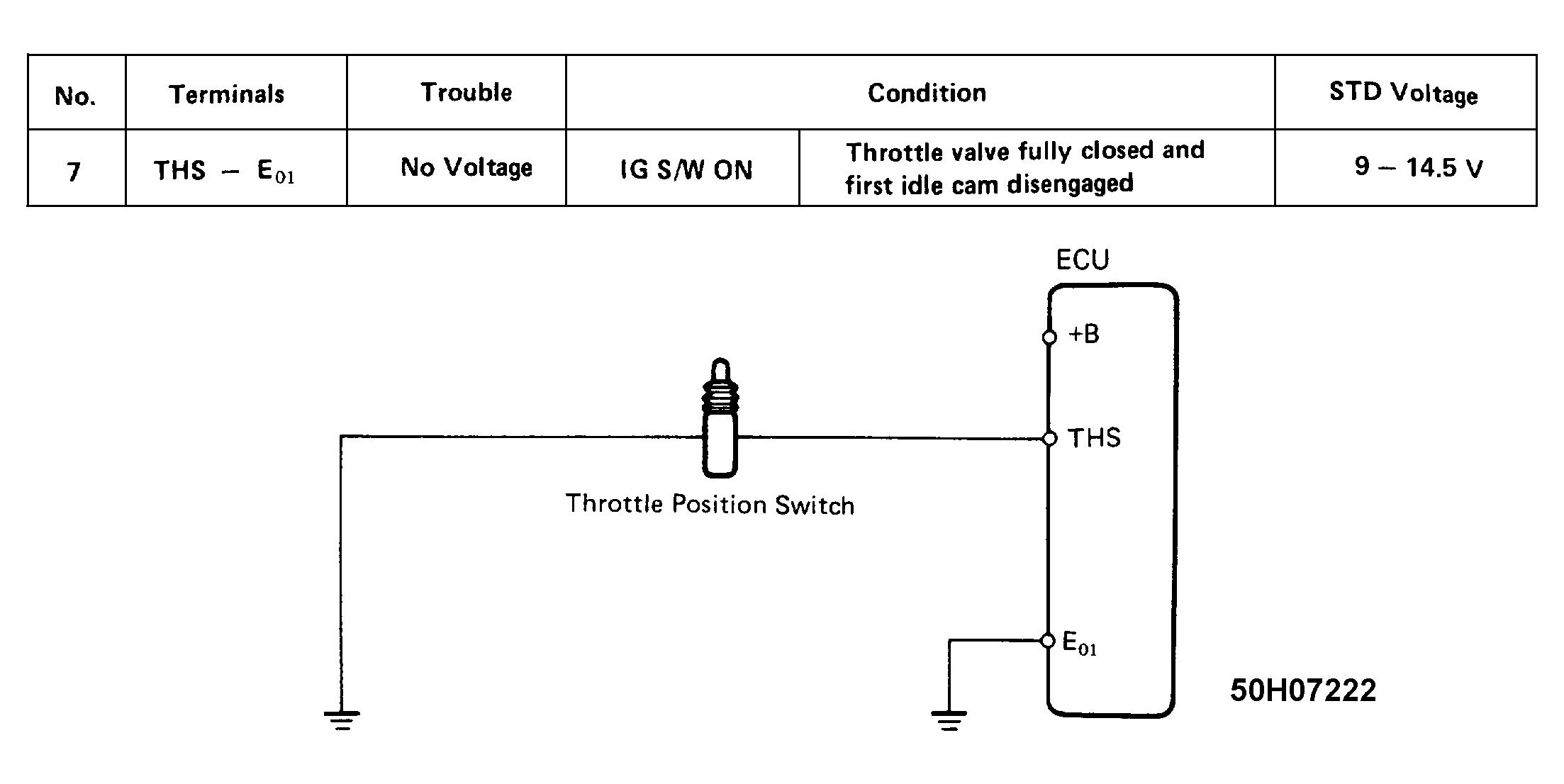

Fig 1: Code 41 - Throttle Switch Signal Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

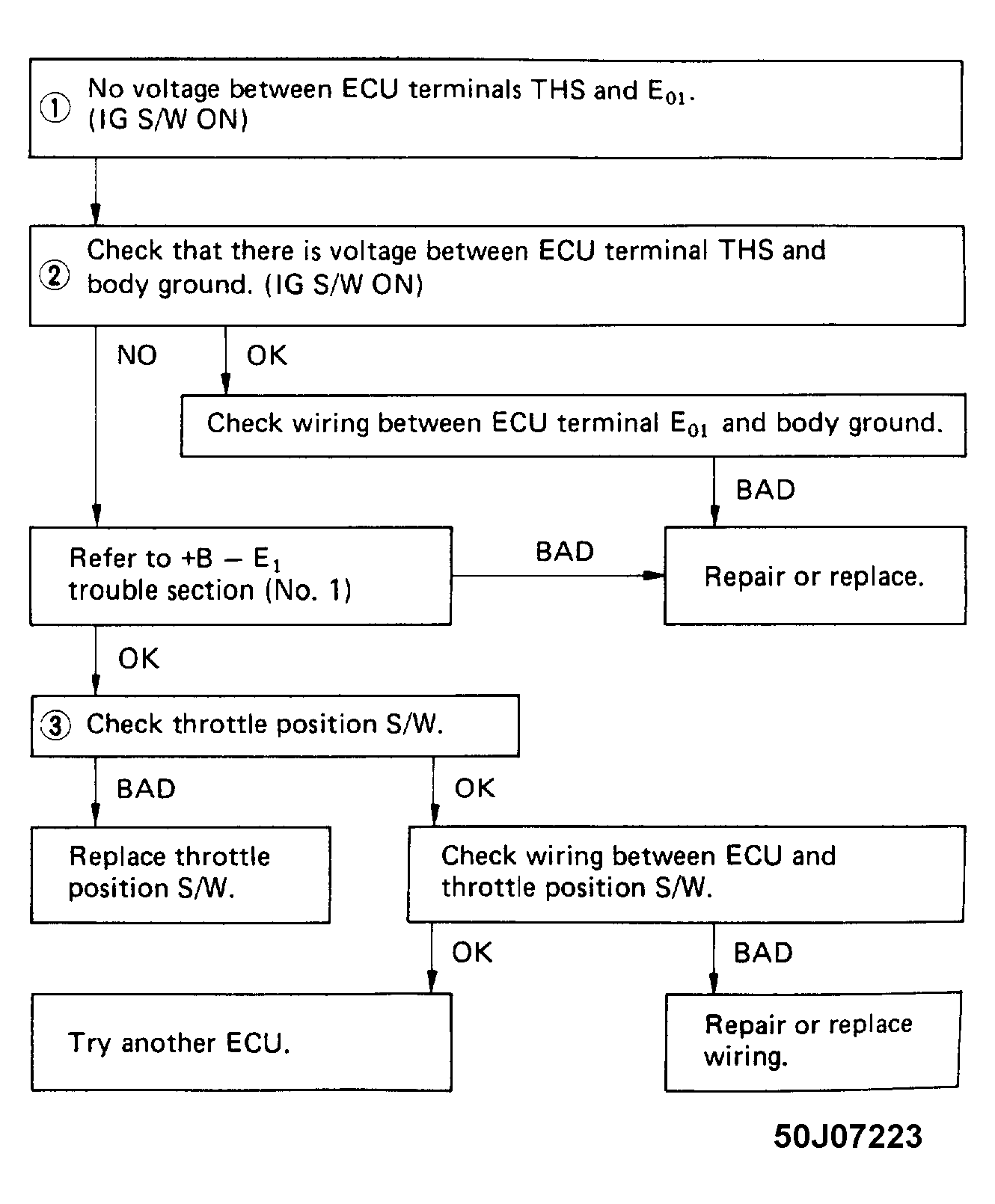

Fig 2: Code 41 - Throttle Switch Signal Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
