Corolla LE, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Computer Control System
›
Diagnostic Charts
›
Diagnostic Circuit Check
Diagnostic Circuit Check

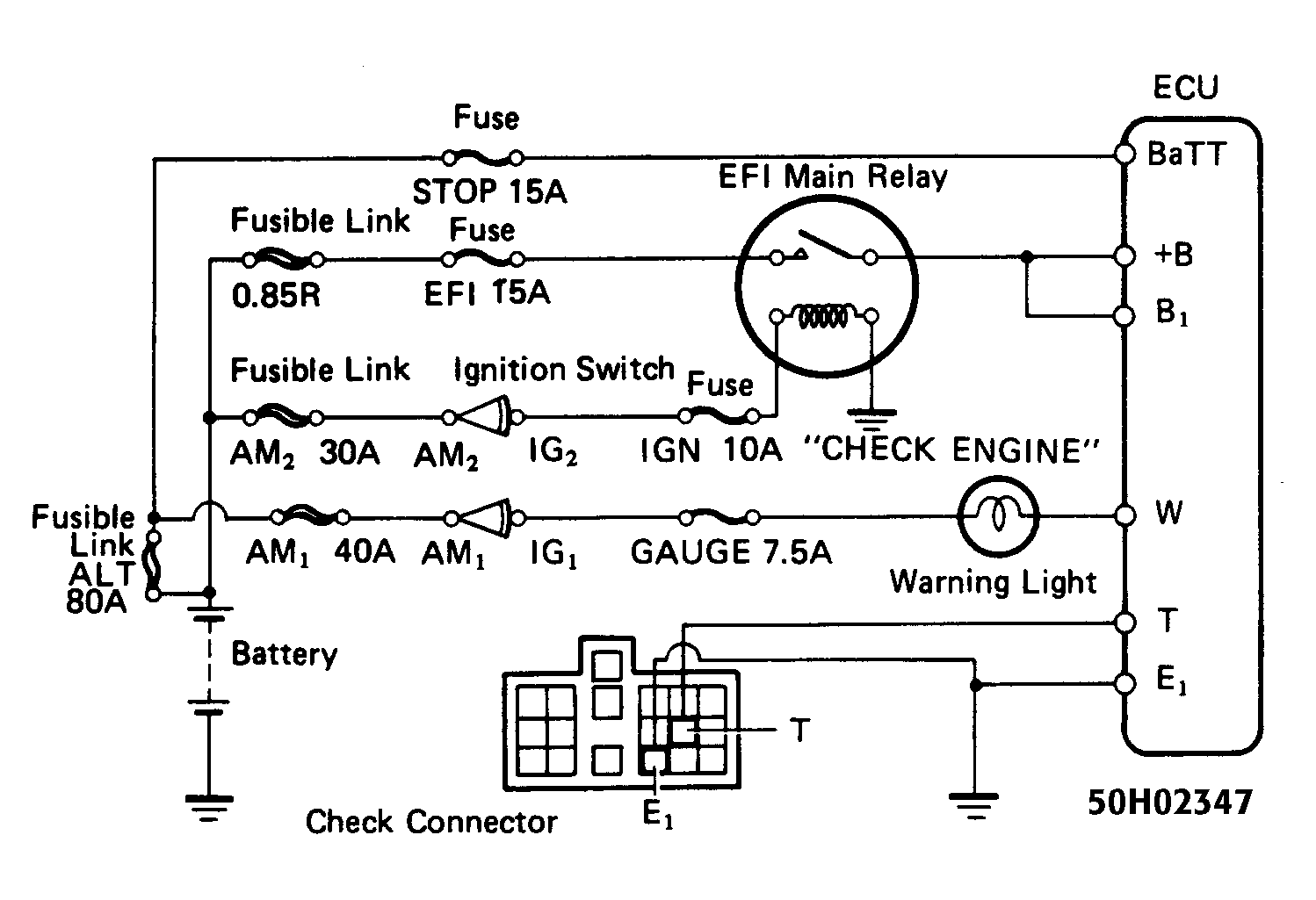

Fig 1: Diagnostic Circuit Check, Schematic (FX-16)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Diagnostic Circuit Check, Schematic (Exc. FX-16)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

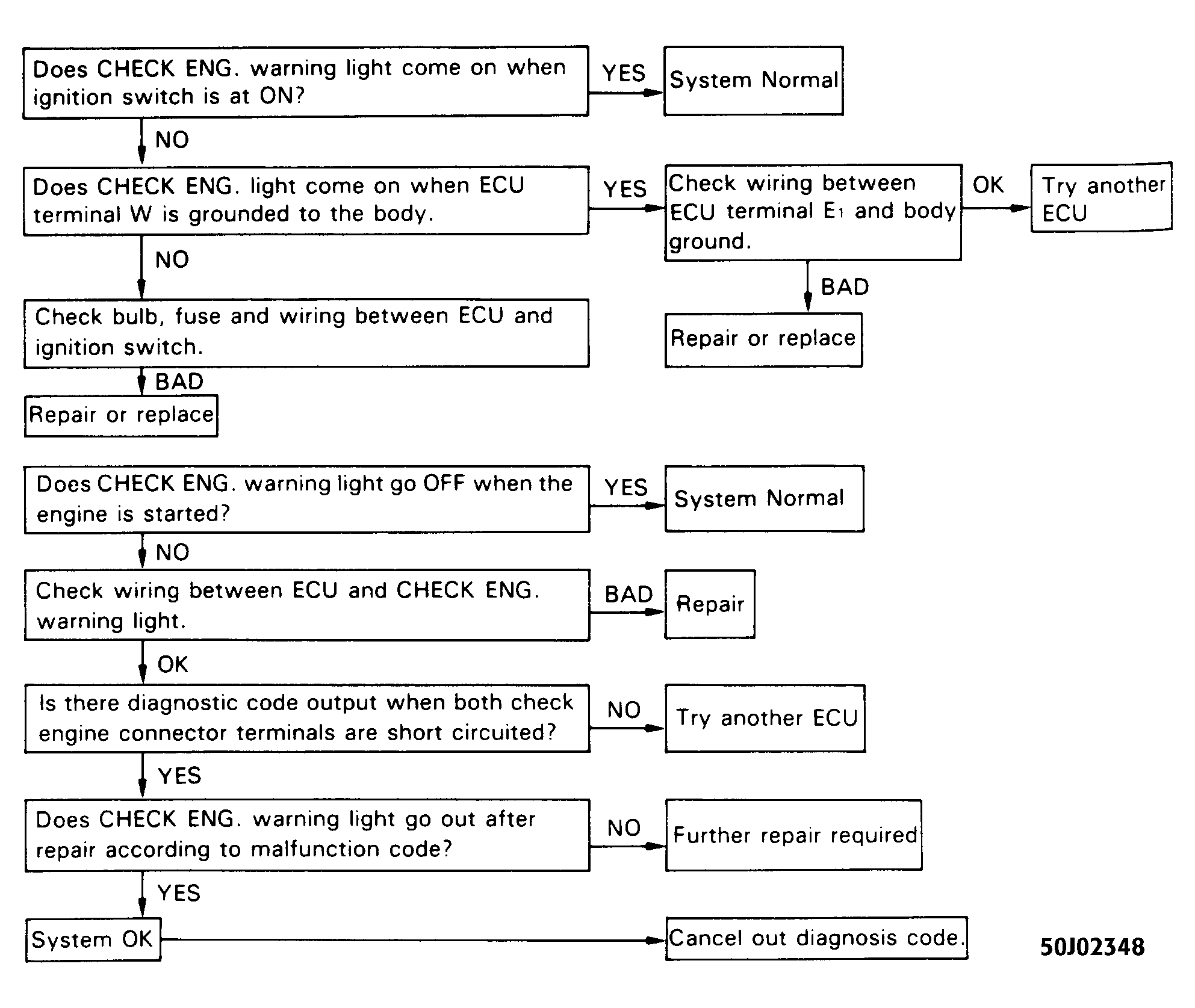

Fig 3: Diagnostic Circuit Check, Flow Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
