No. 12 Test, Injector Circuit Test

Fig 1: No. 12 Test, Injector Circuit Test, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

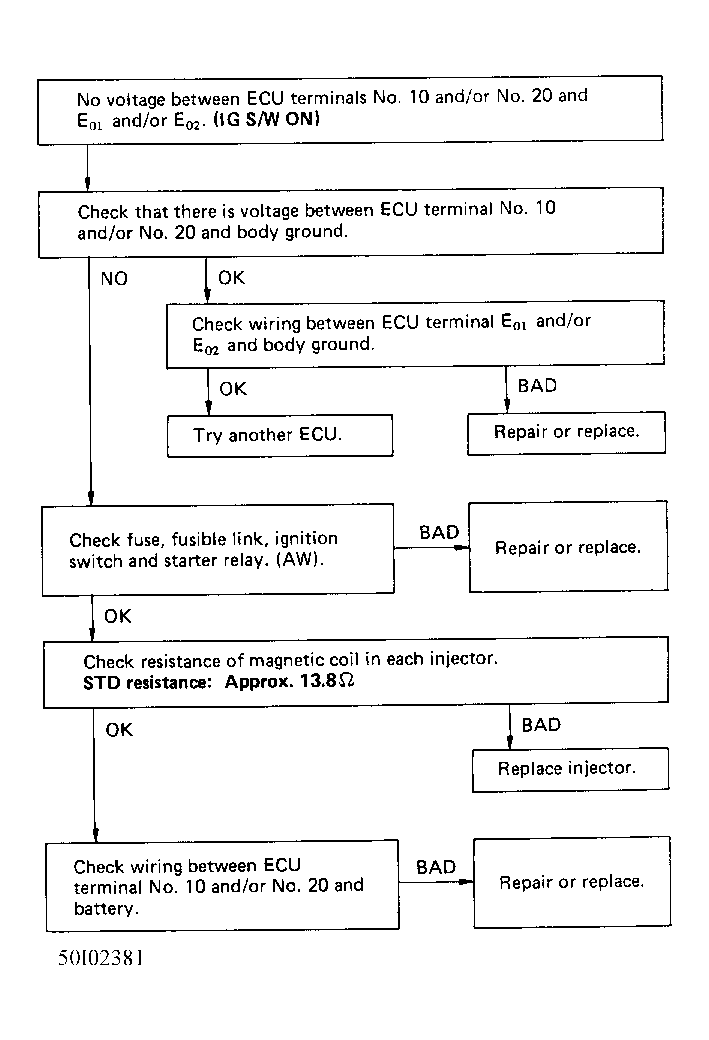

Fig 2: No. 12 Test, Injector Circuit Test, Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: No. 12 Test, Magnetic Coil Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
