Corolla LE, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Computer Control System
›
Wiring Diagrams
Wiring Diagrams

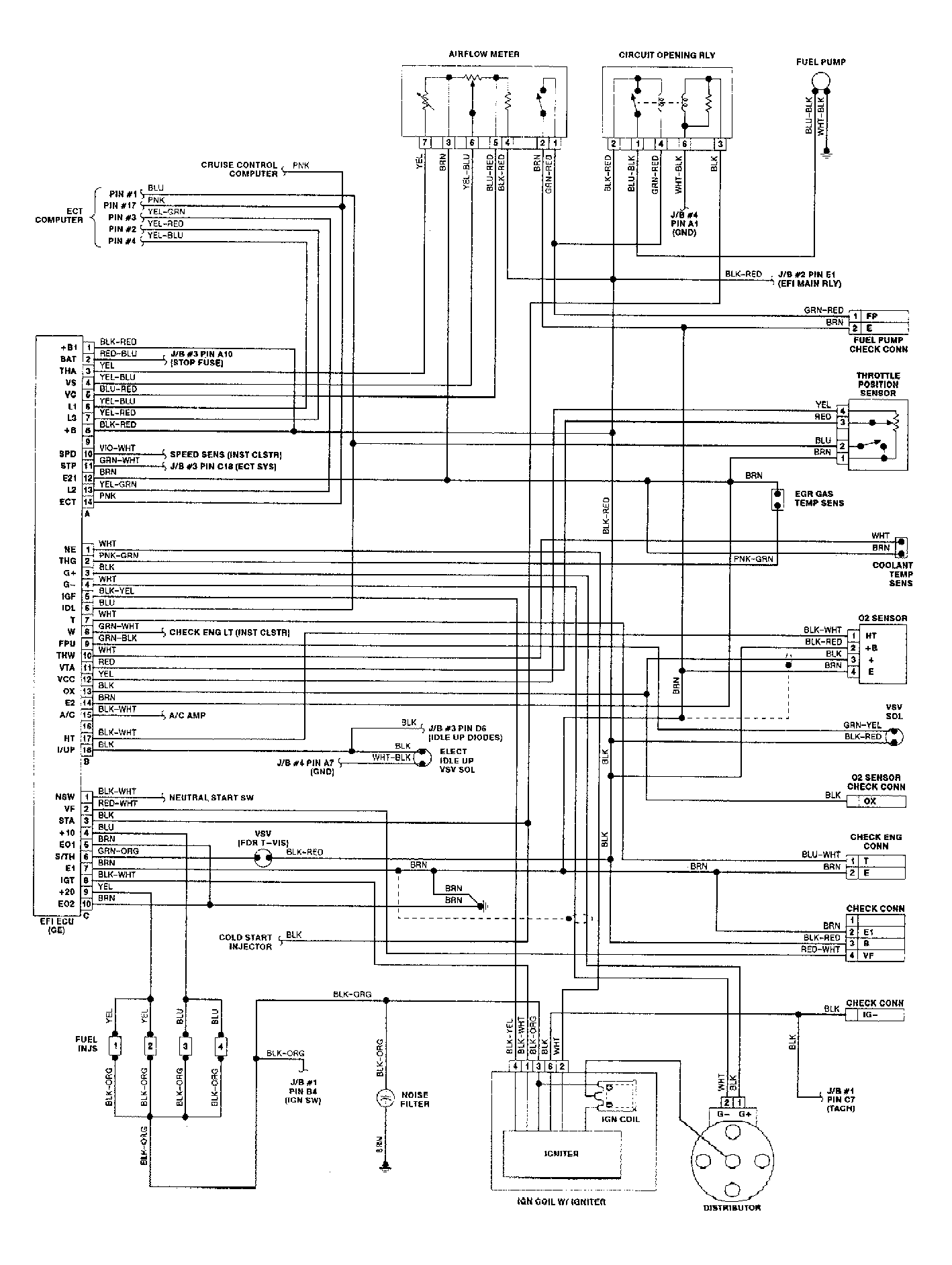

Fig 1: Exc. FX-16 Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

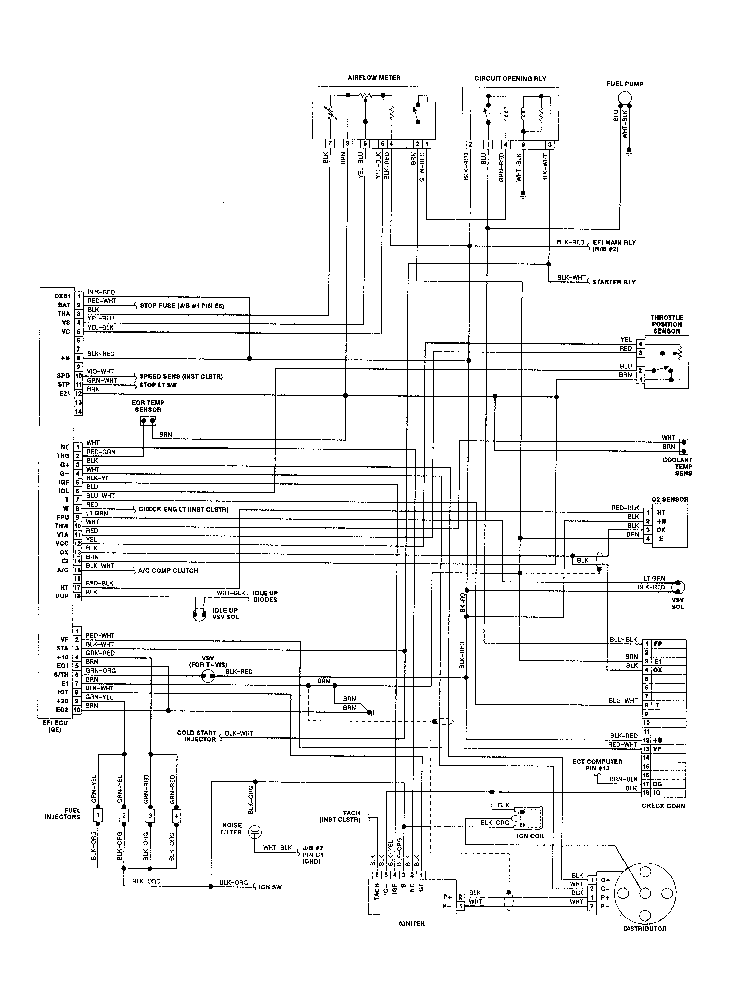

Fig 2: FX-16 Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
