No. 3 Test, Code 23, TPS Signal

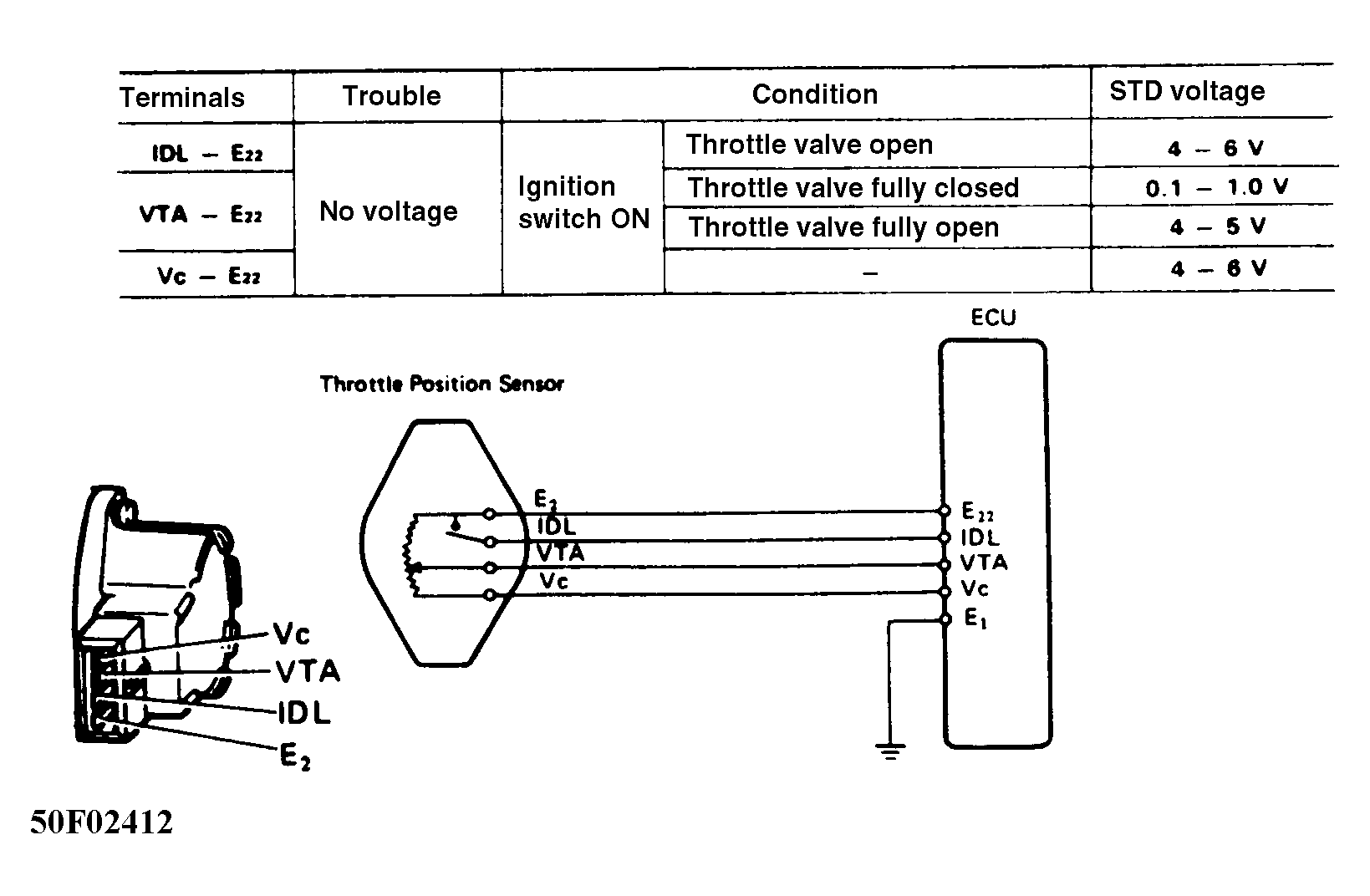

Fig 1: No. 3 Test, Code 23 Schematic, TPS Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

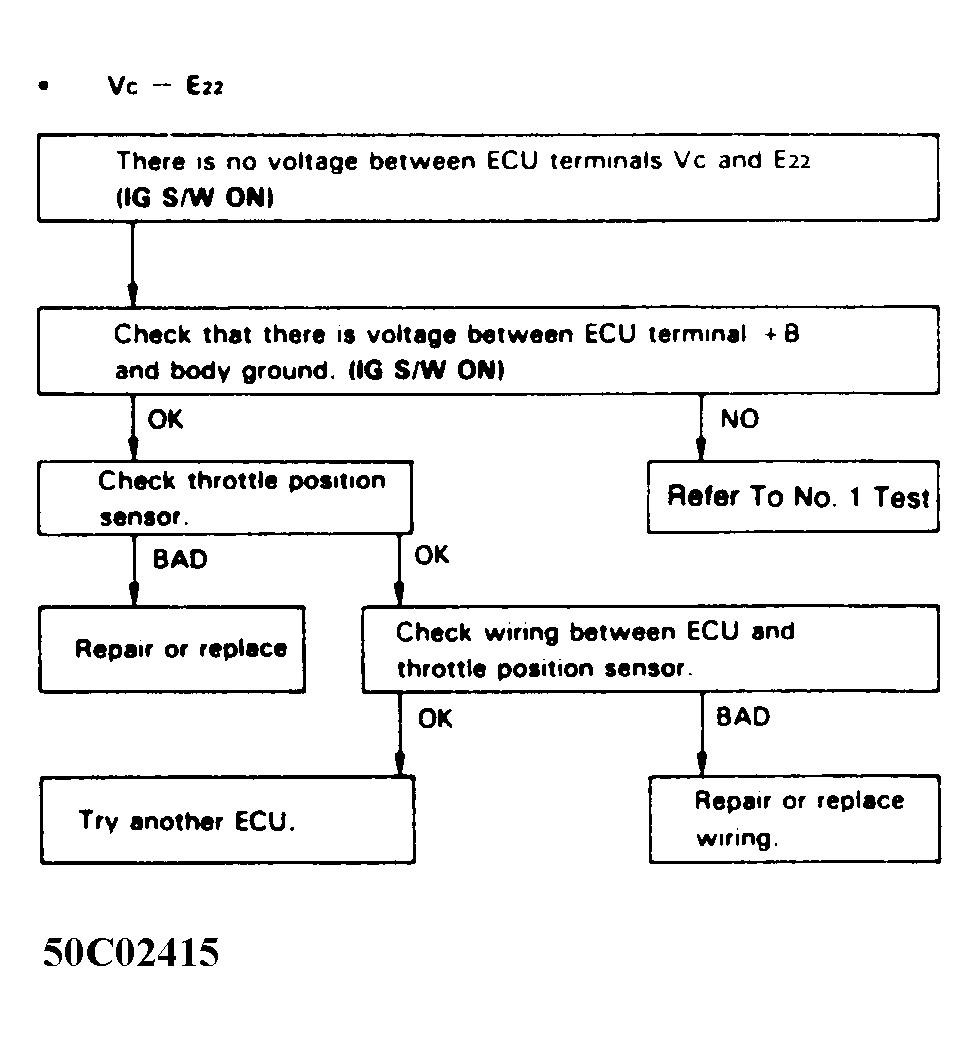

Fig 2: No. 3 Test, Code 23, TPS Signal (Flow Chart 1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

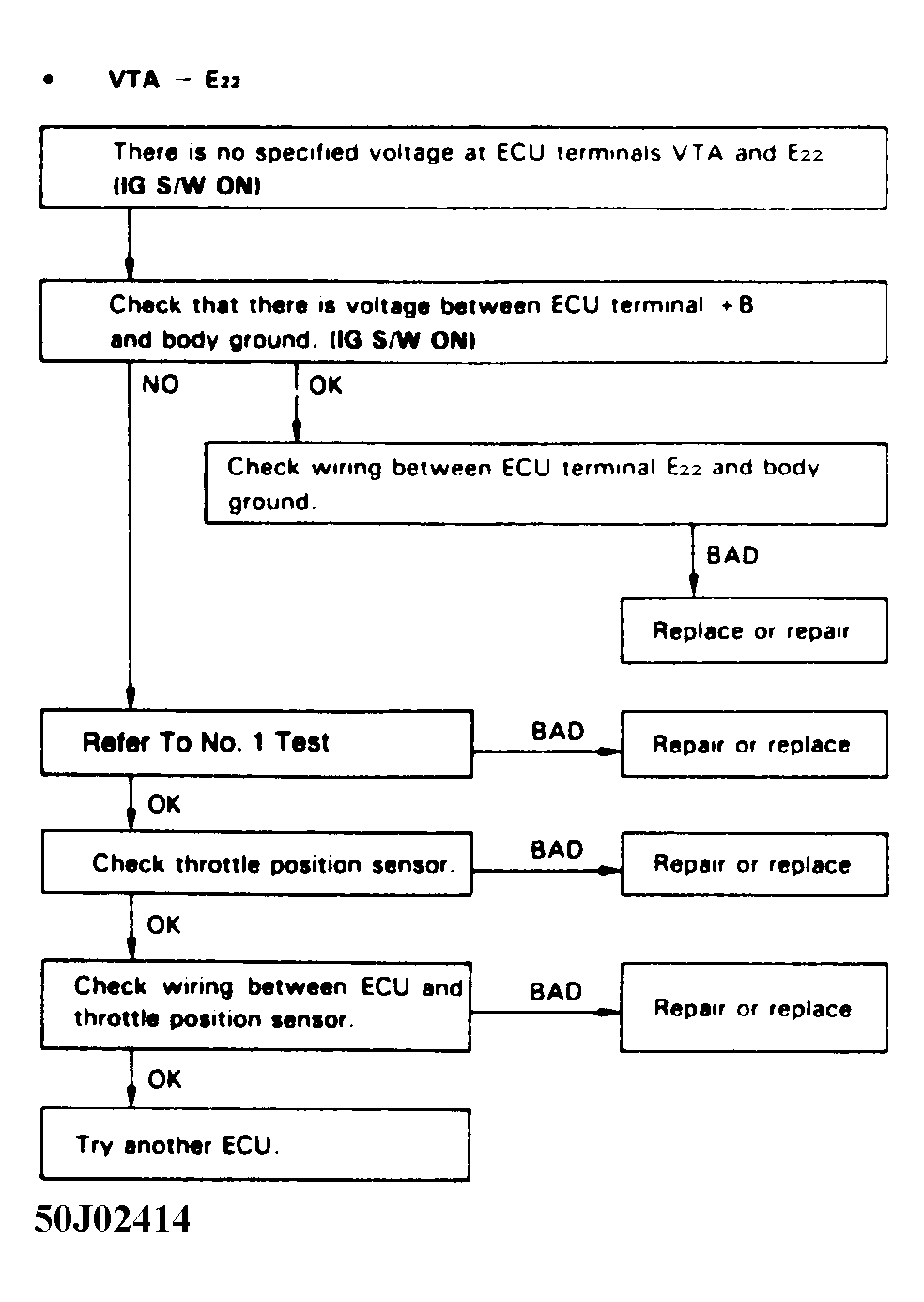

Fig 3: No. 3 Test, Code 23, TPS Signal (Flow Chart 2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

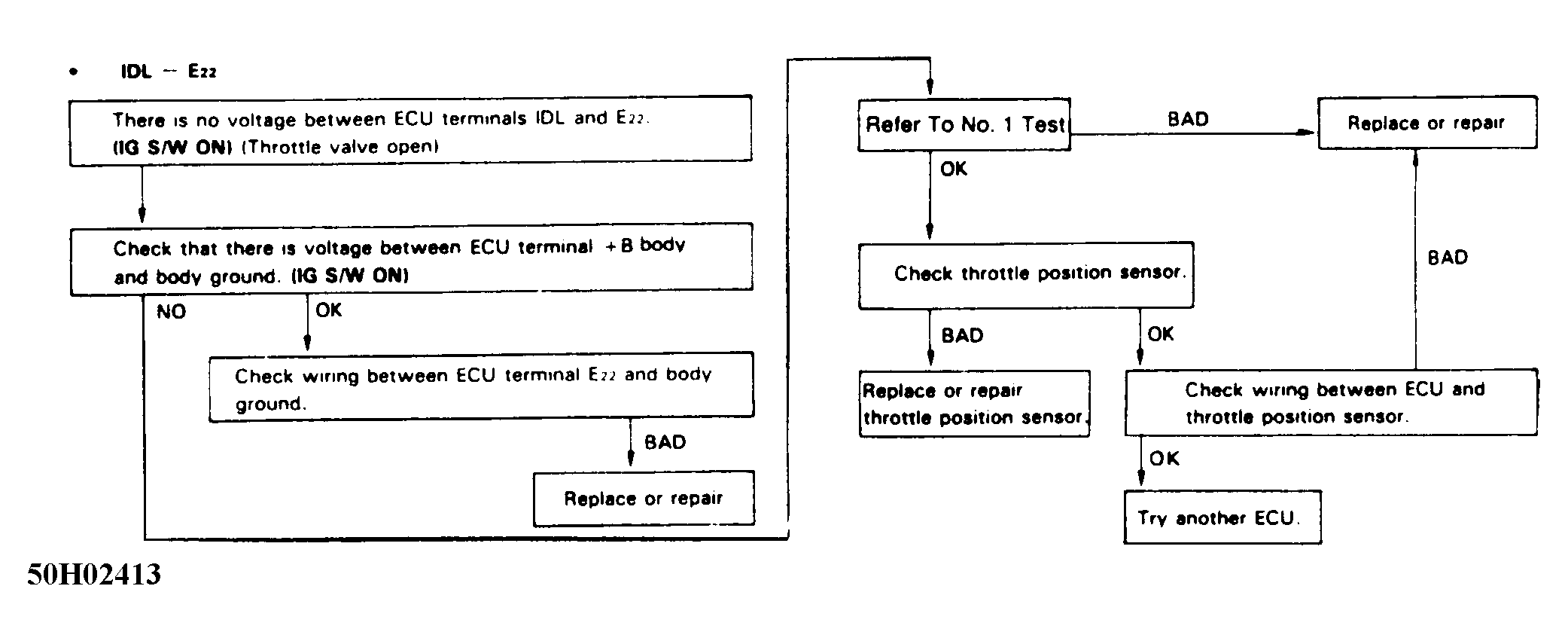

Fig 4: No. 3 Test, Code 23, TPS Signal (Flow Chart 3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
