No. 5 Test, Airflow Meter Signal

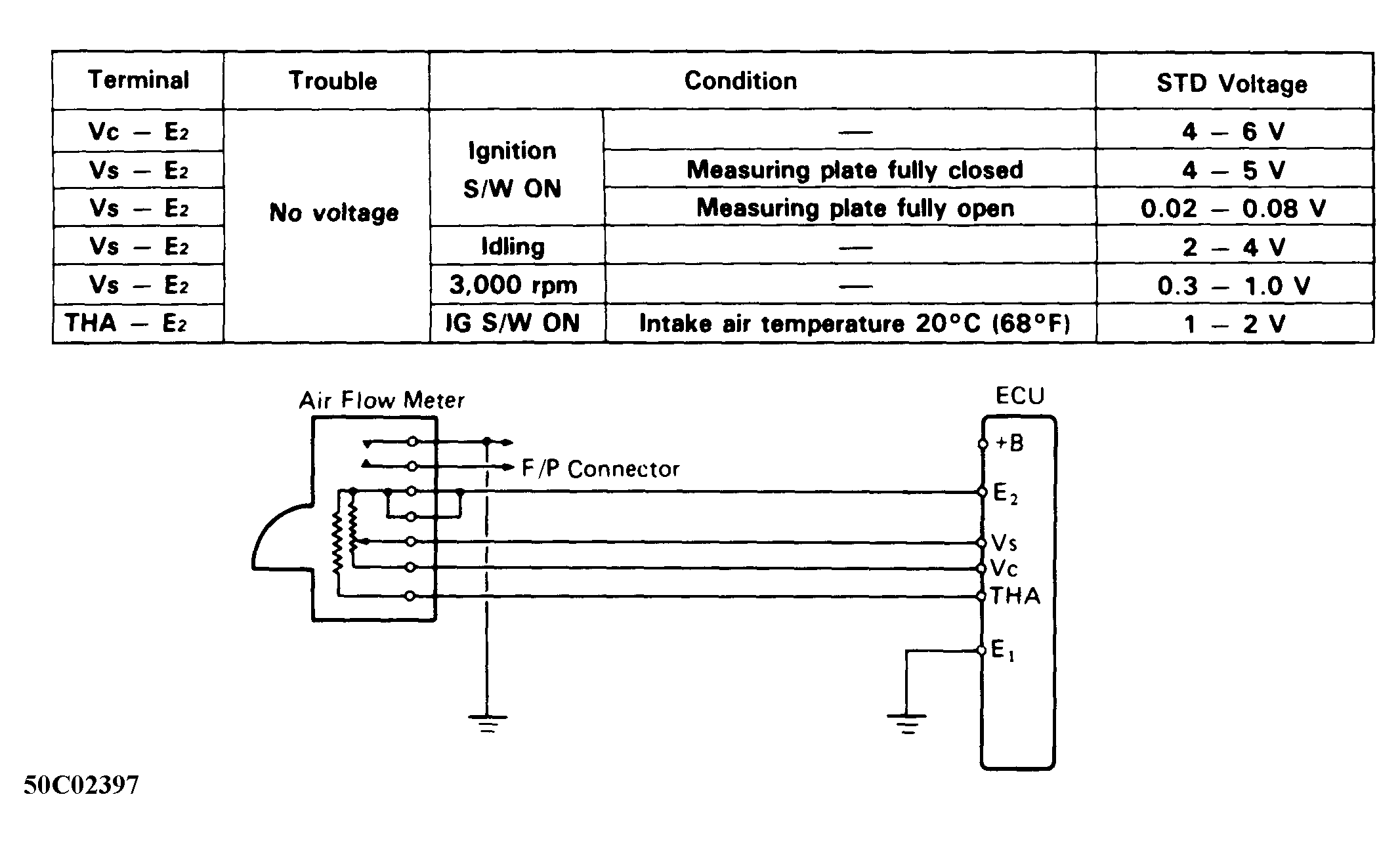

Fig 1: No. 5 Test, Airflow Meter Signal, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: No. 5 Test, Airflow Meter Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: No. 5 Test, Air Temp Sens. Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

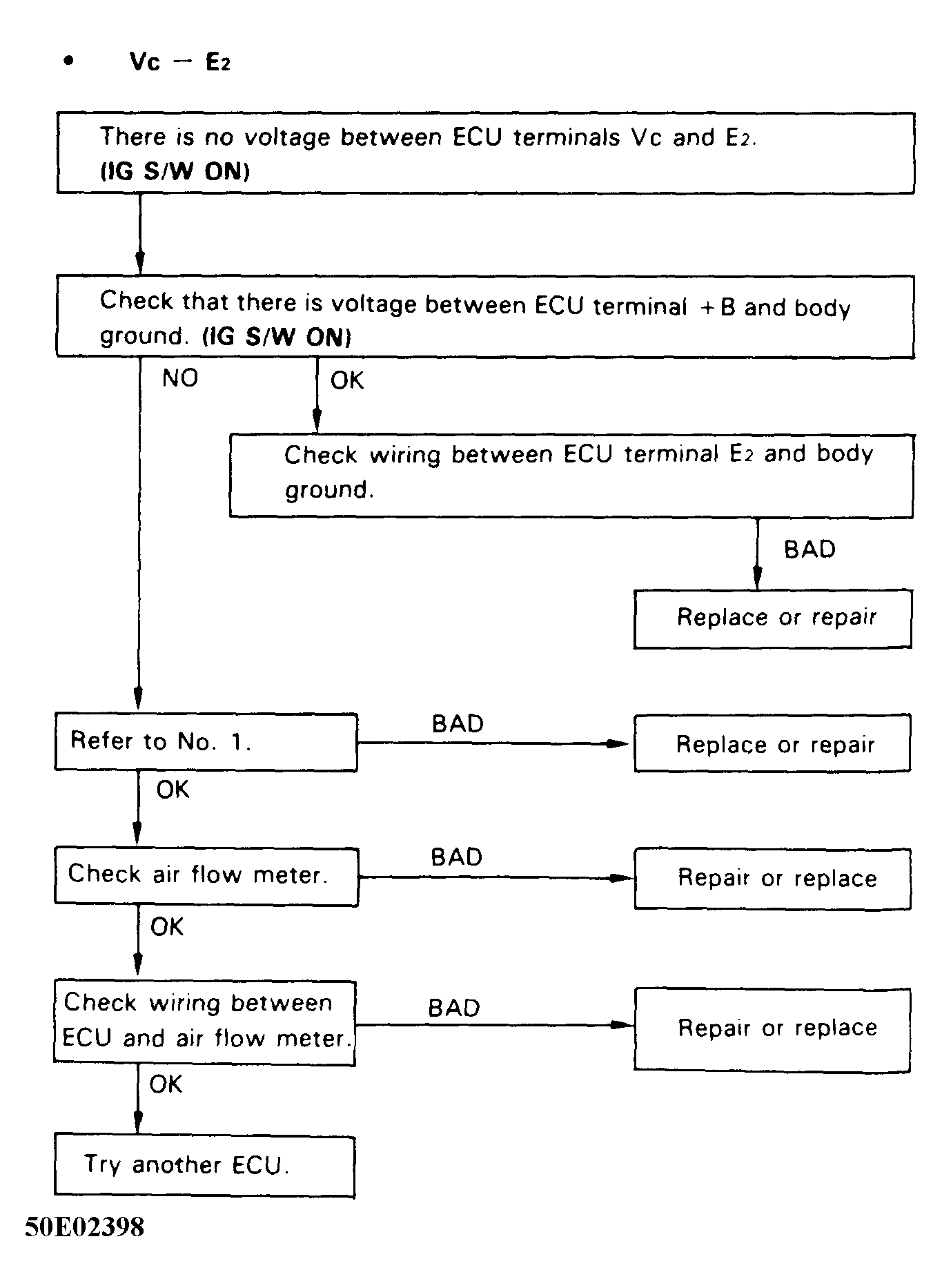

Fig 4: No. 5 Test, Airflow Meter Signal (Flow Chart 1 of 3)

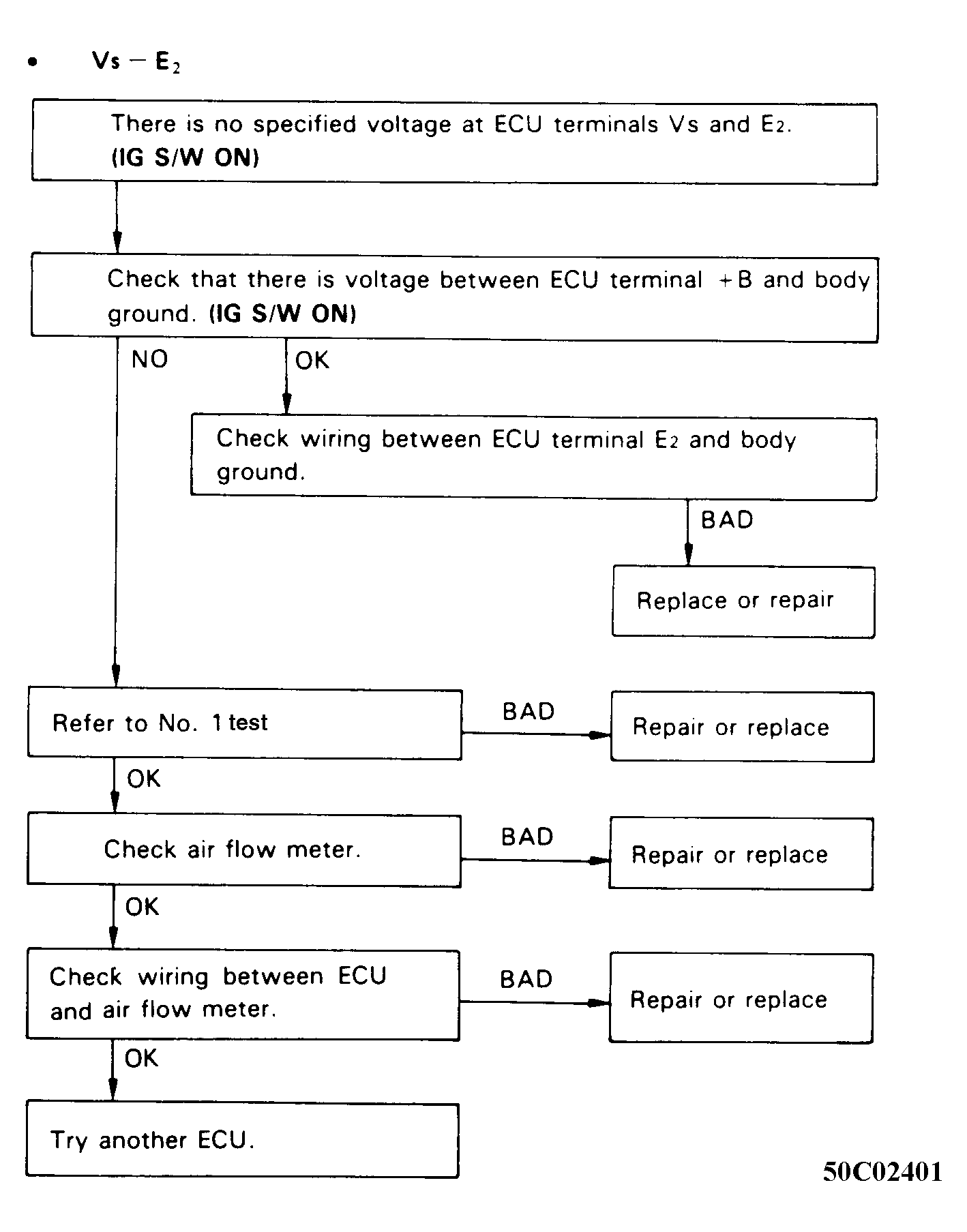

Fig 5: No. 5 Test, Airflow Meter Signal (Flow Chart 2 of 3)

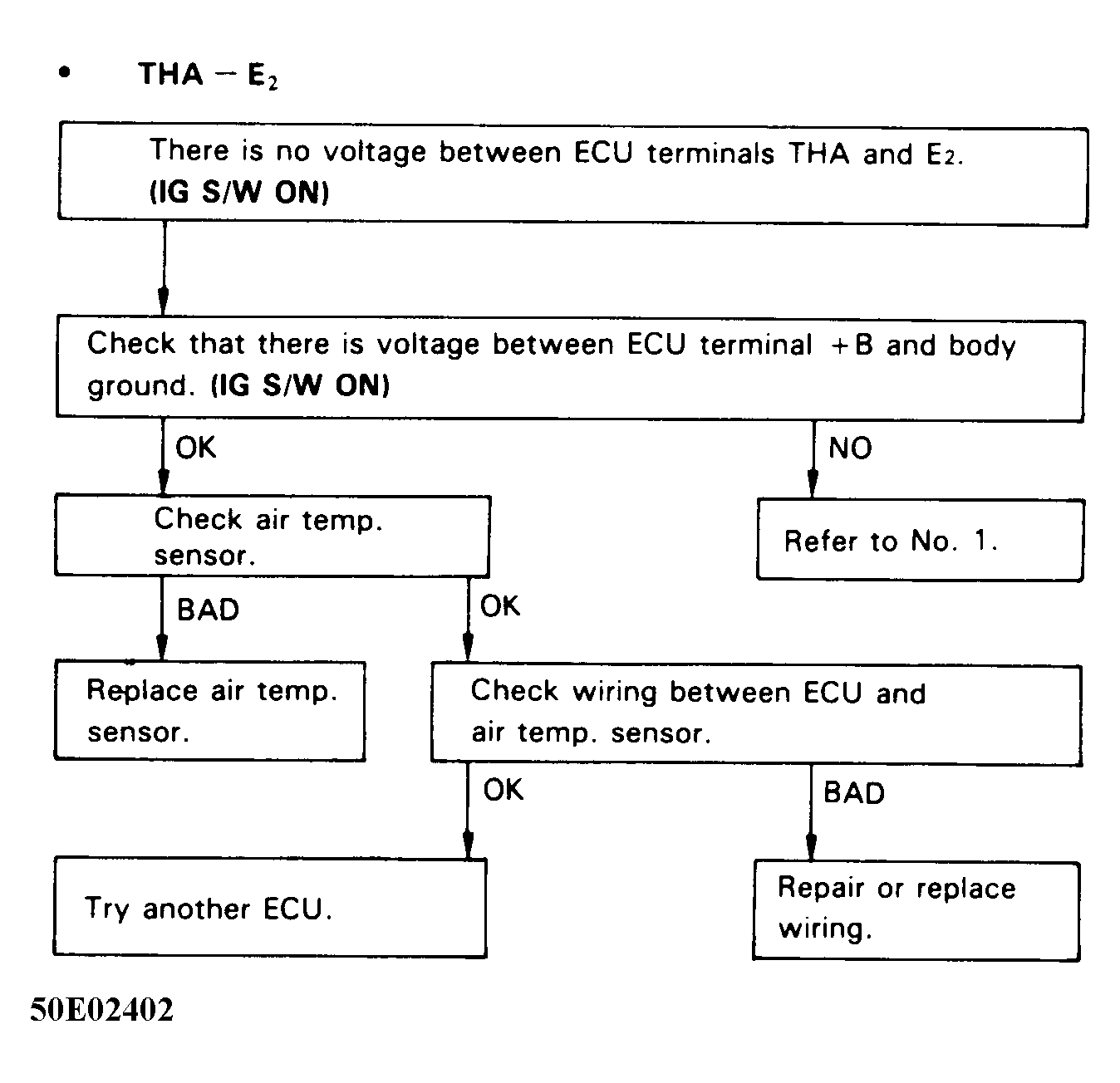

Fig 6: No. 5 Test, Airflow Meter Signal (Flow Chart 3 of 3)
