No. 7 Test, ISC Valve Signal

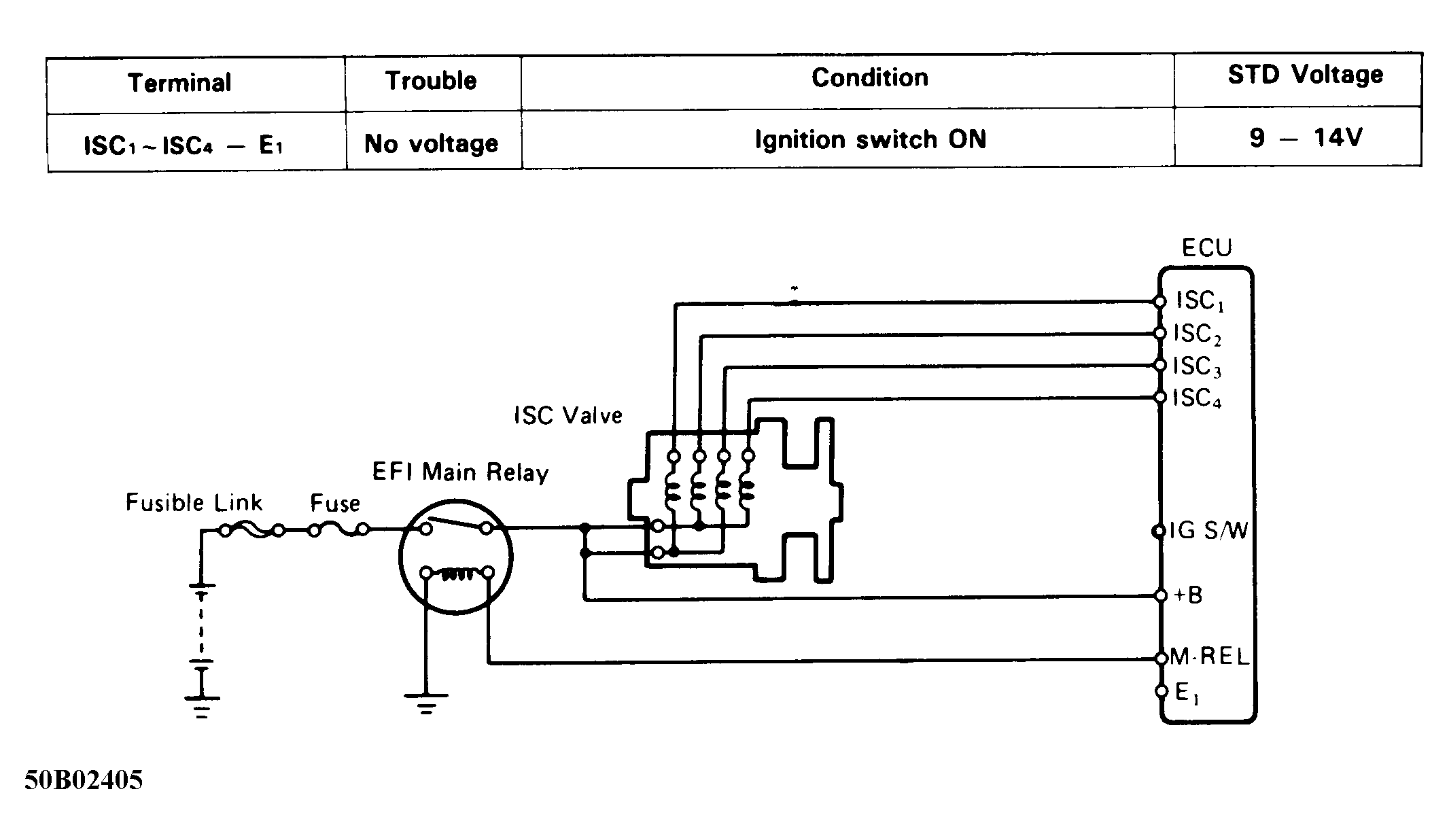

Fig 1: No. 7 Test, ISC Valve Signal, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: No. 7 Test, ISC Valve Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

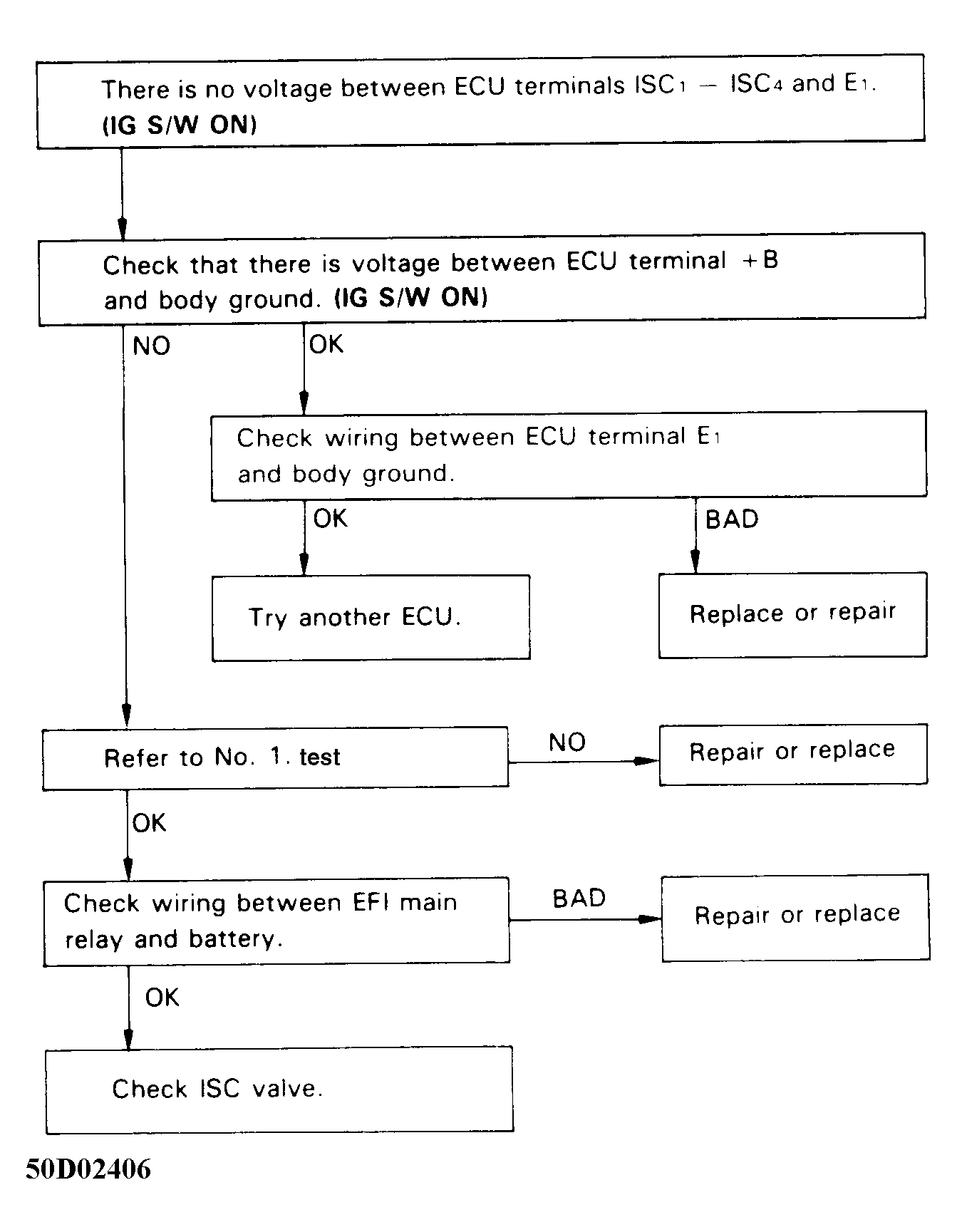

Fig 3: No. 7 Test, ISC Valve Signal, Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
