Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Back-Up Light Switch | On left side of transmission. See Figure. |

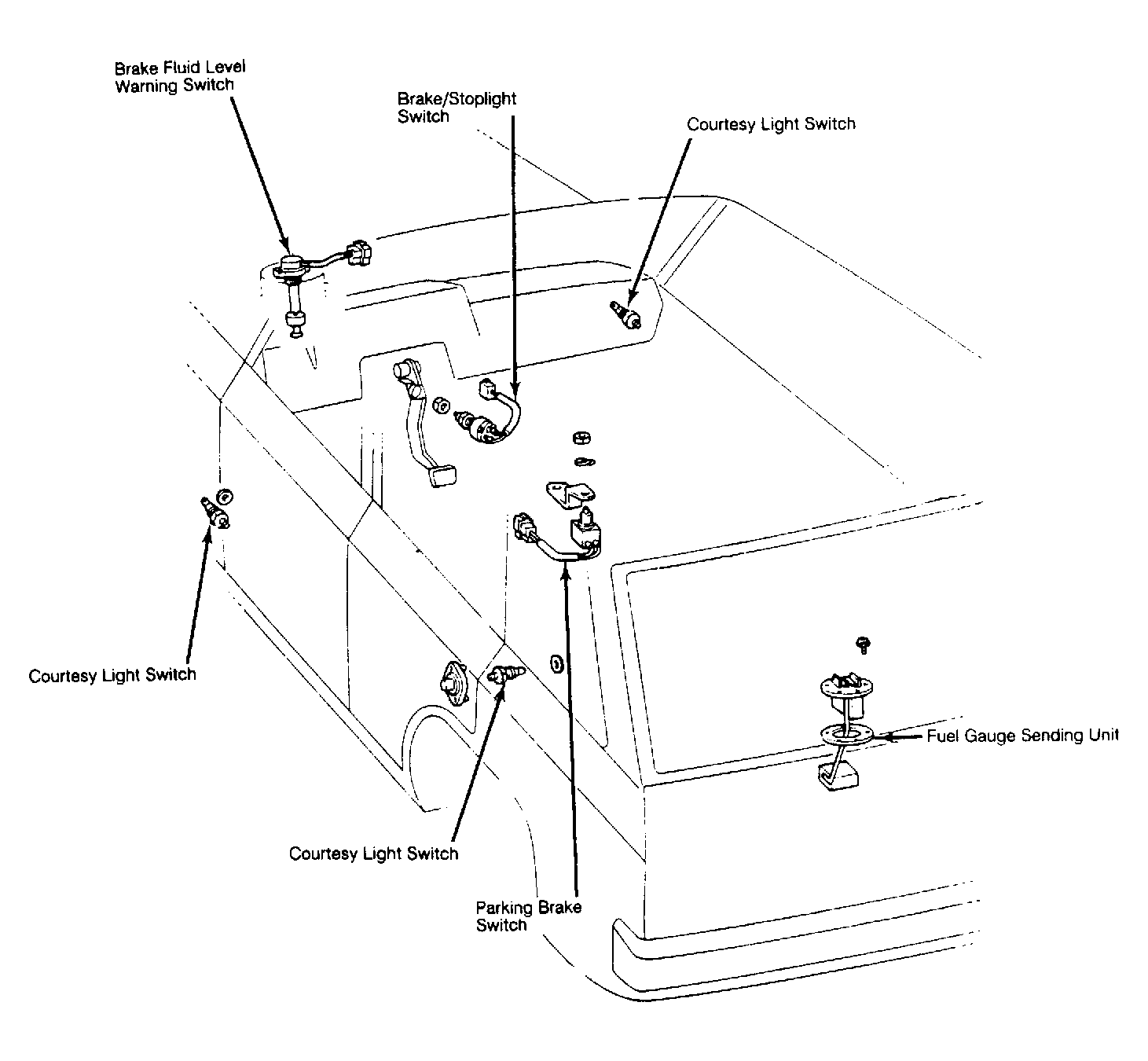

| Brake Fluid Level Warning Switch | In master cylinder reservoir cap. See Figure. |
| Brake/Stoplight Switch | Above brake pedal, on bracket. See Figure. |
| Cold Start Injector Time Switch | Front of engine, by thermostat housing. See Figure. |
| Coolant Temperature Switch | On thermostat housing. See Figure. |
| Courtesy Light Switches | At each door, including glove compartment. See Figure. |
| Electric Winch Magnetic Switch | On winch. |
| Parking Brake Switch | Below parking brake lever. See Figure. |
