No. 1 Test, Code 11, Ecu (+B) Circuit

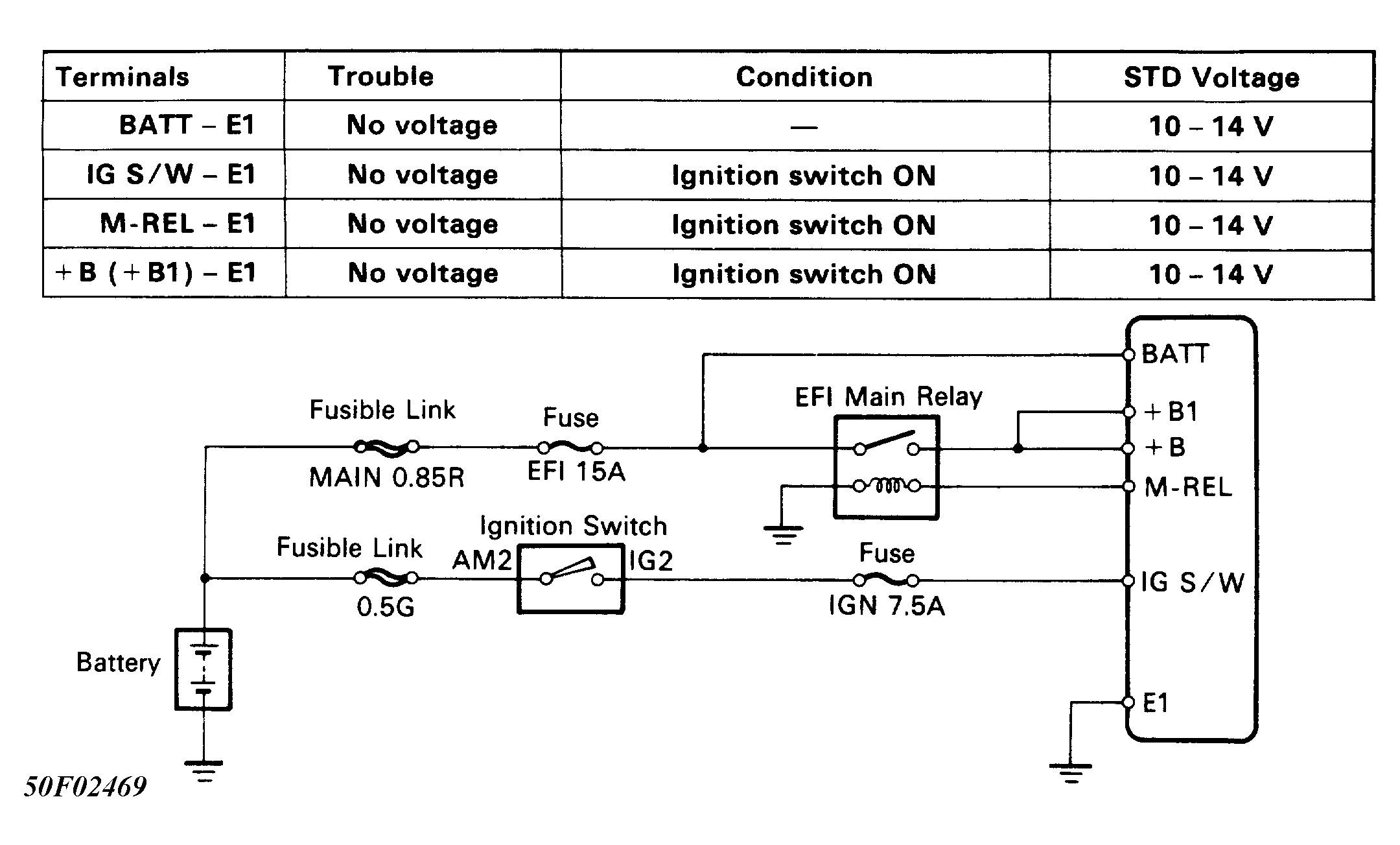

Fig 1: No. 1 Test, Code 11, ECU (+B) Circuit, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

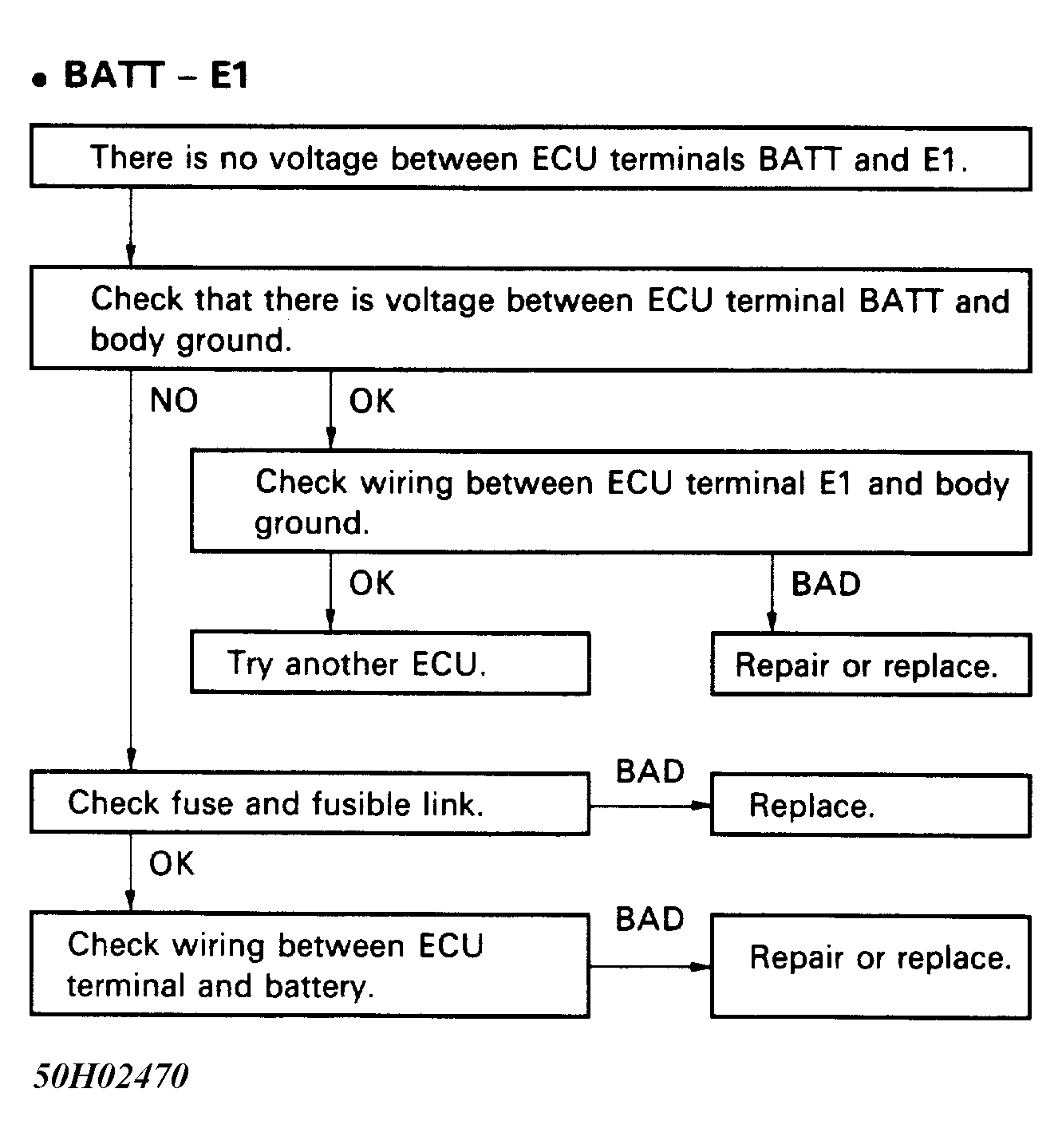

Fig 2: No. 1 Test, Code 11, ECU (+B) Circuit, Flow Chart (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

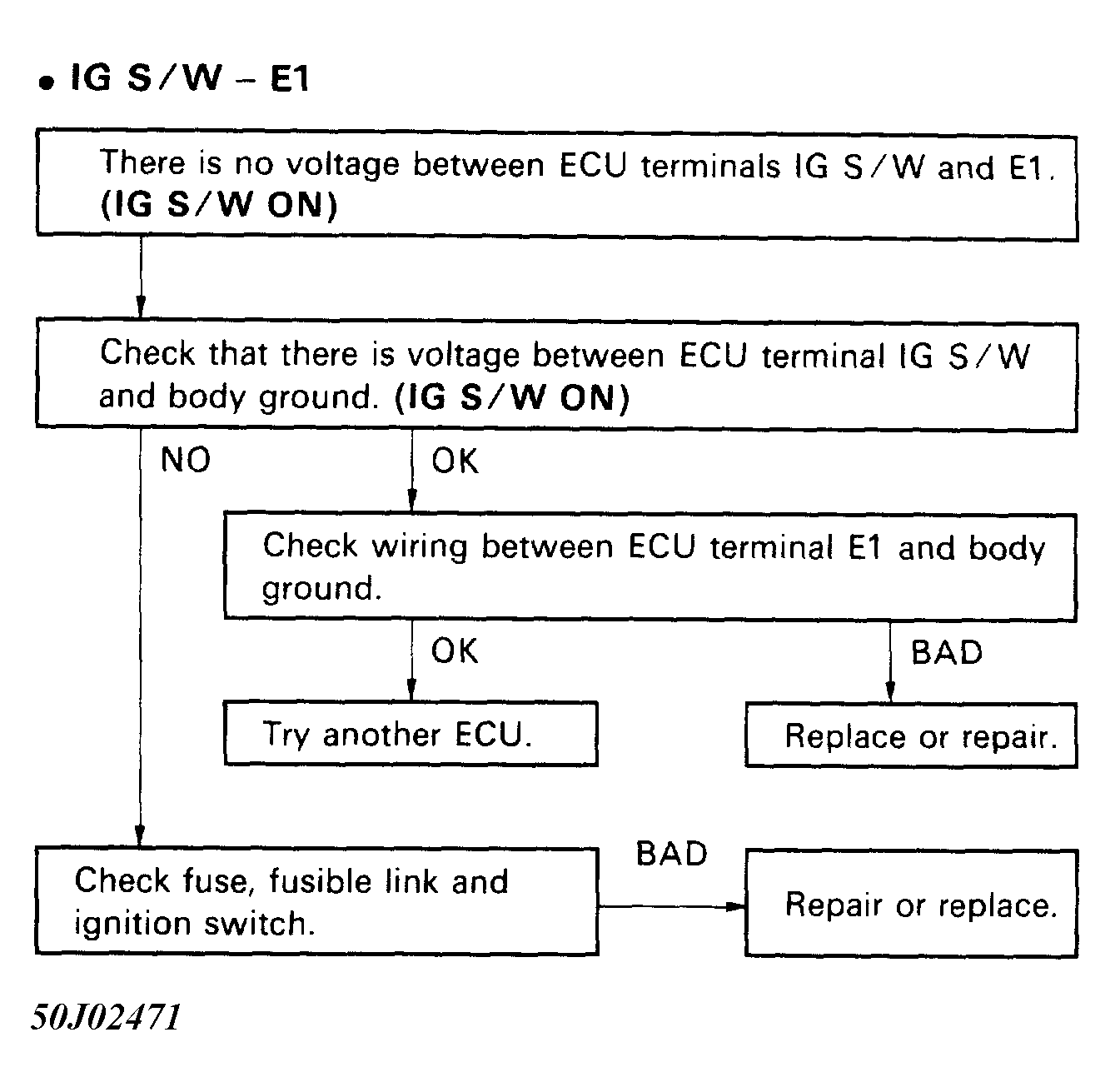

Fig 3: No. 1 Test, Code 11, ECU (+B) Circuit, Flow Chart (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

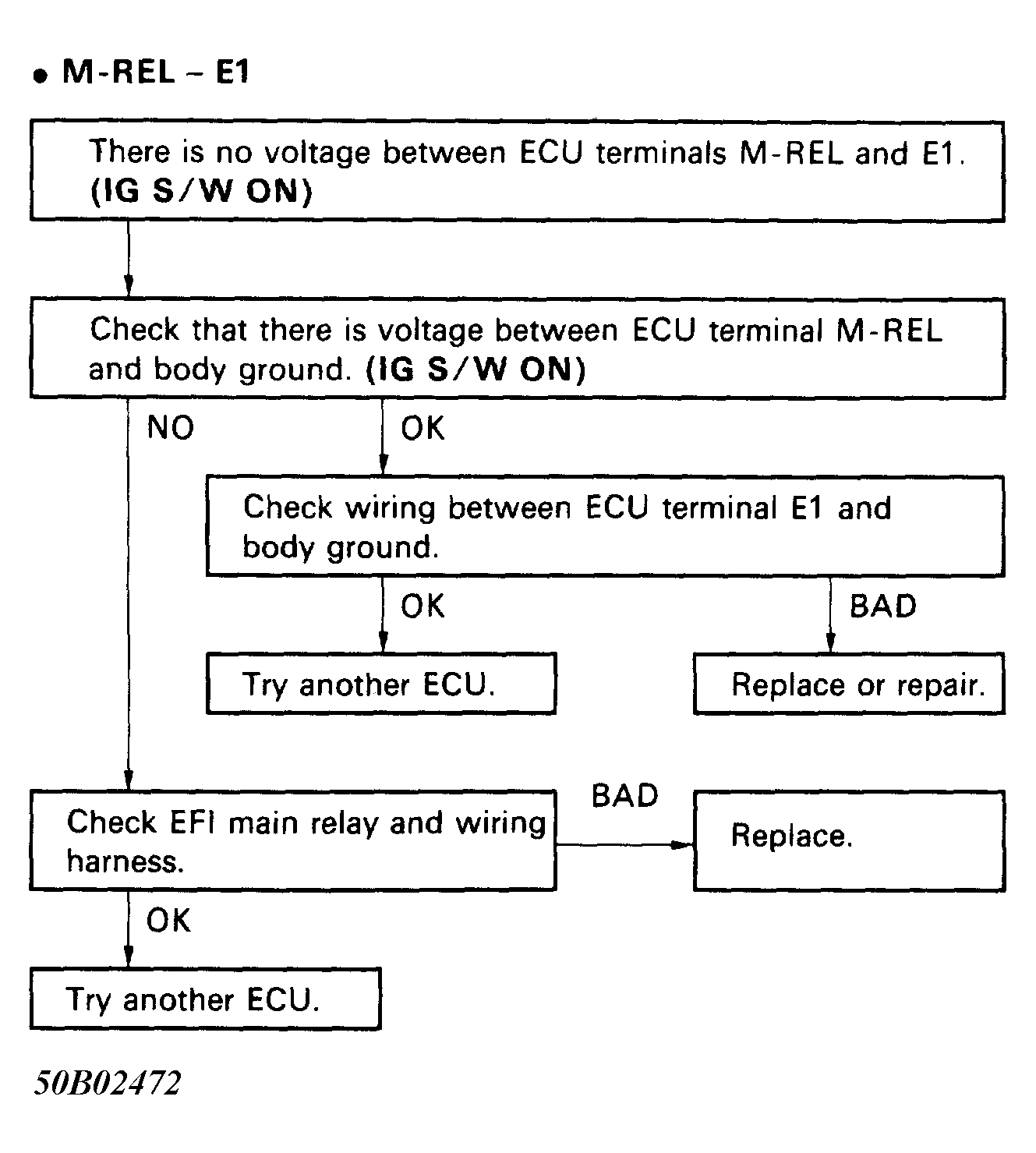

Fig 4: No. 1 Test, Code 11, ECU (+B) Circuit, Flow Chart (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
