No. 11 Test, "Check Engine" Light Test

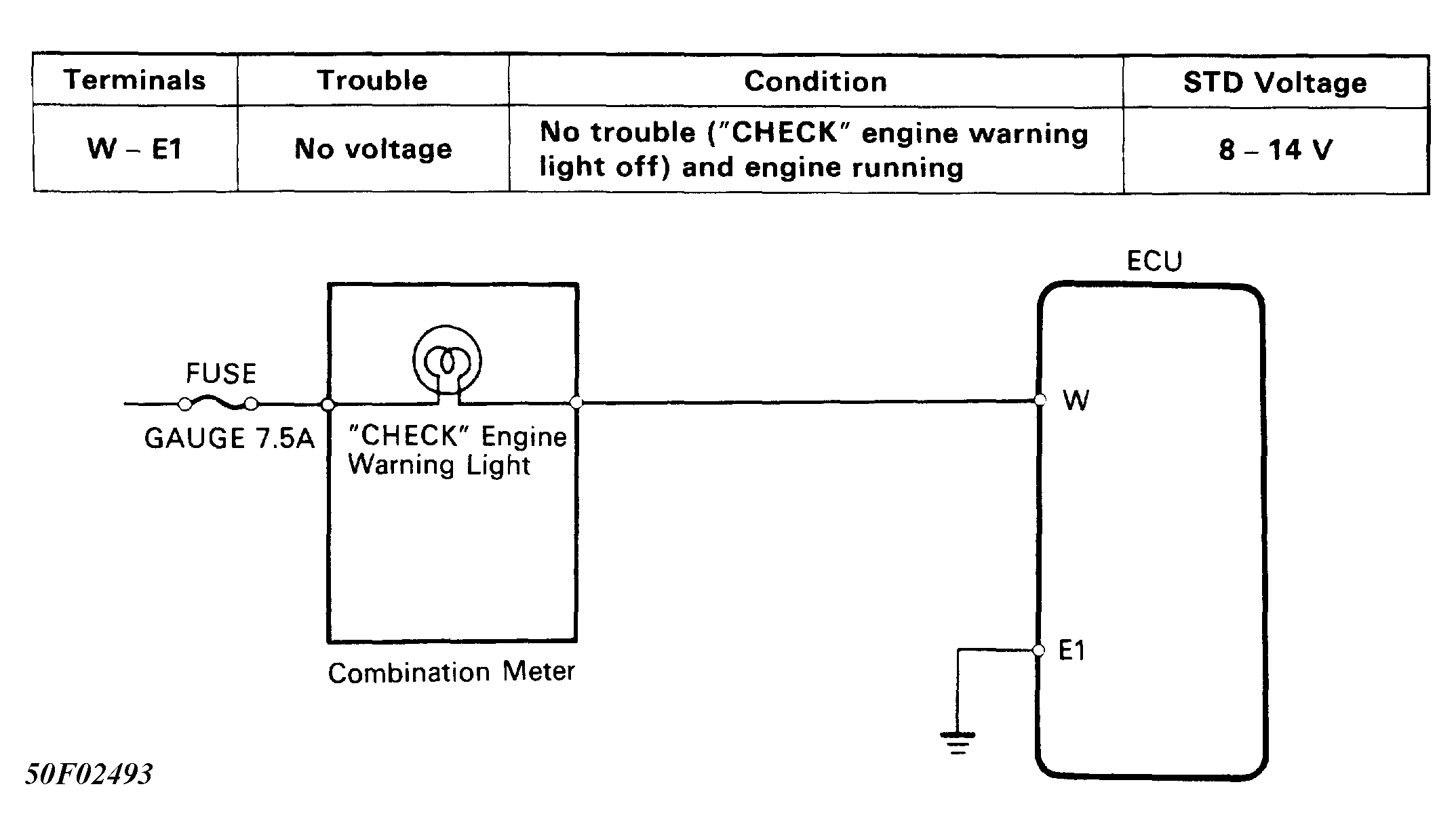

Fig 1: No. 11 Test, "CHECK ENGINE" Light Test, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

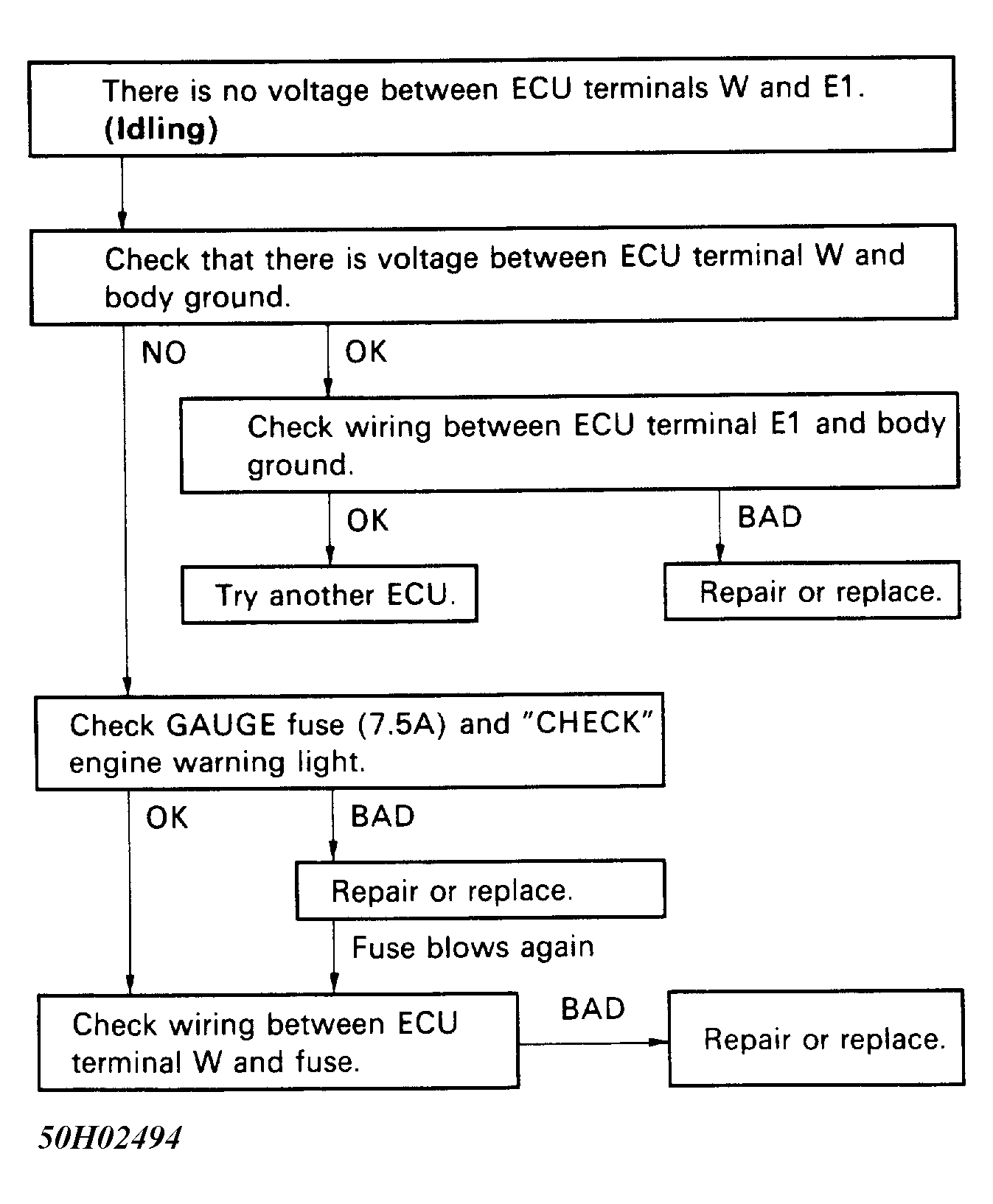

Fig 2: No. 11 Test, "CHECK ENGINE" Light Test, Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
