No. 12 Test, Ecu Power Source

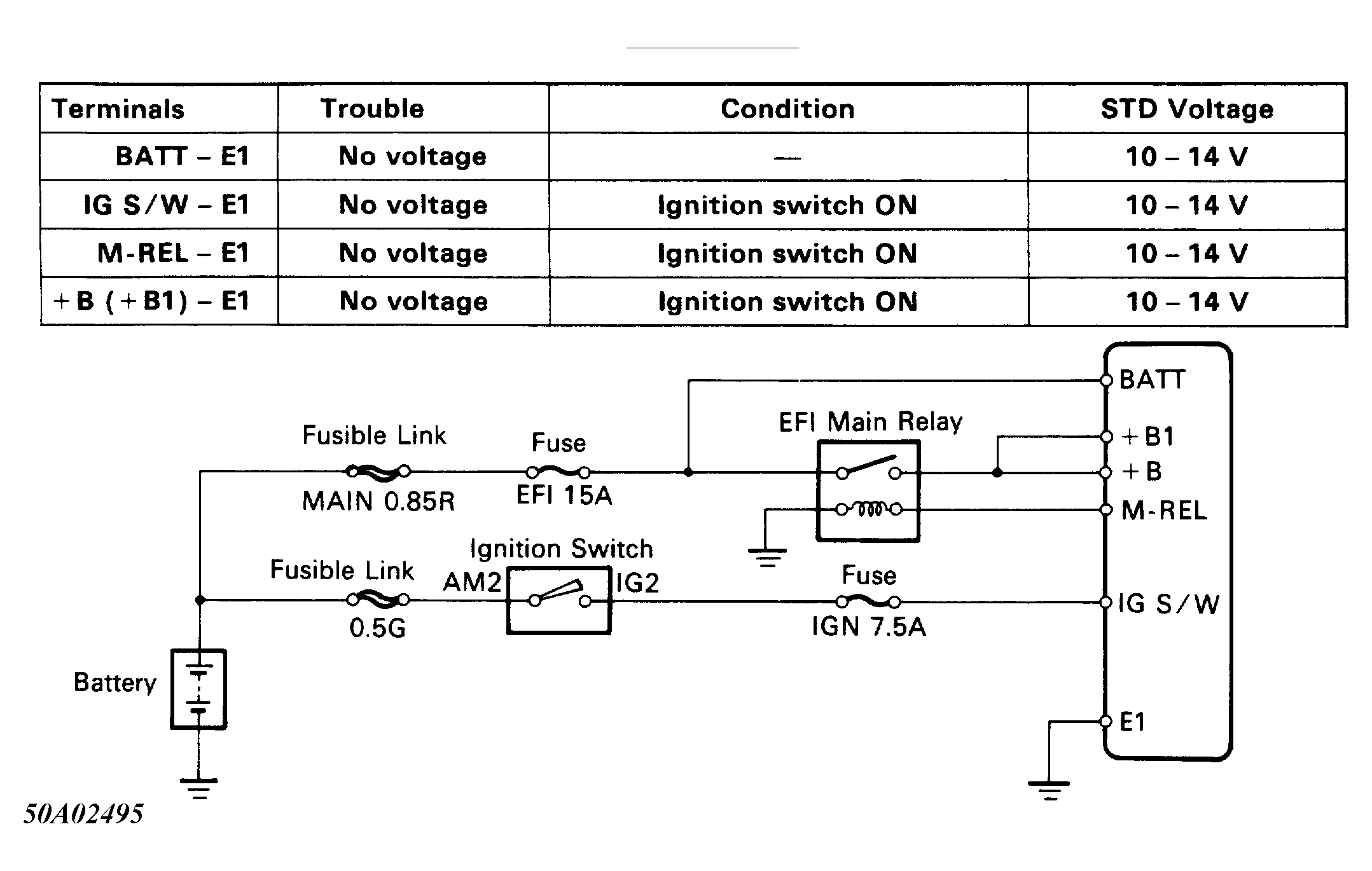

Fig 1: No. 12 Test, ECU Power Source, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

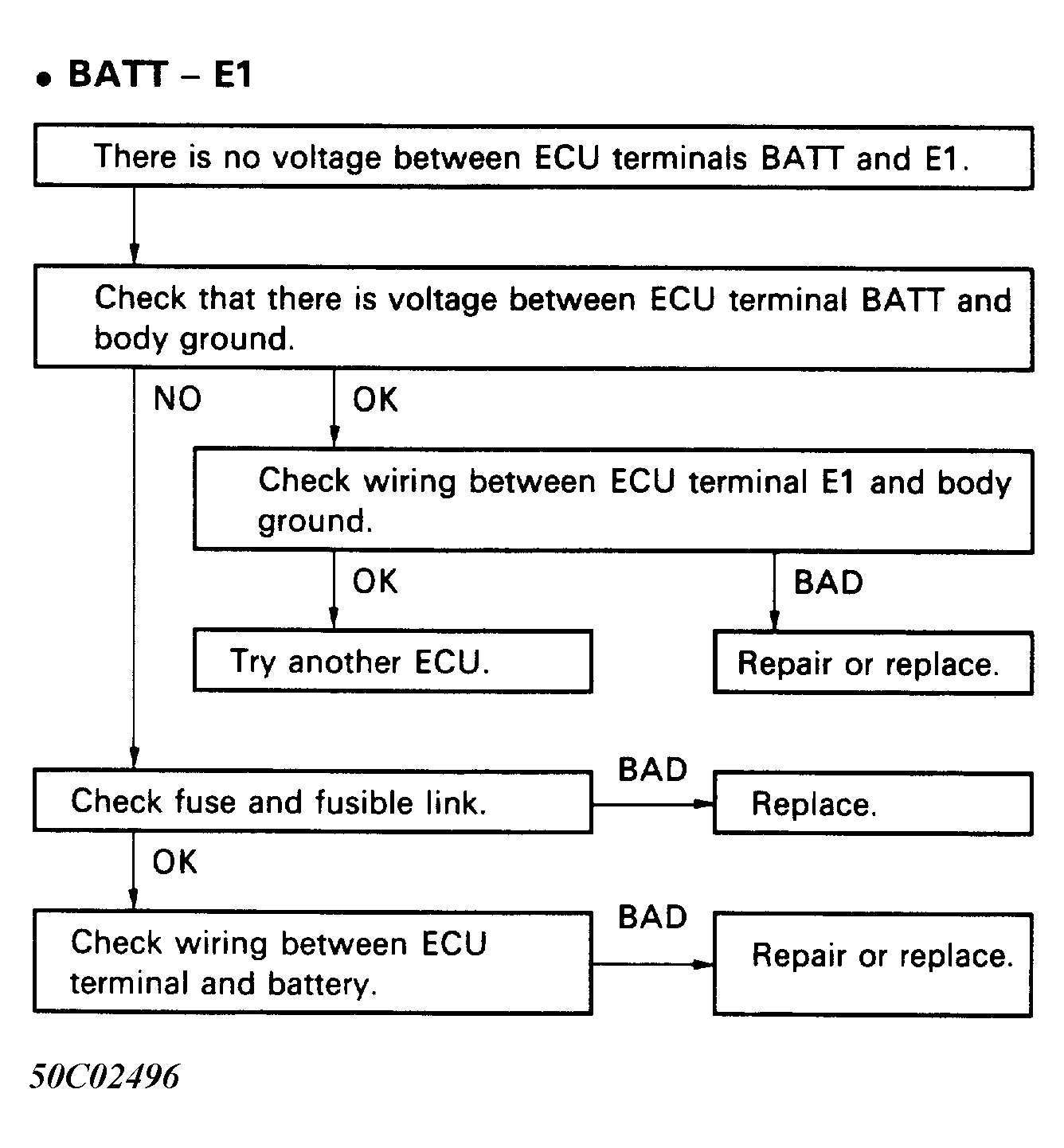

Fig 2: No. 12 Test, ECU Power Source, Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
