No. 15 Test, Injector Circuit Test

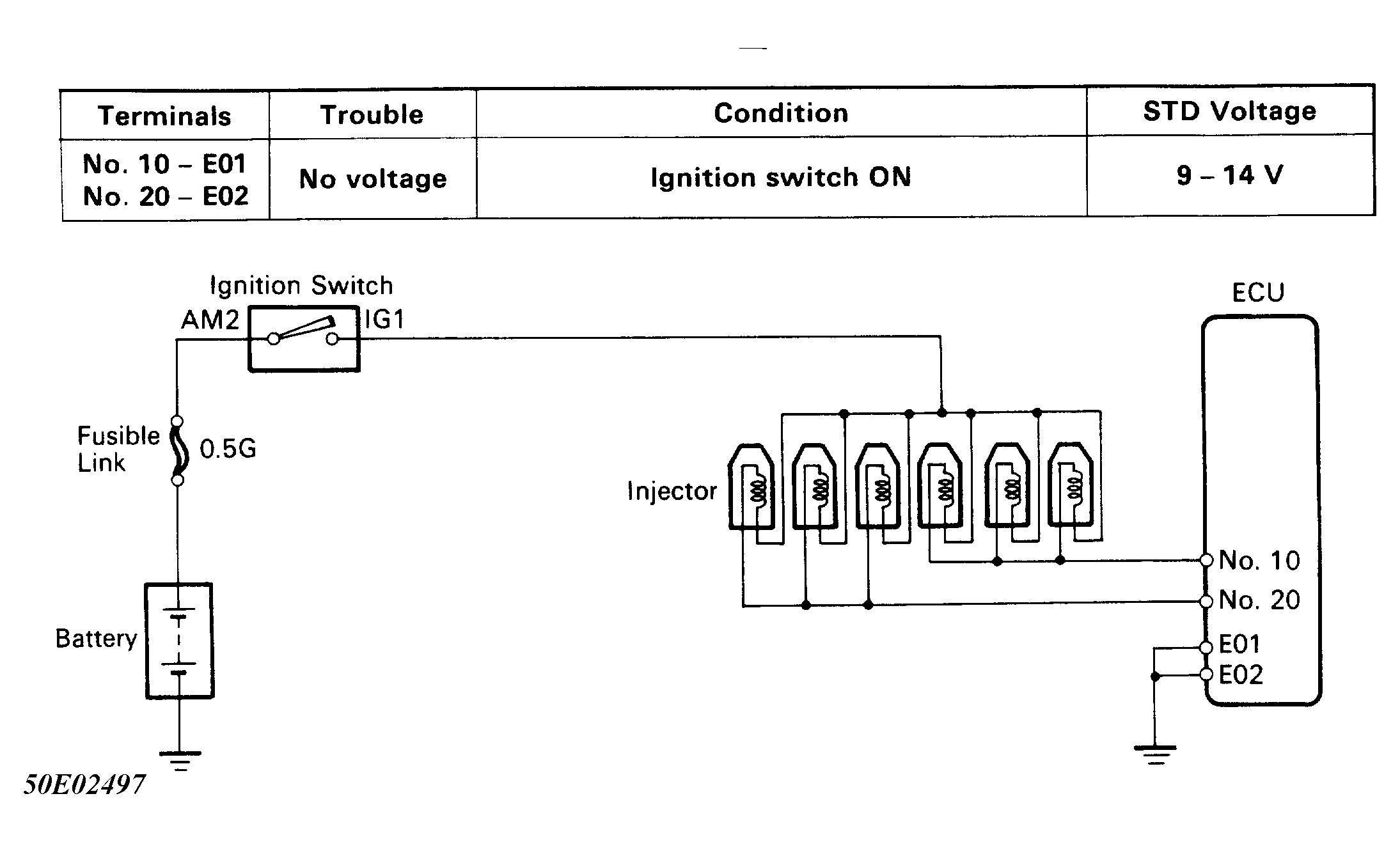

Fig 1: No. 15 Test, Injector Circuit Test, Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

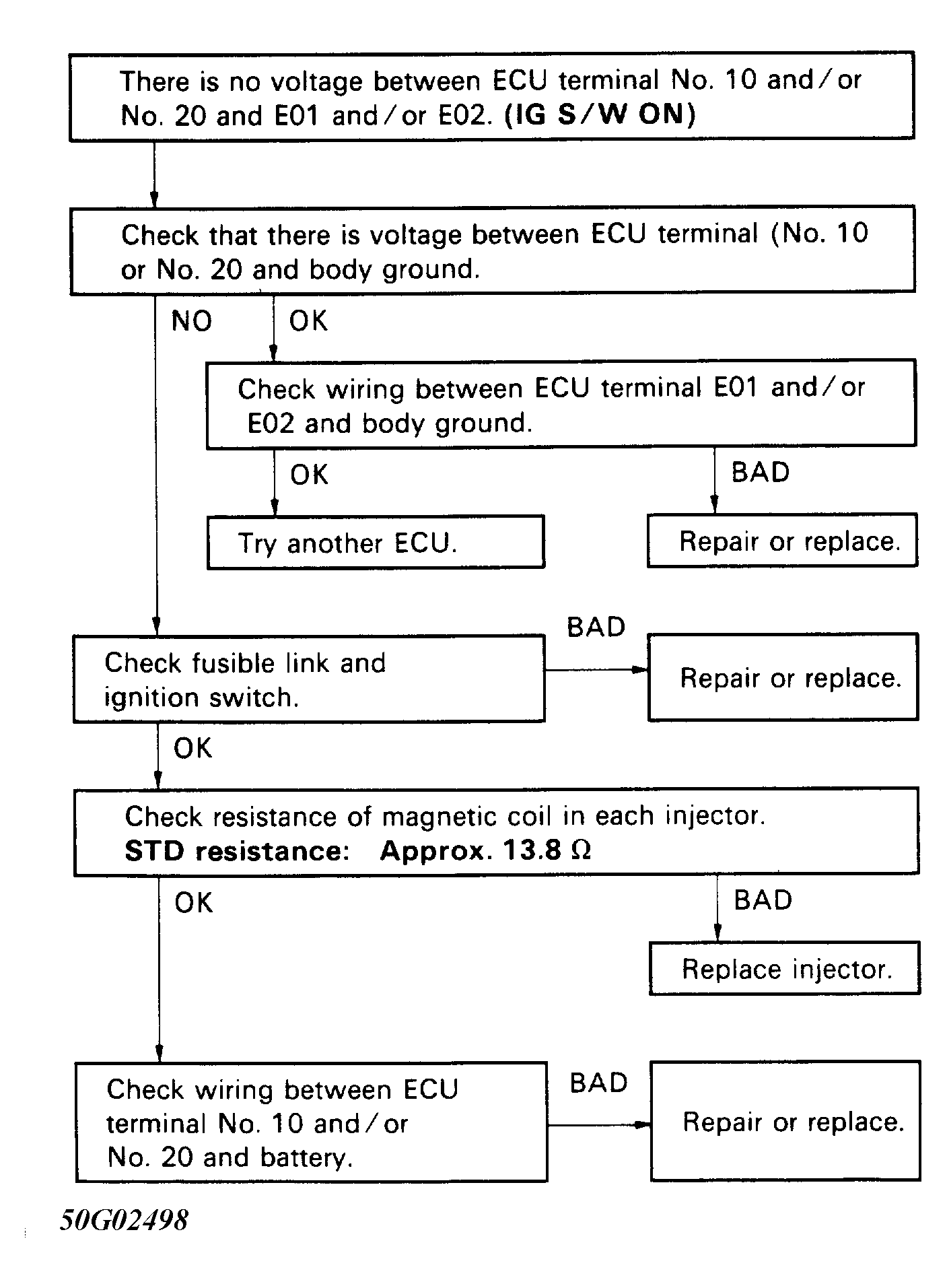

Fig 2: No. 15 Test, Injector Circuit Test, Flow Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
